Powerful drum milling machine with brushless technology, high torque and precise depth adjustment.
2.188,00 €

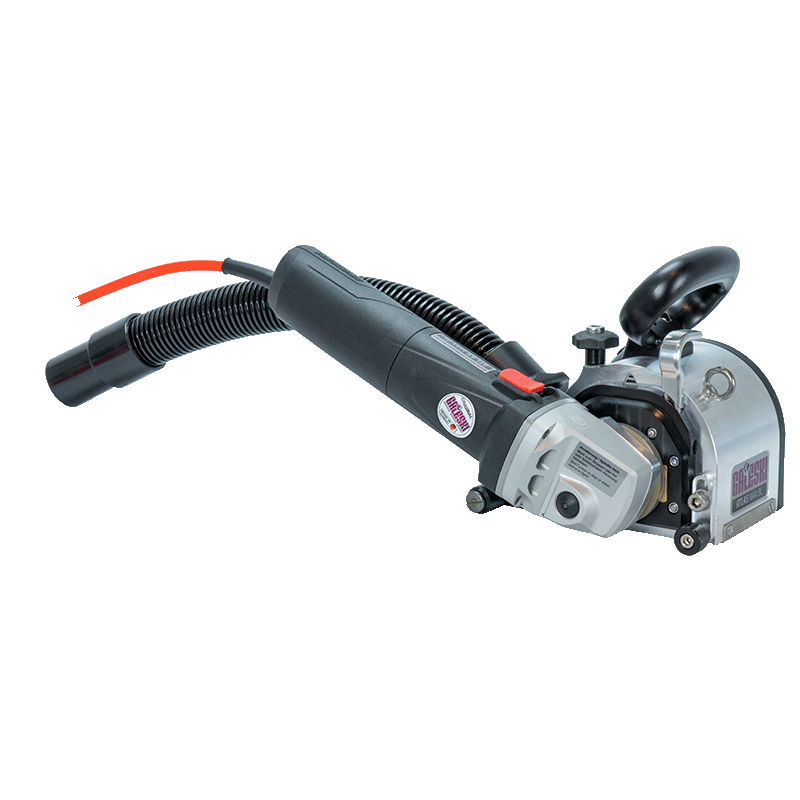

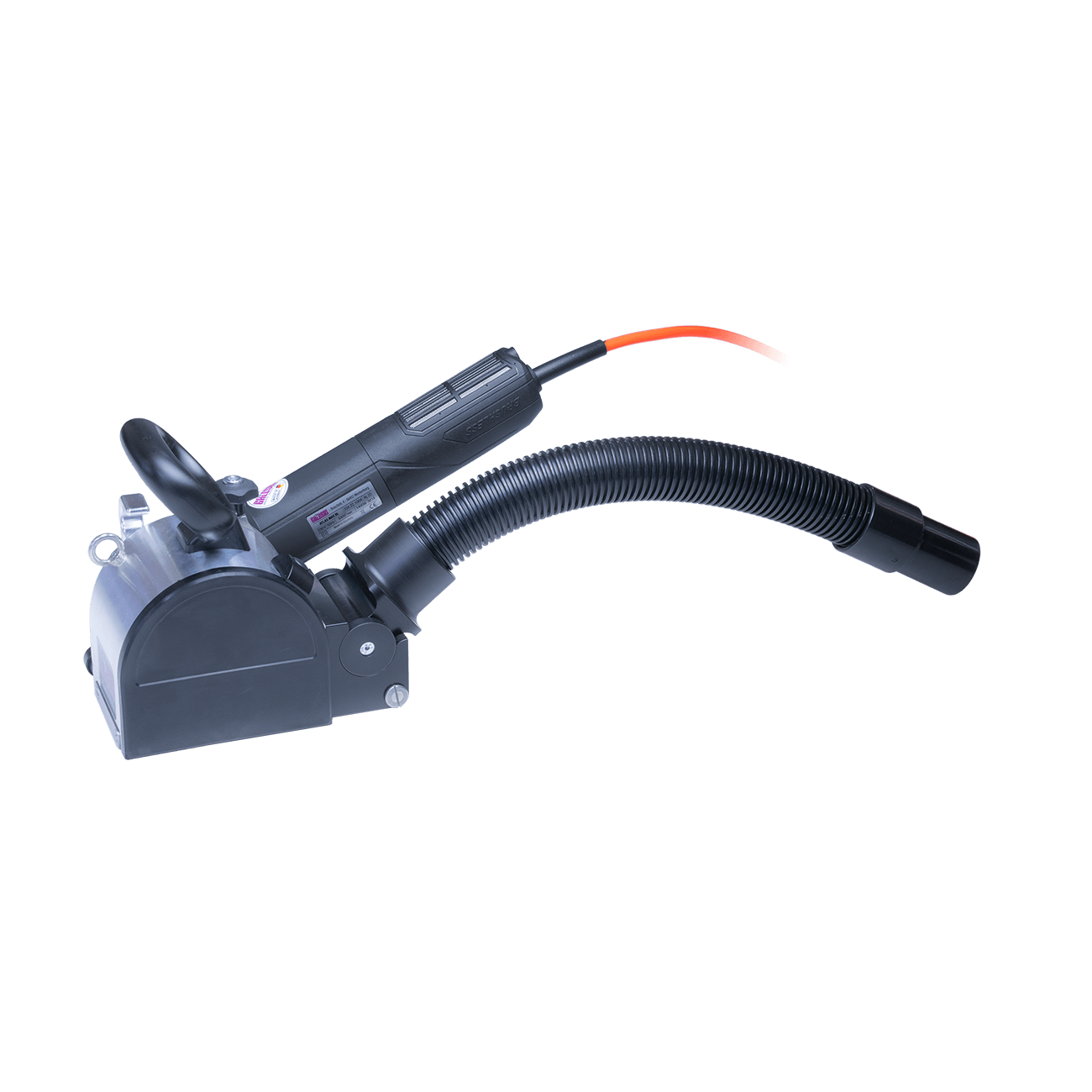

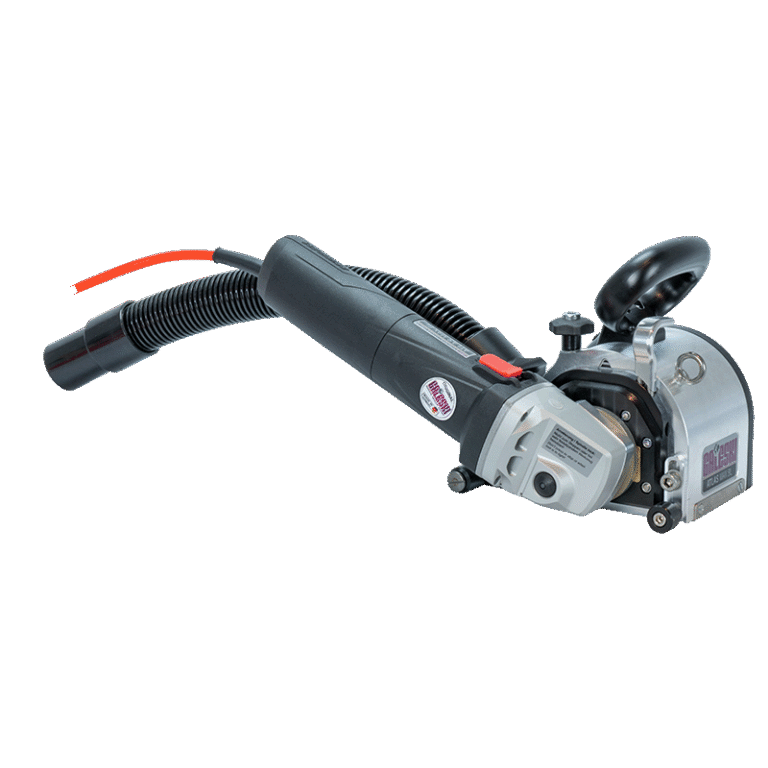

The ATLAS MAX BL is a compact, high-performance drum milling machine for precise coating removal in interior fitting and renovation work. The modern brushless motor delivers powerful, constantly available output, while the exact depth adjustment allows a defined removal of 0 to 10 mm. The design of the milling drum directs the removed material straight towards the extraction port, which significantly reduces dust and supports clean working. At the same time, the adjustable machine body allows near-wall, ergonomic milling even in demanding areas. For floor and hazardous-material renovators, painters and plasterers, the ATLAS MAX BL is a reliable solution for fast, controlled and efficient material removal.
The maintenance-free magnet motor without carbon brushes delivers more torque, works with high efficiency and stays cool even under full load. Ideal for intensive continuous use.
The exact depth adjustment and PCD milling technology enable controlled removal without grinding – perfect for coatings, adhesive residue and hard substrates.
The milling drum throws the removed material straight towards the extraction port. This ensures significantly better extraction results and a clean work environment.
The machine body can be adjusted almost steplessly, even past vertical, while working – ideal for edge-close or hard-to-reach areas.
Floor renovators, general and hazardous-material renovators, painters and plasterers, interior fitting, etc.
Voltage: 230 V
Working depth: 0–10 mm
Power input: 1,400 W
Tool mount: M14
Speed: 6,400 rpm
Weight: 4.9 kg
Working width max.: 82 mm
Tool Ø max.: 98 mm
Soft start
Restart cutout
1x silicone mains cable 4 m, 1x guard with flexible extraction hose,
1x connector for vacuum cleaner
1x pin wrench
1x 6 mm Allen key,
1x case
ATLAS Milling Drum Diamond Blue
(Varianten)
Diamond milling drum Ø82 mm with soft bond for coatings under 2 mm and mineral floors.
584,00 €
ATLAS Milling Drum Diamond Red
(Varianten)
Diamond milling drum Ø82 mm with medium bond for concrete, old concrete and screed.
584,00 €
ATLAS Milling Drum Hybrid Grey
(Varianten)
Diamond milling drum Ø82 mm with hard bond for coatings, sealants and adhesive residues.
636,00 €
ATLAS Milling Drum PCD Black
Art.Nr.: 150.010.201
Diamond milling drum Ø82 mm with PCD bond for hard coatings, sealants and industrial floors.
698,00 €
ATLAS Milling Drum Diamond Rib Form
Art.Nr.: 150.010.214
Diamond milling drum 82 mm in rib form with medium bond — for precise grooving in concrete and mineral floors at a high rate of progress.
669,00 €
ATLAS Milling Drums
(Varianten)
Diamond milling drums Ø82 mm for dry grinding — matched to ATLAS drum milling machines, for coating removal, floor preparation and grooving.
From: 584,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: removal of tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. Intended for dry use only – never operate with water supply. Metals must not be processed.
Personal protective equipment must be worn during operation: depending on the application, full face protection, eye protection or safety goggles; where appropriate, a dust mask, hearing protection, protective gloves and a special apron.
Noise emission: sound pressure level 83.6 dB(A), sound power level 94.6 dB(A) – hearing protection required. Vibration: 9.5 m/s².
Dust produced when working stone (crystalline silica) is hazardous to health. Toxic or asbestos-containing materials (e.g. PCB, asbestos, bitumen/PAH) may only be processed by specially trained personnel for remediation purposes. Only carry out milling work with a suitable vacuum cleaner with a matching filter connected.
Sockets in damp rooms and outdoors must be equipped with a residual-current device (RCD/PRCD).
Not suitable for use by children.
For complete safety instructions, see the original operating instructions.
