No plug. No problem.
Galeski machines with compressed-air drive for grinding, polishing, drilling, cutting and milling – wet and dry, developed and built by Galeski Manufaktur in Westerburg, Germany.

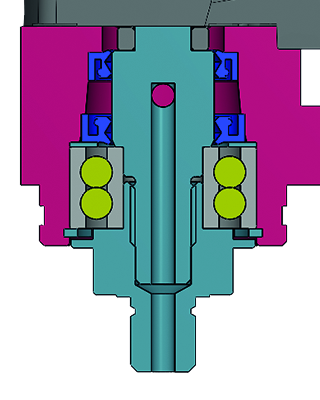

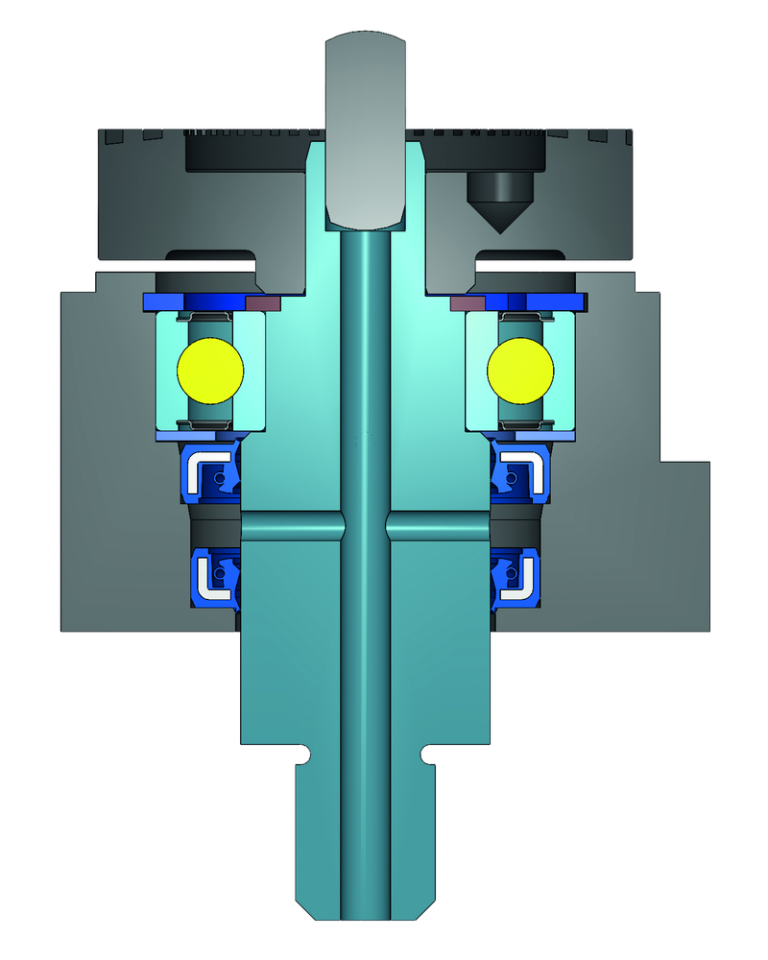

Sectional drawings from the catalogue. The bearing decides how much continuous load the machine can take.
Ball-bearing spindle mounting in the rinsing head, with water seals underneath.
Images and bearing texts from catalogue p. 23.
From the compressed-air system to the machine – each station decides whether full power arrives.
6 bar operating pressure, approx. 1,200 L/min for each connected AIR machine.
Water separator and filter for dry, pure air; set the pressure.
Oiled air with exact dosage: max. 5 drops per m³ air/min.
Inner Ø 9 mm. 3 m included, 5 m and 10 m as accessories.
Up to 20 L/s air consumption. Perfected silencer technology, exhaust to the rear.
Most AIR machines have an electric counterpart of similar design. What differs:
| Compressed air | Electric | |
|---|---|---|
| Drive | Compressed air, operating pressure 6 bar | Mains power |
| Requirement | Compressor with approx. 1,200 L/min per machine and air preparation | Socket |
| Speed | fixed per model: 2,000, 3,400 or 5,400 rpm | per model constant or Vario in 7 steps |
| Wet work | no electricity at the machine | with personal protection switch (PRCD) |
| Connection included | Air hose 3 m, inner Ø 9 mm | Power cable 4 m |
Electric series:GeniusPolifoxJokerATLAS
Comparison based on shop and catalogue data, general wording.
A new generation of pneumatic machines with an excellent ratio of size to power – extra strong and extra compact.
The machines run on compressed air. There is no electricity at the machine when grinding, polishing or cutting wet.
Excellent ratio of size to power: 800 to 950 watts power output.
Great for precision work, full power for rough work.
Robust yet compact design, ball-bearing spindle for high loads.
Perfected silencer technology for comfortable, safe work.
The exhaust air is ducted to the rear.
For easy tool changes – on all air machines.
AIR machines run at a fixed speed. It tells you what a machine is built for.
Tools up to Ø 130 and 150 mm, for heavy continuous loads.
The highest speed of the air grinders – tools up to Ø 100 mm.
Highest speed of the AIR series with high torque – tools up to Ø 125 mm.
plus shipping. Values according to the technical data in the shop; weight of some models incl. hoses.
Values according to the technical data in the shop; weight of some models incl. hoses.
The quality and the amount of air supplied have a direct effect on the reliability and the power of all pneumatic machines. If the air preparation does not meet the required standards, the machine cannot give full power.
Air quality criteria for our power machines:
6 bar
approx. 1,200 L/min for each connected AIR machine
max. 5 drops per m³ air/min
using a water separator
perhaps by fitting an additional fine filter
According to the catalogue suitable for all AIR machines. Not yet available in the shop – we are happy to advise you.
2-piece, consisting of filter regulator and air line lubricator, flow rate 1,830 L/min, connection 1/2"
Proportional oiler with needle valve for oil dosage, flow rate 4,330 L/min, connection 1/2"
With coupling and plug-in nozzle, transparent, operating pressure 20 bar, inner Ø 9 mm
For air line lubricators and air service units
