Compressed-air drum milling machine with increased speed and high torque for dry milling work – very low dust in combination with a vacuum cleaner.
2.423,00 €

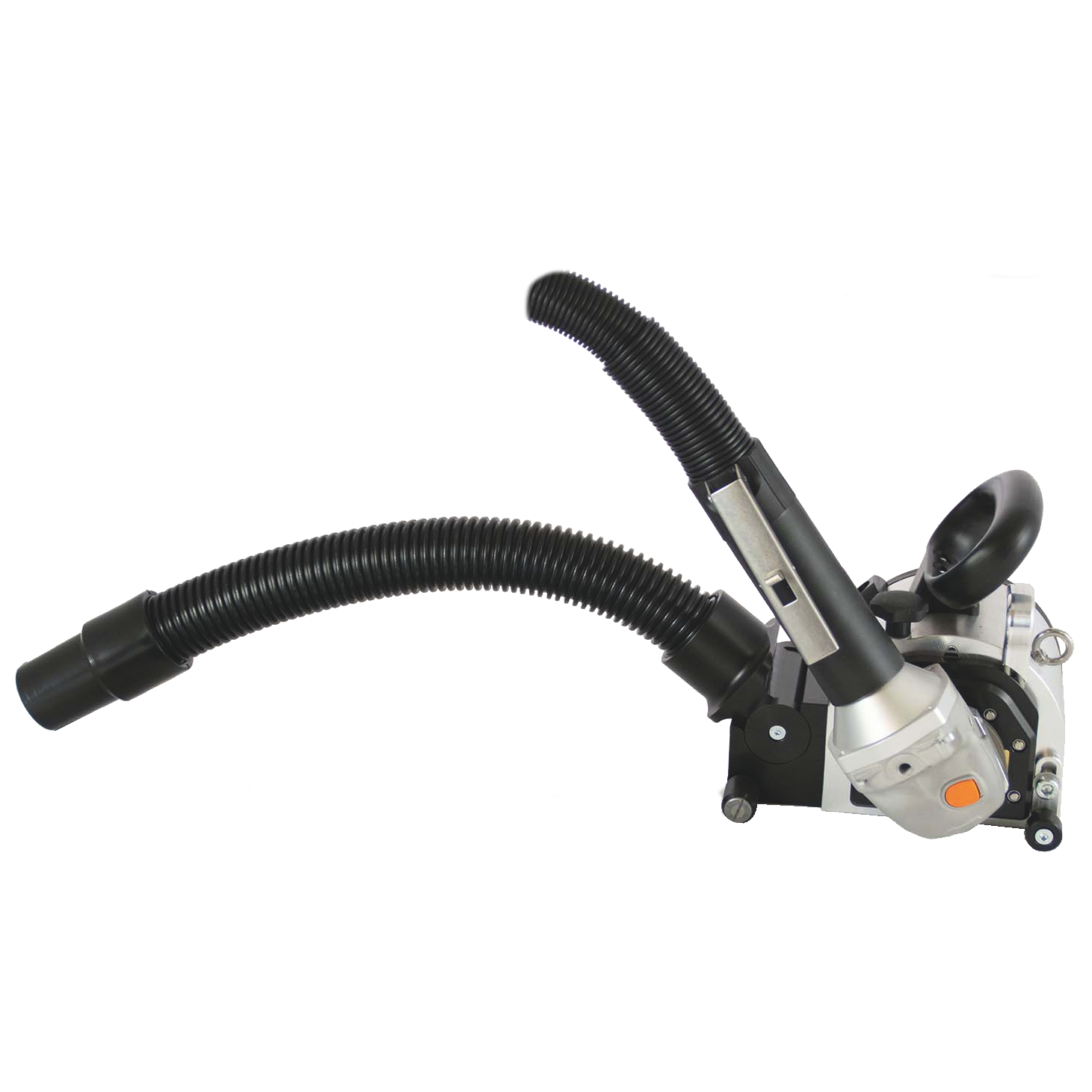

The AIR ATLAS PRO is a compressed-air drum milling machine from the new generation of GALESKI AIR machines – with increased speed and high torque for dry milling work. It runs entirely on compressed air and requires no electricity.
By design, the machine works with very low dust in combination with a vacuum cleaner. With 82 mm working width and 0–10 mm working depth, it efficiently removes adhesives, coatings, filler compounds, paints and render – sensitive in precision work, with full pulling force in rough operation.
The version without an adjustable machine body – for renovators, floor renovators and interior fit-out professionals looking for a rugged compressed-air milling machine.
Low-dust milling by design in combination with a vacuum cleaner.
Increased speed and high torque – no power connection at all.
Working depth 0–10 mm for efficient removal.
Exhaust air directed to the rear for controlled working.
Compressed-air drum milling machine for removing tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. Particularly suitable for renovators, floor renovators and interior fit-out. For dry use only, with a vacuum cleaner.
Power output: 900 W
Air consumption max.: 20 l/s
Speed: 5,400 rpm
Working width max.: 82 mm
Tool Ø max.: 98 mm
Working depth: 0–10 mm
Spindle thread: M14
Weight: 3.2 kg
1 x air hose 3 m, inner Ø 9 mm, with brass quick coupling
1 x guard with rotatable, flexible extraction hose
1 x vacuum cleaner connector
1 x pin spanner
1 x flange nut with locking screw
1 x Allen key 6 mm
1 x D-handle
in a box
ATLAS Milling Drum Diamond Blue
(Varianten)
Diamond milling drum Ø82 mm with soft bond for coatings under 2 mm and mineral floors.
584,00 €
ATLAS Milling Drum Diamond Red
(Varianten)
Diamond milling drum Ø82 mm with medium bond for concrete, old concrete and screed.
584,00 €
ATLAS Milling Drum Hybrid Grey
(Varianten)
Diamond milling drum Ø82 mm with hard bond for coatings, sealants and adhesive residues.
636,00 €
ATLAS Milling Drum PCD Black
Art.Nr.: 150.010.201
Diamond milling drum Ø82 mm with PCD bond for hard coatings, sealants and industrial floors.
698,00 €
ATLAS Milling Drum Diamond Rib Form
Art.Nr.: 150.010.214
Diamond milling drum 82 mm in rib form with medium bond — for precise grooving in concrete and mineral floors at a high rate of progress.
669,00 €
ATLAS Milling Drums
(Varianten)
Diamond milling drums Ø82 mm for dry grinding — matched to ATLAS drum milling machines, for coating removal, floor preparation and grooving.
From: 584,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: removing tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. For dry use only – never operate with water supply, do not process wet materials. Metals must not be processed. Only use milling drums approved or licensed by GALESKI.
Personal protective equipment must be worn during operation: depending on the application, full face protection, eye protection or safety goggles as well as hearing protection; where appropriate, a dust mask, protective gloves or a special apron. The dust or respirator mask must filter the dust produced.
Noise emission: sound pressure level 81 dB(A), sound power level 92 dB(A) (EN ISO 15744) – hearing protection required. Vibration: 13.4 m/s² (EN ISO 8662).
Only operate with oiled and dried compressed air (air quality to DIN ISO 8573-1 class 3/5/4); maximum operating pressure 6 bar, see rating plate.
The machine provides no insulation in the event of contact with electrical cables.
Only carry out milling work with a suitable vacuum cleaner with a matching filter connected.
Dust produced when working stone containing crystalline silica is hazardous to health. Toxic or asbestos-containing materials (e.g. PCB, asbestos, bitumen/PAH) may only be processed by specially trained personnel for remediation purposes.
For complete safety instructions, see the original operating instructions.
