Brushless drum milling machine for precisely defined removal of coatings, adhesives and render – 82 mm working width, 0–8 mm working depth, very low dust.
1.842,00 €

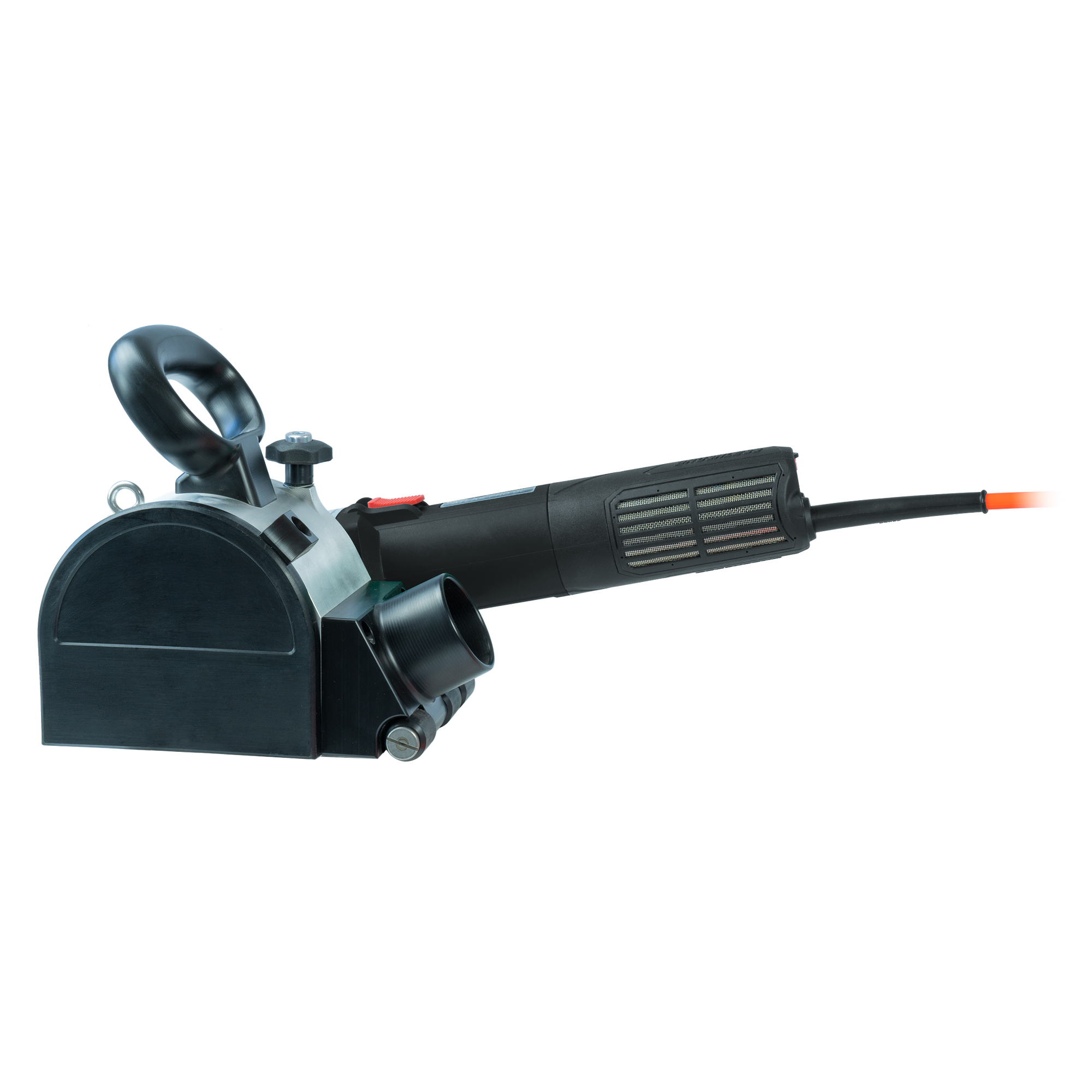

The ATLAS PRO 82 BL is the hand-held milling cutter for removing mineral materials, tile adhesives, coatings, filler compounds, adhesives, paints and render – with a modern brushless magnetic motor. Without carbon brushes, the motor delivers more torque, up to 30 % higher efficiency and significantly less heat; the slim design allows low-fatigue work.
By design, the ATLAS works with very low dust: the drum rotation throws the removed material precisely towards the extraction. With a PCD milling drum, the surface is peeled off rather than ground, and the exact depth adjustment from 0 to 8 mm ensures precisely defined removal.
The tool for floor renovators, hazardous-material renovators, painters, plasterers and interior fit-out – supplied in a case.
No brush changes, more torque and up to 30 % higher efficiency.
The drum rotation throws the removed material directly towards the extraction.
Exact depth adjustment with 82 mm working width.
Compact brushless design for low-fatigue work.
Hand-held milling cutter for removing mineral materials, engineered stone, tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. Particularly suitable for floor renovators, renovators and hazardous-material renovators, painters and plasterers, as well as interior fit-out. For dry use only, with a vacuum cleaner.
Power input: 1,400 W
Voltage: 230 V
Operating mode: Dry
Speed: 6,400 rpm
Working width max.: 82 mm
Working depth: 0–8 mm
Tool Ø max.: 98 mm
Spindle thread: M14
Weight: 4.5 kg
Soft start, restart cutout
1 x silicone mains cable 4 m
1 x guard with vacuum cleaner connector
1 x flange nut with grub screw
1 x pin spanner
1 x Allen key 6 mm
in a case
ATLAS Milling Drum Diamond Blue
(Varianten)
Diamond milling drum Ø82 mm with soft bond for coatings under 2 mm and mineral floors.
584,00 €
ATLAS Milling Drum Diamond Red
(Varianten)
Diamond milling drum Ø82 mm with medium bond for concrete, old concrete and screed.
584,00 €
ATLAS Milling Drum Hybrid Grey
(Varianten)
Diamond milling drum Ø82 mm with hard bond for coatings, sealants and adhesive residues.
636,00 €
ATLAS Milling Drum PCD Black
Art.Nr.: 150.010.201
Diamond milling drum Ø82 mm with PCD bond for hard coatings, sealants and industrial floors.
698,00 €
ATLAS Milling Drum Diamond Rib Form
Art.Nr.: 150.010.214
Diamond milling drum 82 mm in rib form with medium bond — for precise grooving in concrete and mineral floors at a high rate of progress.
669,00 €
ATLAS Milling Drums
(Varianten)
Diamond milling drums Ø82 mm for dry grinding — matched to ATLAS drum milling machines, for coating removal, floor preparation and grooving.
From: 584,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: removing tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. For dry use only – never operate with water supply, do not process wet materials. Metals must not be processed. Only use milling drums approved or licensed by GALESKI.
Personal protective equipment must be worn during operation: depending on the application, full face protection, eye protection or safety goggles as well as hearing protection; where appropriate, a dust mask, protective gloves or a special apron. The dust or respirator mask must filter the dust produced.
Noise emission: sound pressure level 83.6 dB(A), sound power level 94.6 dB(A) – hearing protection required. Vibration: 9.5 m/s².
Only carry out milling work with a suitable vacuum cleaner with a matching filter connected.
Dust produced when working stone containing crystalline silica is hazardous to health. Toxic or asbestos-containing materials (e.g. PCB, asbestos, bitumen/PAH) may only be processed by specially trained personnel for remediation purposes.
Keep the milling machine away from metal parts (screws, reinforcing steel) – segments can be damaged and ejected.
Sockets in damp rooms and outdoor areas must be fitted with residual current devices (RCD, PRCD).
For complete safety instructions, see the original operating instructions.
