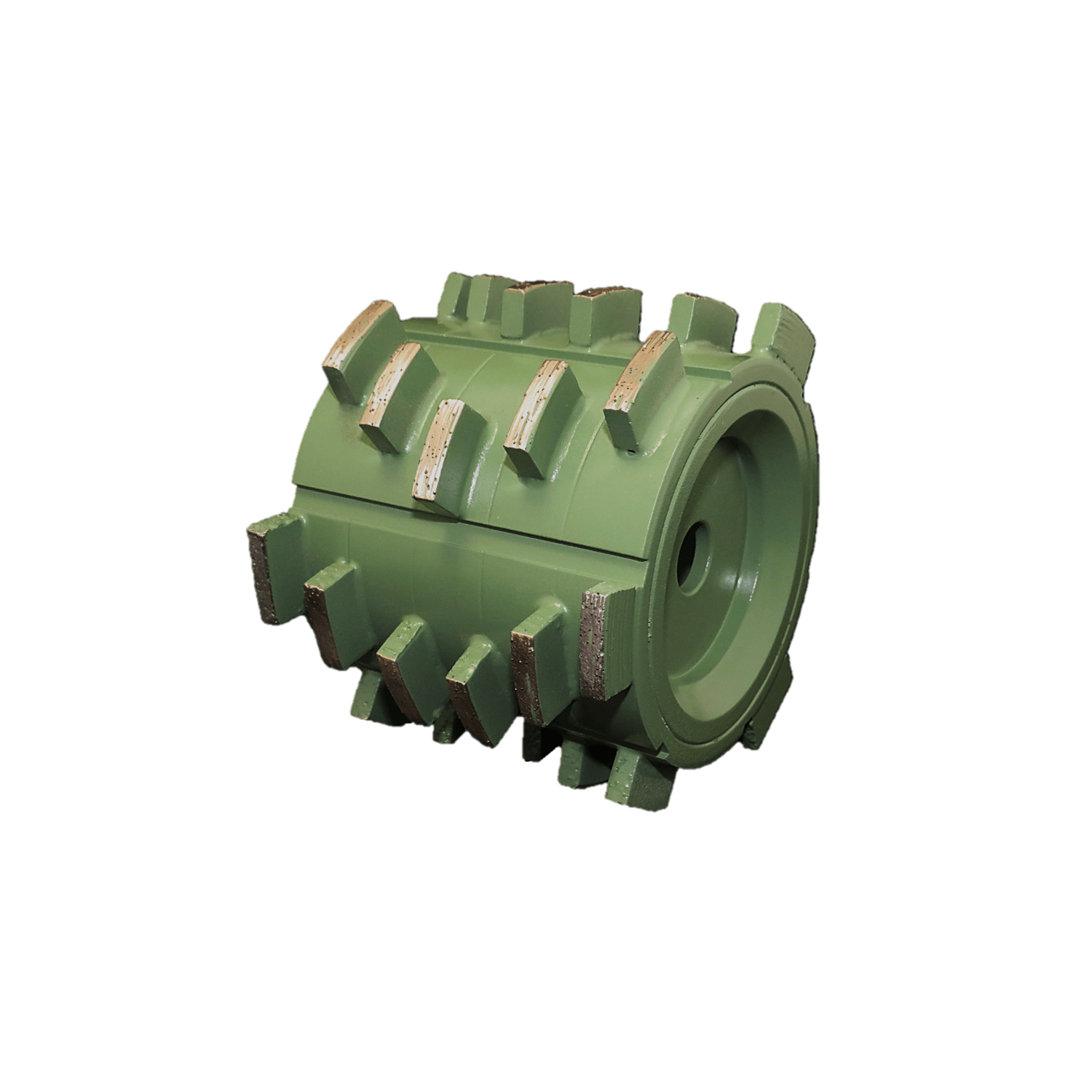

ATLAS Milling Drum Diamond Rib Form

Application & Function

The milling drum Diamond Rib Form is designed for cutting grooves and markings in concrete, old concrete and mineral floors. The rib segment shape enables precise grooving up to 10 mm deep and ensures fast progress.

Suitable Materials

• Grooving < 10 mm
• Concrete
• Old concrete
• Power-floated concrete
• Mineral floors
• Plaster
• Terrazzo

Technical Data

• Tool type: diamond milling drum
• Bond: medium
• Segment shape: rib form
• Segment height: 10 mm
• Number of segments: 33
• Grit: 30/40
• Working width: 82 mm
• Operating mode: dry

Compatibility

Compatible machines: Atlas Max 82 BL
