Diamond milling drums Ø82 mm for dry grinding — matched to ATLAS drum milling machines, for coating removal, floor preparation and grooving.

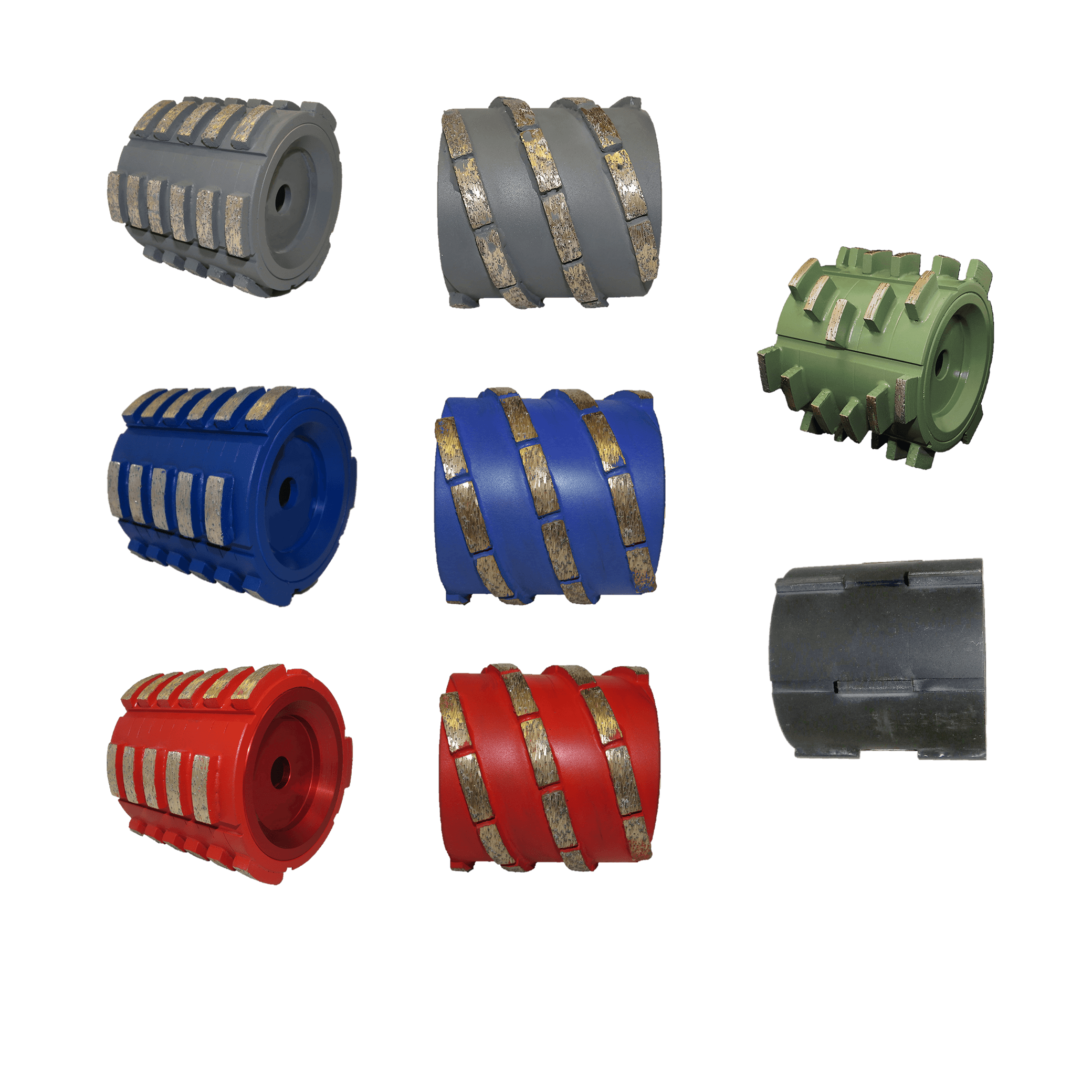

ATLAS milling drums are available in five bonds and segment shapes and cover a wide range of applications — from thin coatings to hard industrial floors.
From: 584,00 €
ATLAS milling drums are developed exclusively for ATLAS drum milling machines and enable controlled, even material removal at a working width of 82 mm.
Depending on bond and segment shape, they cover every work step — from thin coatings through concrete and screed to hard adhesive and sealant residues as well as precise grooving.
• Five bond variants for a wide variety of substrates and coatings
• Uniform working width of 82 mm, precisely matched to ATLAS machines
• Standard and helix form for the diamond variants to suit different removal requirements
• Custom versions (different segment layout, segment heights) available on request
Tool type: diamond milling drum
Working width: 82 mm (all variants)
Operating mode: dry
• Soft (Diamond Blue) = coatings < 2 mm, standard floors
• Medium (Diamond Red) = concrete, old concrete, screed
• Hard (Hybrid Grey) = coatings, sealants, adhesive residues
• PCD (PCD Black) = hard coatings, industrial floors
• Rib form, medium (Diamond Rib Form) = grooving, markings
