Powerful compressed-air drum milling machine with an adjustable machine body for near-wall milling — low-dust, rugged and ideal for professional dry use.
2.766,00 €

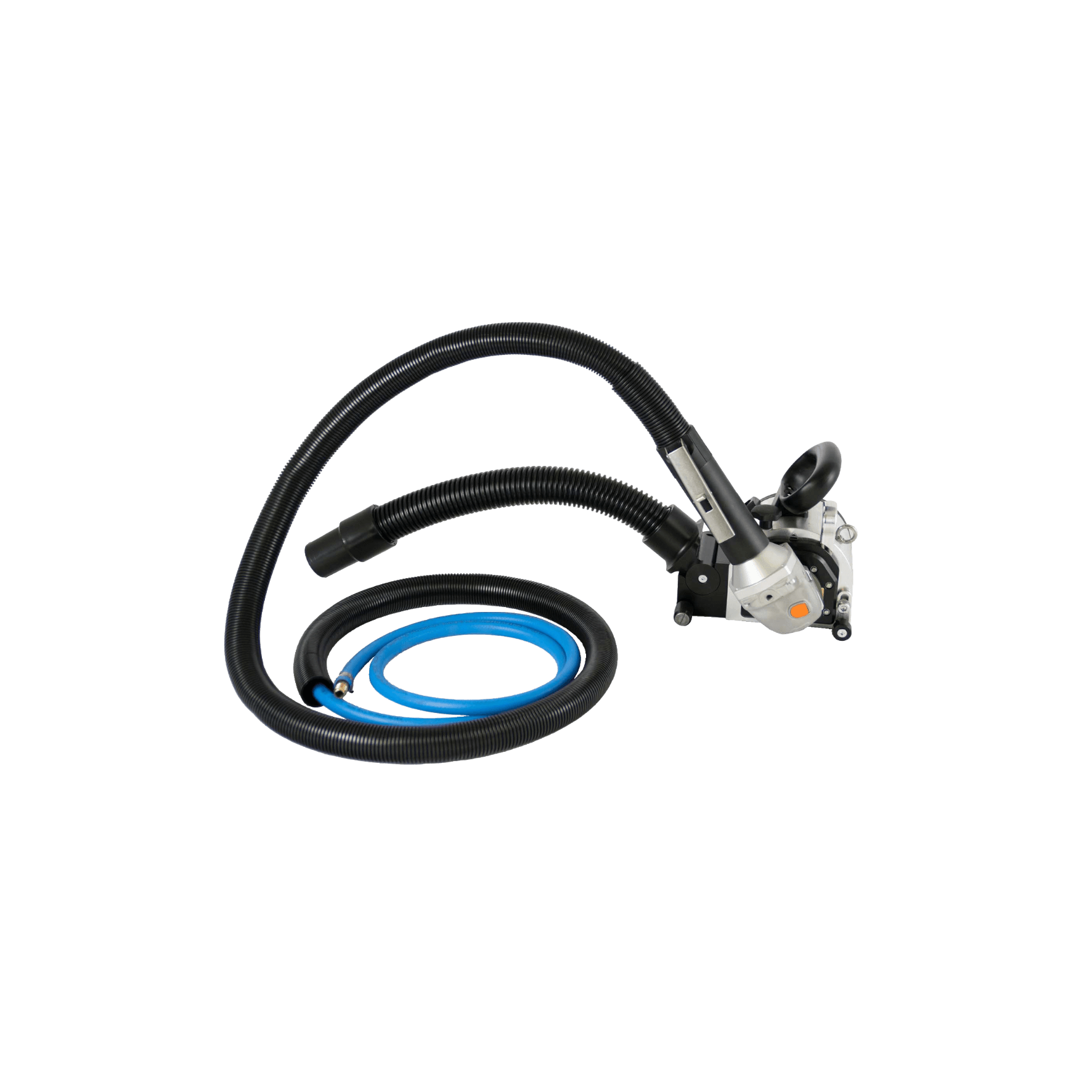

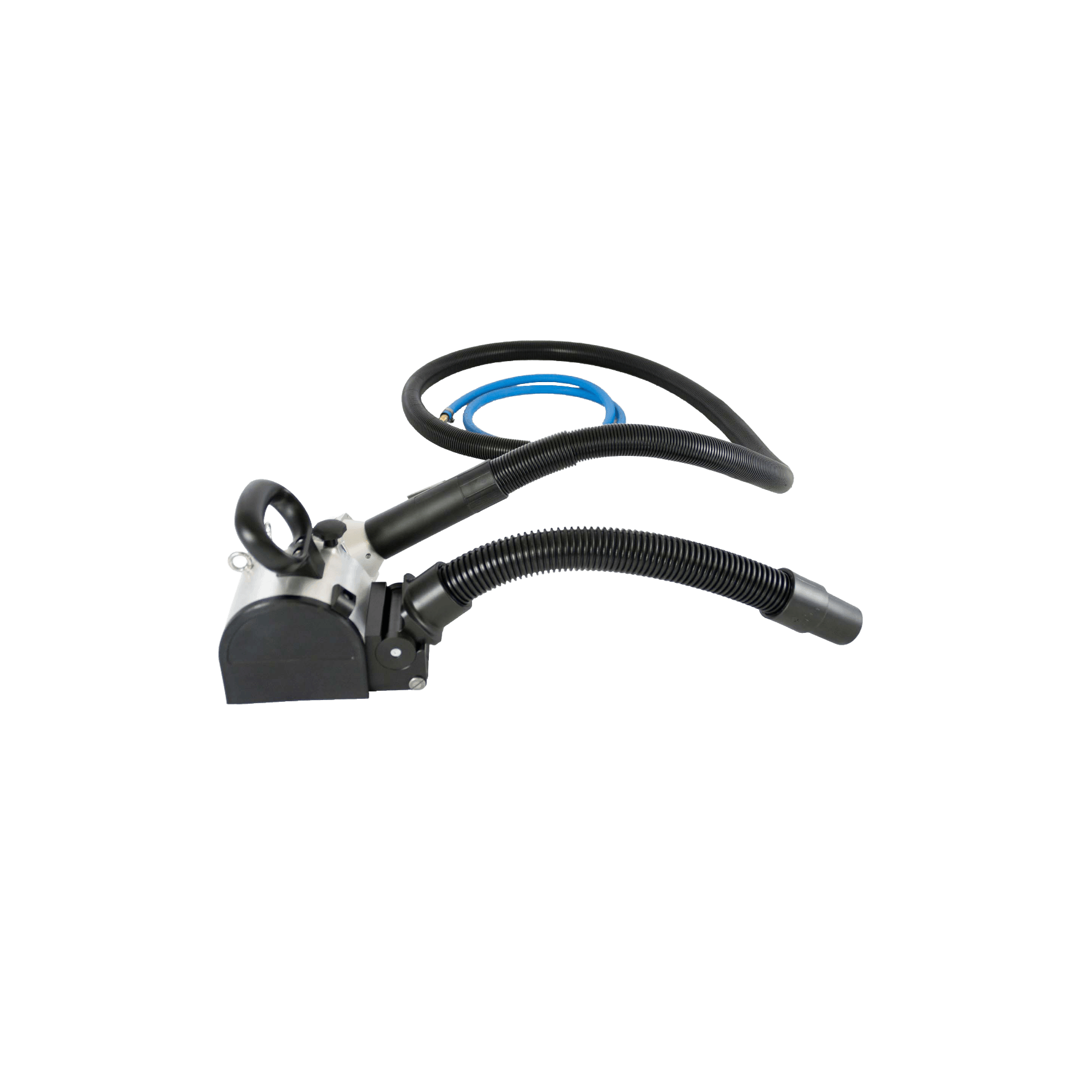

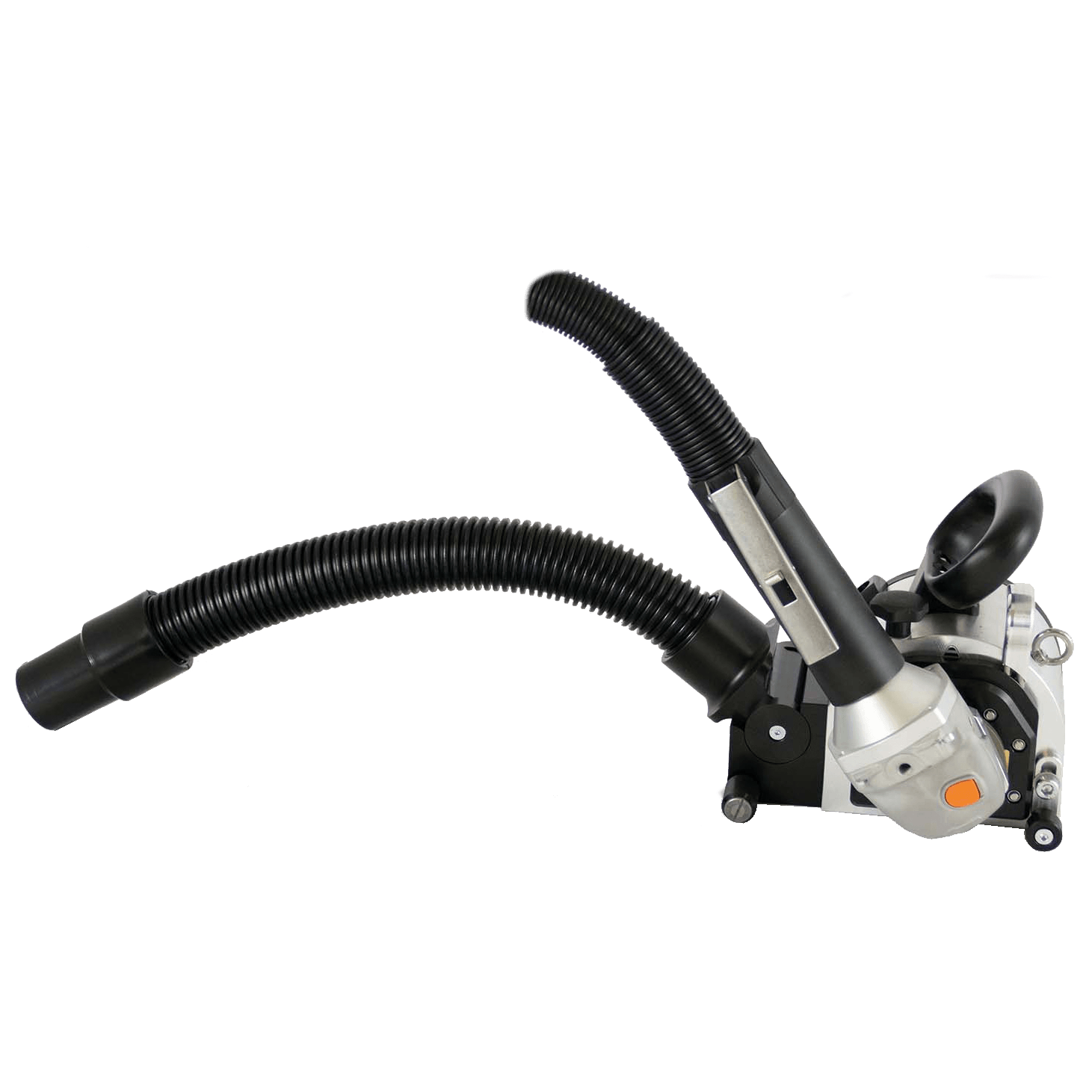

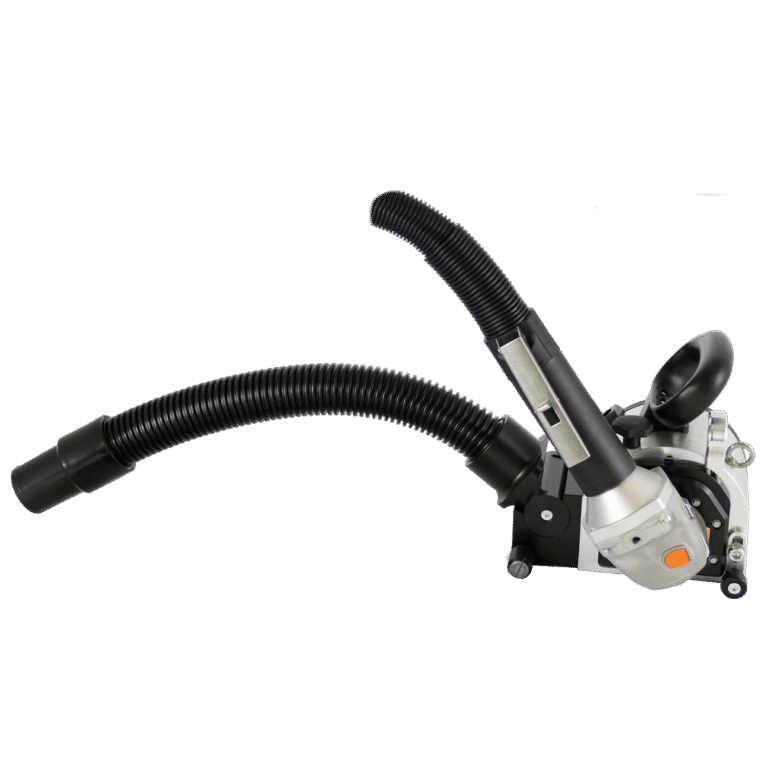

The AIR ATLAS MAX is a high-performance compressed-air drum milling machine from the new generation of GALESKI AIR machines: extra strong and super handy, with an excellent size-to-power ratio. The adjustable machine body can be rotated up to 150° relative to the milling drum during operation – ideal for near-wall and near-floor working, in both pulling and pushing cuts.
By design, the machine works with very low dust when connected to a vacuum cleaner. Sensitive in precision work and with full pulling force in rough operation, the AIR ATLAS MAX impresses with sophisticated silencer technology and a rear exhaust air outlet for comfortable, safe working.
Ideal for floor and hazardous-material renovators, painters and plasterers looking for an electricity-free, rugged alternative to the electric drum milling machine.
Adjustable up to 150° for near-wall and near-floor milling.
As a compressed-air machine, completely without electricity – safe in any environment.
Connected to a vacuum cleaner, the machine works with very low dust by design.
Full pulling force in rough operation with a compact, handy design.
Compressed-air drum milling machine for removing tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. Suitable for dry use only (never operate with water supply). Particularly suitable for floor and hazardous-material renovators, painters, plasterers.
Power output: 900 W
Air consumption max.: 20 l/sec.
Speed: 5,400 rpm
Working width max.: 82 mm
Tool Ø max.: 98 mm
Working depth: 0–10 mm
Spindle thread: M14
Weight: 3.2 kg
1 x air hose 3 m, internal Ø 9 mm, with brass quick coupling
1 x guard with rotatable, flexible extraction hose
1 x connector for vacuum cleaner
1 x pin wrench
1 x clamping nut with locking screw
1 x 6 mm Allen key
1 x D-handle
ATLAS Milling Drum Diamond Blue
(Varianten)
Diamond milling drum Ø82 mm with soft bond for coatings under 2 mm and mineral floors.
584,00 €
ATLAS Milling Drum Diamond Red
(Varianten)
Diamond milling drum Ø82 mm with medium bond for concrete, old concrete and screed.
584,00 €
ATLAS Milling Drum Hybrid Grey
(Varianten)
Diamond milling drum Ø82 mm with hard bond for coatings, sealants and adhesive residues.
636,00 €
ATLAS Milling Drum PCD Black
Art.Nr.: 150.010.201
Diamond milling drum Ø82 mm with PCD bond for hard coatings, sealants and industrial floors.
698,00 €
ATLAS Milling Drum Diamond Rib Form
Art.Nr.: 150.010.214
Diamond milling drum 82 mm in rib form with medium bond — for precise grooving in concrete and mineral floors at a high rate of progress.
669,00 €
ATLAS Milling Drums
(Varianten)
Diamond milling drums Ø82 mm for dry grinding — matched to ATLAS drum milling machines, for coating removal, floor preparation and grooving.
From: 584,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: the hand milling machine is designed for removing tile adhesives, coatings, filler compounds, firm and tough-elastic adhesives, paints and render. Operating mode: dry only — the machine is suitable for dry use only and must never be operated with water supply. Metals must not be processed; only carry out milling work with a suitable vacuum cleaner connected.
Personal protective equipment: depending on the application, use full face protection, eye protection or safety goggles; hearing protection must be worn in accordance with the noise data. Where appropriate, a dust mask, protective gloves or a special apron are also recommended.
Noise emission: sound pressure level 81 dB(A), sound power level 92 dB(A) (EN ISO 15744) – hearing protection required. Vibration: 13.4 m/s² (EN ISO 8662).
Dust produced when working stone (crystalline silica) is hazardous to health. Toxic or asbestos-containing materials may only be processed by specially trained personnel for remediation purposes (observe accident prevention regulation VBG 119 of the German employers’ liability insurance association).
For complete safety instructions, see the original operating instructions.
