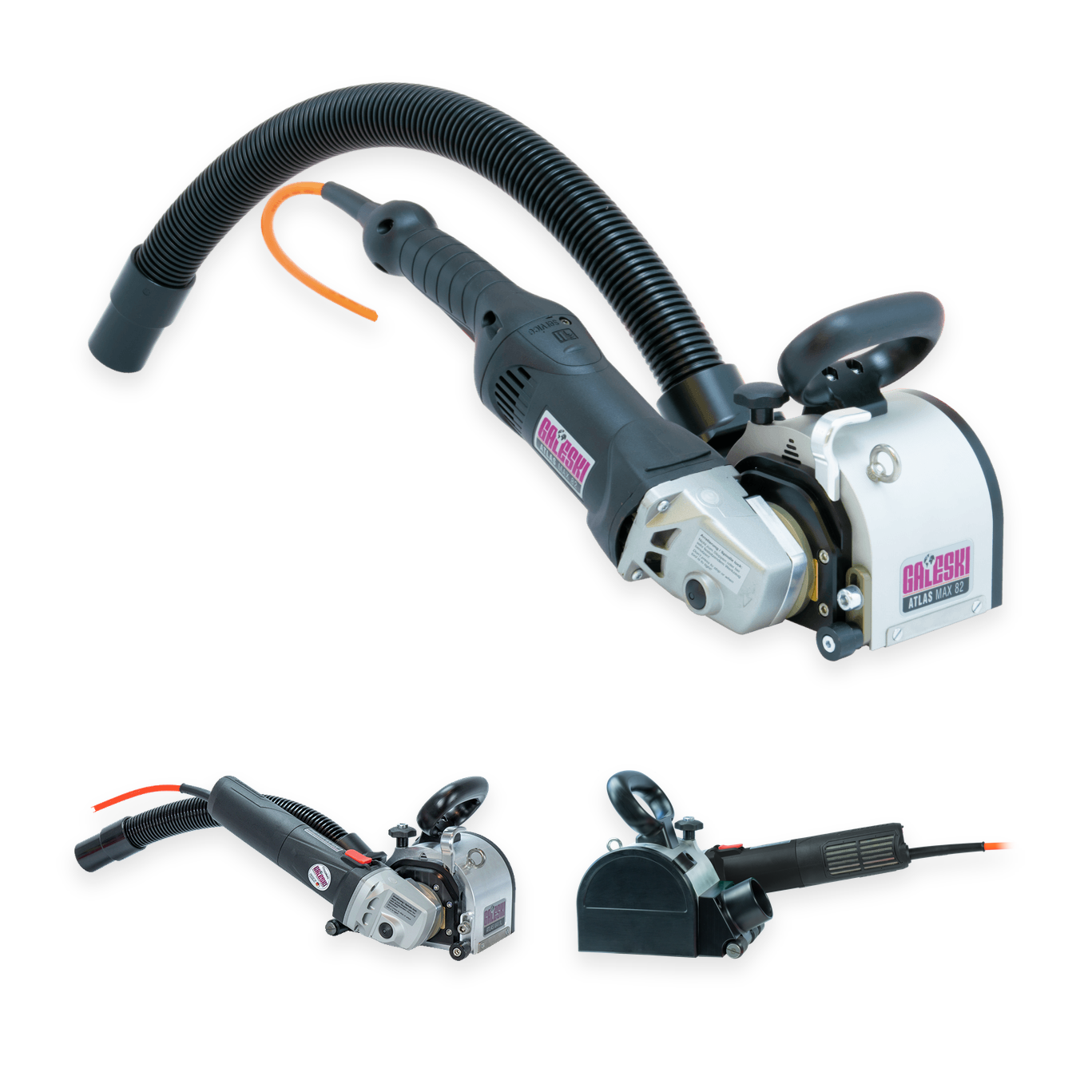

ATLAS Series

Drum milling machines for exactly defined removal of coatings, adhesives, plaster and concrete – 82 mm working width, dry with dust extraction.

3 models
Tool Ø 98 mm
Dry
230 V
Brushless

Which model suits your work?

Milling close to walls and floors: machine body adjustable over 150°ATLAS Max 82
Brushless motor with precise depth adjustment 1–10 mmATLAS Max 82 BL
Exactly defined removal of coatings, adhesives and plaster – very low dustATLAS Pro 82 BL

Models compared

Model	Speed control	Speed	Power	Tool Ø max.	Weight	Voltage	Price	Details

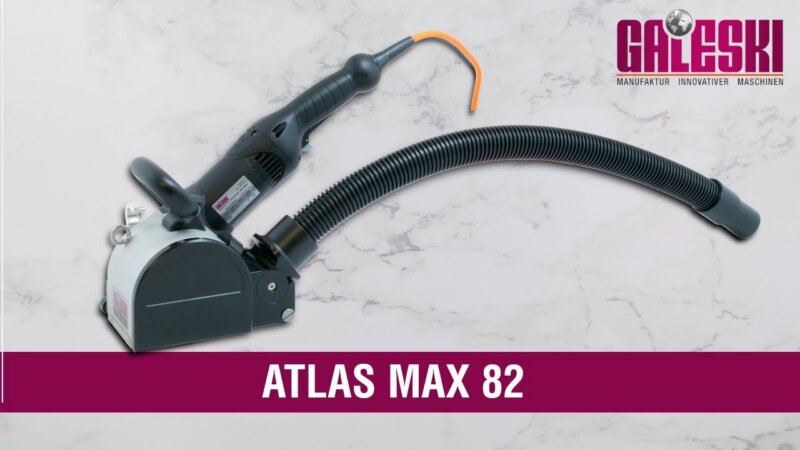

ATLAS Max 82	Constant	7,000 rpm	1,790 W	98 mm	5.6 kg	230 V	2.069,00 €	Details
ATLAS Max 82 BL	Constant	6,400 rpm	1,400 W	98 mm	4.9 kg	230 V	2.188,00 €	Details
ATLAS Pro 82 BL	Constant	6,400 rpm	1,400 W	98 mm	4.5 kg	230 V	1.842,00 €	Details

Net prices, plus shipping.

What sets the ATLAS series apart

When milling, the stepless depth adjustment determines the removal – not the contact pressure as in grinding. This makes the worked surface exactly defined and even. With the PCD milling drum the surface is peeled off instead of ground.

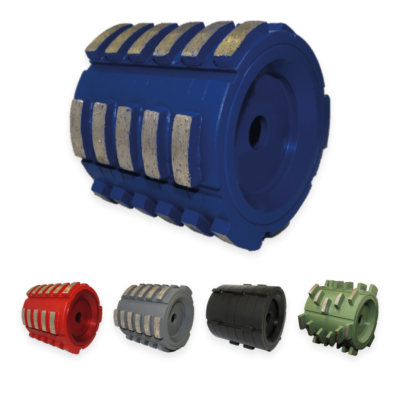

82 mm working width Milling drums Ø 98 mm on the M14 spindle thread.
Adjustable working depth For an exactly defined removal.
Dry use With dust extraction.
Use Renovators and hazardous material remediators, painters and plasterers, interior finishers and floor renovators.
Brushless models (ATLAS Max 82 BL, ATLAS Pro 82 BL) without carbon brushes; pneumatic versions in the GALESKI AIR series.
