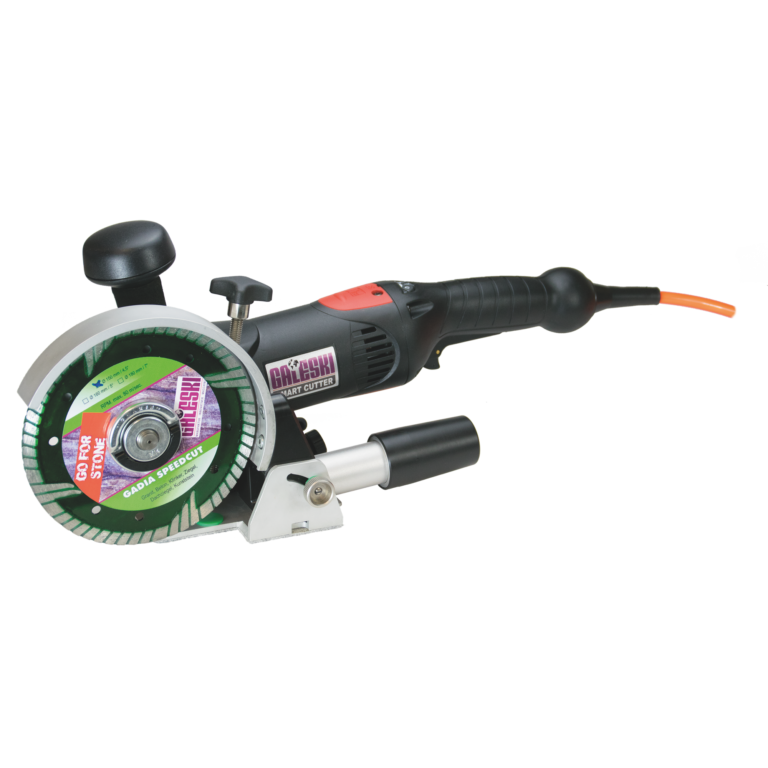

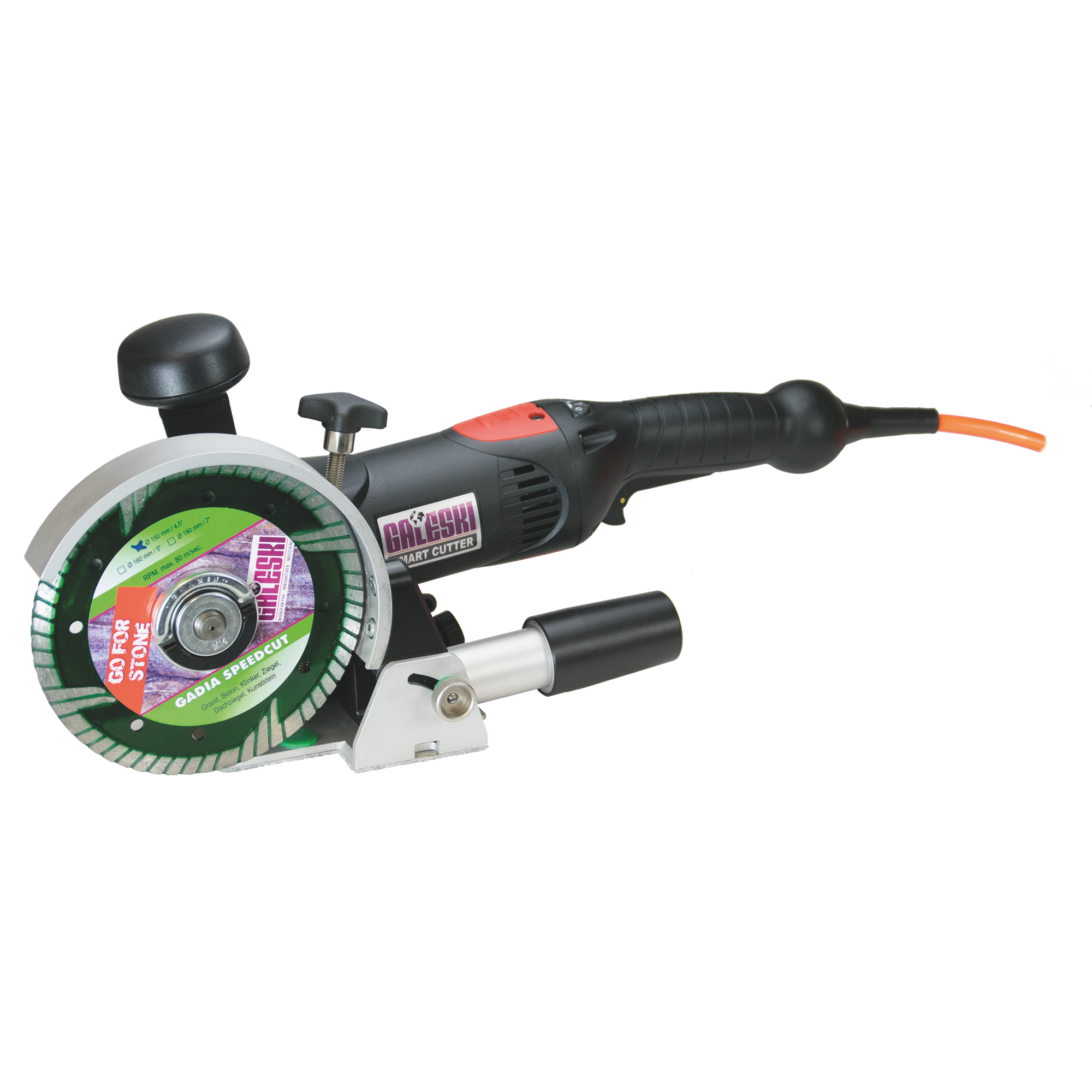

The most powerful model in the SMART CUTTER PLUS series: 1,750 W, cutting discs up to Ø 150 mm, 40 mm cutting depth – with extraction hood and removable guide plate.
758,00 €
The SMART CUTTER 1700 VARIO PLUS is the largest and most powerful model in the SMART CUTTER PLUS series. Its 1,750 W motor drives cutting discs up to Ø 150 mm and achieves a cutting depth of 40 mm – with infinitely variable speed from 1,700 to 6,800 rpm.
The central fine cutting depth adjustment with side lock ensures exact cuts, and the removable guide plate maximum versatility: freehand along the guide edge, with side stop for strips or on the GALESKI rail system. Despite dust extraction, there is a good clear view into the cutting area; the freely rotating extraction connection prevents twisted hoses.
The powerful choice for tilers, stonemasons and renovators who need deep, precise and low-dust dry cuts – in 230 V or 115 V.
Cutting discs up to Ø 150 mm – the most powerful model in the SMART CUTTER PLUS series.
Central fine adjustment with side lock for exact cutting.
Freehand, with side stop or on the GALESKI rail system – always with dust extraction.
A good view into the cutting area despite extraction – with freely rotating extraction connection.
Stone cutter for natural and engineered stone processing – for parting and cutting predominantly mineral materials such as marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass and sandstone. Particularly suitable for tilers, stonemasons, renovators, floor renovators, restorers and sculptors. Suitable for dry use only.
Power input: 1,750 W
Voltage: 230 / 115 V (depending on variant)
Operating mode: Dry
Speed control: Variable, infinitely adjustable
Speed: 1,700–6,800 rpm
Tool Ø max.: 150 mm
Cutting depth max.: 40 mm
Spindle thread / bore: M14 / 22.2 mm
Weight: 3.9 kg
Soft start, overload protection
1 x silicone mains cable 4 m
1 x guard with rotating vacuum cleaner connector Ø 36–46 mm
1 x removable guide plate with connection for guide rail
1 x side stop
1 x plastic Velcro pad
1 x clamping flange
1 x FIXTEC flange nut
1 x ball handle
in a case
GADIA Ultra-Cut 150
(Varianten)
Diamond cutting disc Ø150 mm for concrete and universal building materials with a balanced ratio of cut quality, speed and service life.
From: 32,00 €
GADIA-Cut Cutting Discs
(Varianten)
High-quality diamond cutting discs for precise and efficient cutting work in concrete, natural stone, tiles and other building materials.
From: 23,00 €
GADIA Sprint-Cut 150
(Varianten)
Diamond cutting disc Ø150 mm for fast cutting work in concrete and hard building materials with high cutting speed and good service life.
From: 48,00 €
GADIA Turbo-Cut 150
(Varianten)
Diamond cutting disc Ø150 mm for cutting work in hard material.
From: 50,00 €
GADIA Abrasiv-Cut 150
(Varianten)
Diamond cutting disc Ø150 mm for abrasive building materials such as asphalt and screed.
From: 49,00 €
GADIA Easy-Cut 150
(Varianten)
Diamond cutting disc Ø150 mm for precise cutting work in porcelain stoneware, ceramics and hard tiles.
From: 47,00 €
GADIA Multi-Cut 150
(Varianten)
Diamond cutting disc Ø150 mm for hard to very hard ceramic materials.
From: 61,00 €
Aluminium Rail System
(Varianten)
GALESKI rail system for Turbocut 160, Lioncut 200 and Smart Cutter Plus – rails, basic sets, suction cups, adapters and drilling aid for perfectly straight cuts.
From: 55,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: parting or cutting predominantly mineral materials (e.g. marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass, sandstone). Suitable for dry use only. Use diamond cutting discs only; always work with the guard fitted and a powerful dust extraction system connected.
Personal protective equipment is mandatory during operation: safety goggles and hearing protection. Protective gloves, sturdy non-slip footwear and an apron are recommended.
Noise emission: sound pressure level 87 dB(A), sound power level 100 dB(A) – hearing protection required. Vibration: 7 m/s².
Dust produced when working stone containing crystalline silica is hazardous to health. Material containing asbestos must not be processed.
Sockets in outdoor areas must be fitted with residual current devices (RCD).
Only use accessory tools up to Ø 150 mm whose permissible speed is at least equal to the maximum speed of the machine.
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions.
