Powerful stone cutter with extraction hood and removable guide plate – freehand, guided, with side stop or on the GALESKI rail system.
658,00 €

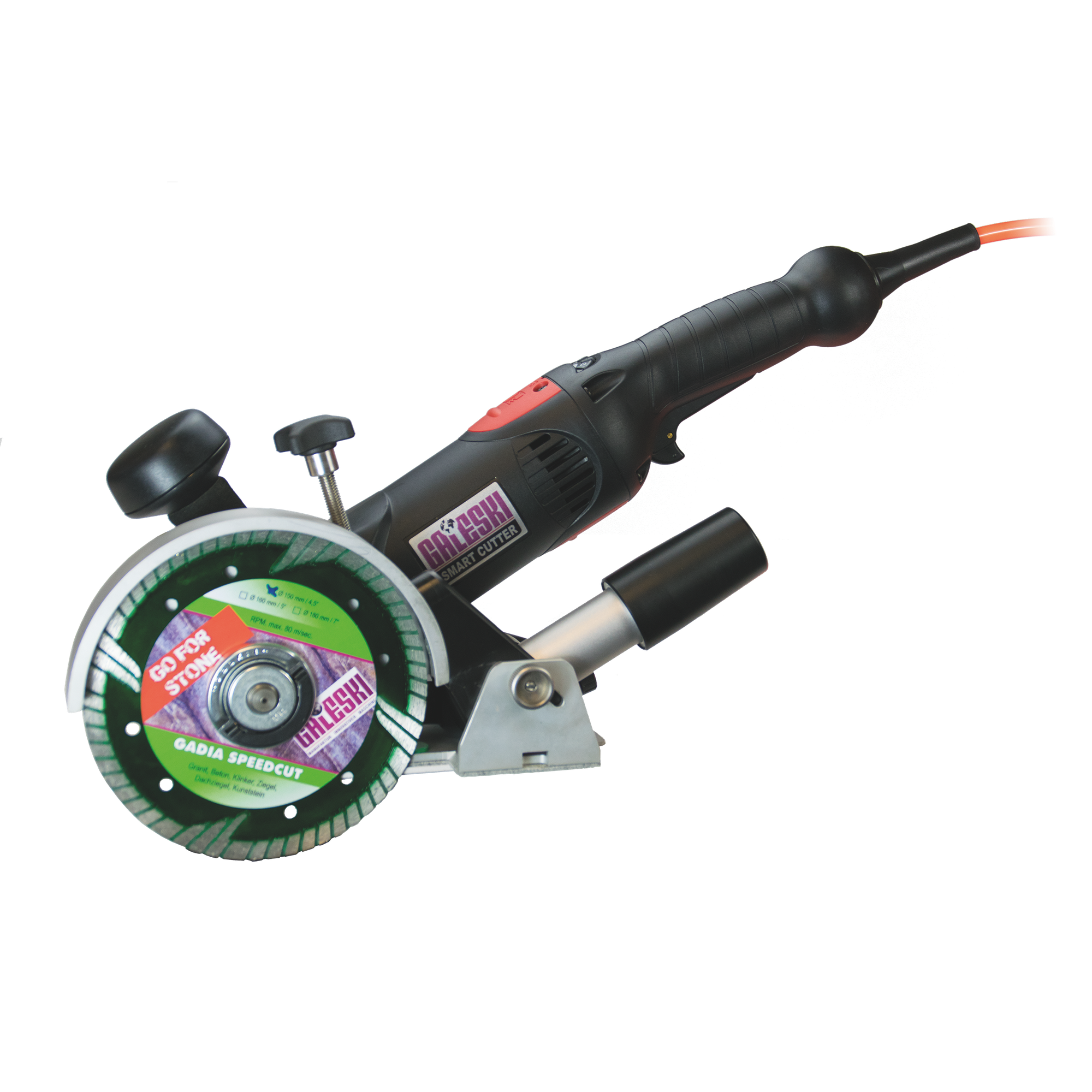

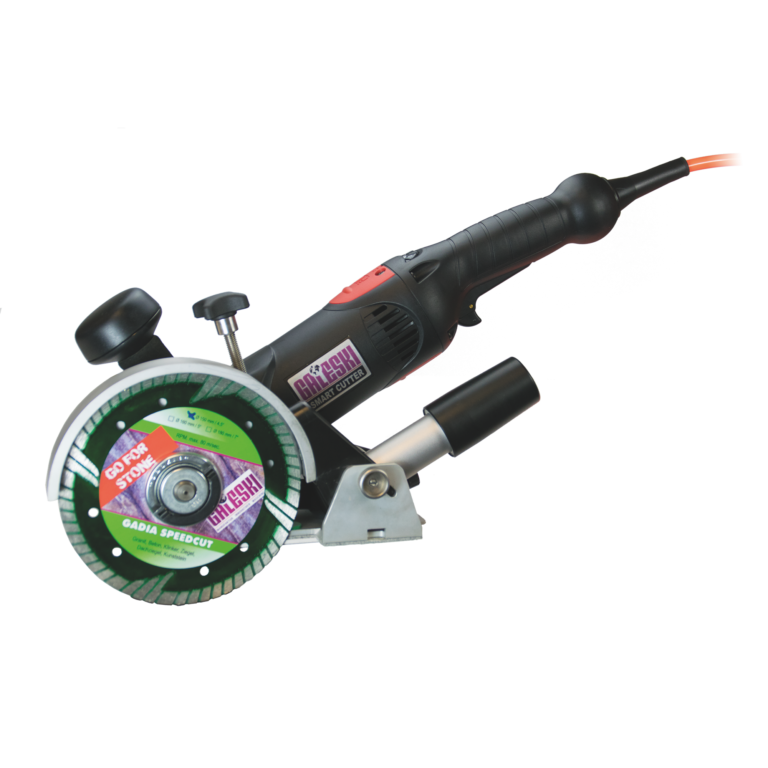

The SMART CUTTER 1500 VARIO PLUS turns the lightweight SMART CUTTER into a versatile precision tool. The 1,520 W motor runs infinitely variably from 2,700 to 9,500 rpm, and the machine weighs only 2.6 kg.
The removable guide plate opens up four working methods: freehand with a pulling cut along the guide edge, with infinitely variable cutting depth adjustment, with side stop for tile and stone strips, or on the GALESKI rail system for exact cuts – each with dust extraction. With the FIXTEC quick-change system you change the disc without tools, and soft start and overload protection ensure reliable work.
The flexible solution for tilers, stonemasons and renovators – as handy as a freehand machine, as precise as a guided one.
With infinitely variable cutting depth adjustment and fitting for the GALESKI rail system.
The side stop makes cutting off tile and stone strips easy and exact.
The FIXTEC quick-change system saves time when changing discs.
Extraction port with rotating vacuum cleaner connector – freehand and guided alike.
Stone cutter for natural and engineered stone processing – for parting and cutting predominantly mineral materials such as marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass and sandstone. Particularly suitable for tilers, stonemasons, renovators, floor renovators, restorers and sculptors. Suitable for dry use only.
Power input: 1,520 W
Voltage: 230 V
Operating mode: Dry
Speed control: Variable, infinitely adjustable
Speed: 2,700–9,500 rpm
Tool Ø max.: 125 mm
Cutting depth max.: 25 mm
Spindle thread / bore: M14 / 22.2 mm
Weight: 2.6 kg
Soft start, overload protection
1 x silicone mains cable 4 m
1 x guard with rotating vacuum cleaner connector Ø 36–46 mm
1 x removable guide plate with connection for guide rail
1 x side stop
1 x plastic Velcro pad
1 x clamping flange
1 x FIXTEC flange nut
1 x ball handle
in a case
GADIA Ceram-Cut 125
(Varianten)
Diamond cutting disc Ø125 mm for porcelain stoneware, ceramics and 2 cm patio slabs.
From: 60,00 €
GADIA Ultra-Cut 125
(Varianten)
Diamond cutting disc Ø125 mm for concrete and universal building materials with a balanced ratio of cut quality, speed and service life.
From: 28,00 €
GADIA-Cut Cutting Discs
(Varianten)
High-quality diamond cutting discs for precise and efficient cutting work in concrete, natural stone, tiles and other building materials.
From: 23,00 €
GADIA Sprint-Cut 125
(Varianten)
Diamond cutting disc Ø125 mm for fast cutting work in concrete and hard building materials with high cutting speed and good service life.
From: 38,00 €
GADIA Turbo-Cut 125
(Varianten)
Diamond cutting disc Ø125 mm for cutting work in hard material.
From: 40,00 €
GADIA Abrasiv-Cut 125
(Varianten)
Diamond cutting disc Ø125 mm for abrasive building materials such as asphalt and screed.
From: 41,00 €
GADIA Easy-Cut 125
(Varianten)
Diamond cutting disc Ø125 mm for precise cutting work in porcelain stoneware, ceramics and hard tiles.
From: 29,00 €
Aluminium Rail System
(Varianten)
GALESKI rail system for Turbocut 160, Lioncut 200 and Smart Cutter Plus – rails, basic sets, suction cups, adapters and drilling aid for perfectly straight cuts.
From: 55,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: parting or cutting predominantly mineral materials (e.g. marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass, sandstone). Suitable for dry use only. Use diamond cutting discs only; always work with the guard fitted and a powerful dust extraction system connected.
Personal protective equipment is mandatory during operation: safety goggles and hearing protection. Protective gloves, sturdy non-slip footwear and an apron are recommended.
Noise emission: sound pressure level 89 dB(A), sound power level 102 dB(A) – hearing protection required. Vibration: 5 m/s².
Dust produced when working stone containing crystalline silica is hazardous to health. Material containing asbestos must not be processed.
Sockets in outdoor areas must be fitted with residual current devices (RCD).
Only use accessory tools up to Ø 125 mm whose permissible speed is at least equal to the maximum speed of the machine.
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions.
