Powerful wet core drilling motor with water swivel, PRCD (portable residual current device) and mechanical safety clutch – diamond core drill bits up to Ø 82 mm, collar Ø 46 mm.
1.098,00 €

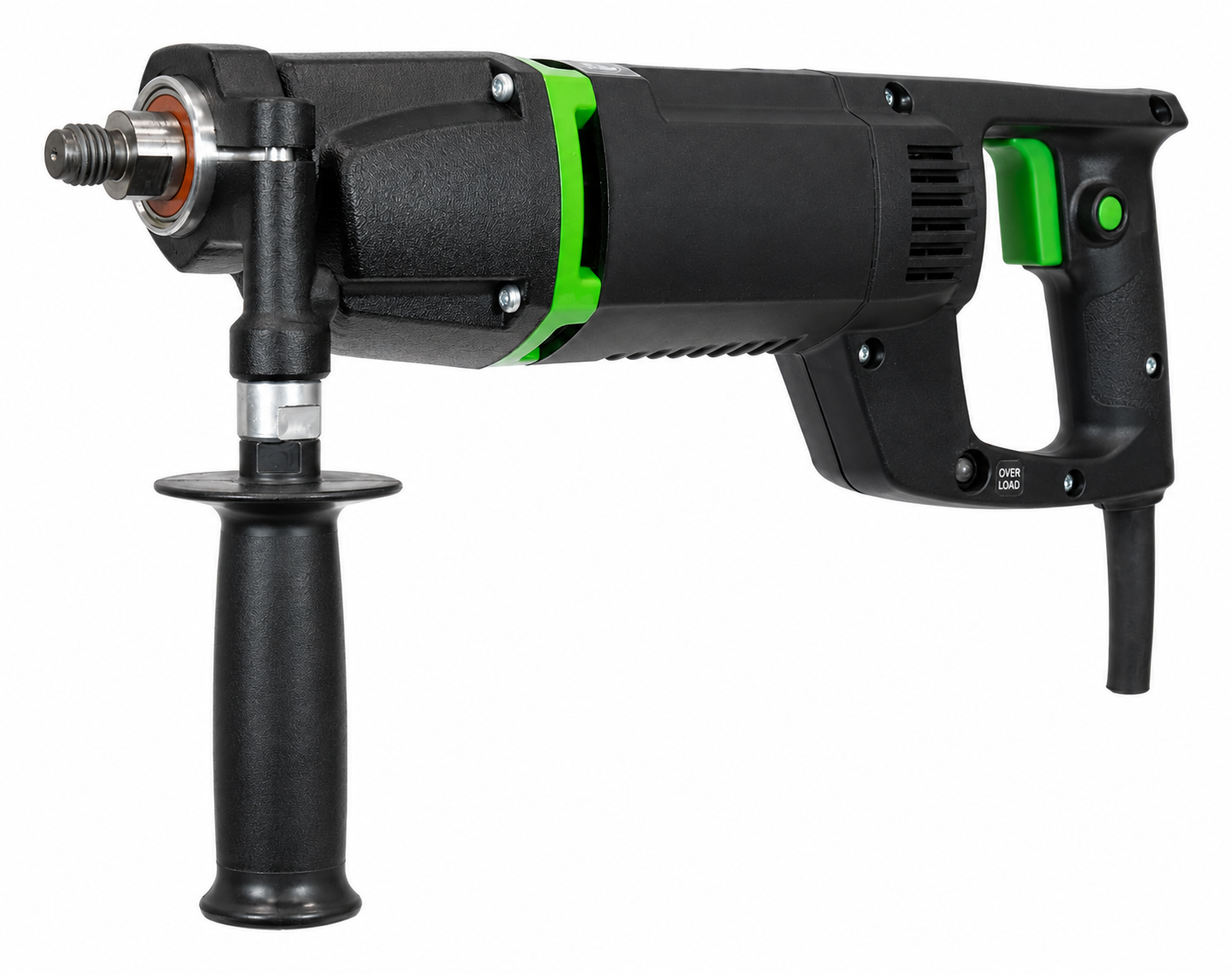

The DIAMOND 1503 DI is a handy wet core drilling motor for diamond core drill bits up to Ø 82 mm in natural and engineered stone. The 1,500 W motor with speed control, soft start and electronic overload protection pulls powerfully – at a weight of only 3.9 kg. A mechanical safety clutch absorbs shocks if the core drill bit jams, and an LED indicates overload at an early stage.
Water swivel and water tap with brass quick coupling cool the core drill bit, and the PRCD (portable residual current device) is integrated in the cable. The collar Ø 46 mm allows the motor to be fitted in suitable drill stands.
The rugged drilling motor for stonemasons, tilers and renovators – supplied in a case.
1,500 W at only 3.9 kg – powerful and handy at the same time.
Water tap with brass quick coupling for cooling the core drill bit.
Mechanical clutch absorbs shocks, the PRCD provides protection in wet operation.
For use in suitable drill stands.
Wet core drilling motor for drilling with diamond core drill bits up to Ø 82 mm in natural stone and engineered stone – two-handed with auxiliary handle or in a drill stand. Particularly suitable for stonemasons, tilers and renovators. Only operate with water flushing.
Power input: 1,500 W
Voltage: 230 V
Operating mode: Wet
Speed: 0–2,000 rpm (rated speed), no-load 0–3,700 rpm
Core drill bit Ø max.: 82 mm
Core drill bit connection thread: R 1/2″
Collar Ø: 46 mm
Weight: 3.9 kg
Protection class: II
Soft start, speed control, overload protection with LED indicator, thermal motor protection, mechanical safety clutch
1 x silicone mains cable 4 m
1 x water swivel
1 x water tap with brass quick coupling
1 x PRCD
in a case
GT 402 Suction Drill Stand
Art.Nr.: 012.021.101
Suction drill stand with triple suction mounting for horizontal and vertical drilling – column rotates 360°.
898,00 €
GTA 500 Suction Drill Stand
Art.Nr.: 012.021.102
Suction drill stand with two large rubber suction cups and an extraction pipe for the drilling slurry – column rotates 360°.
998,00 €

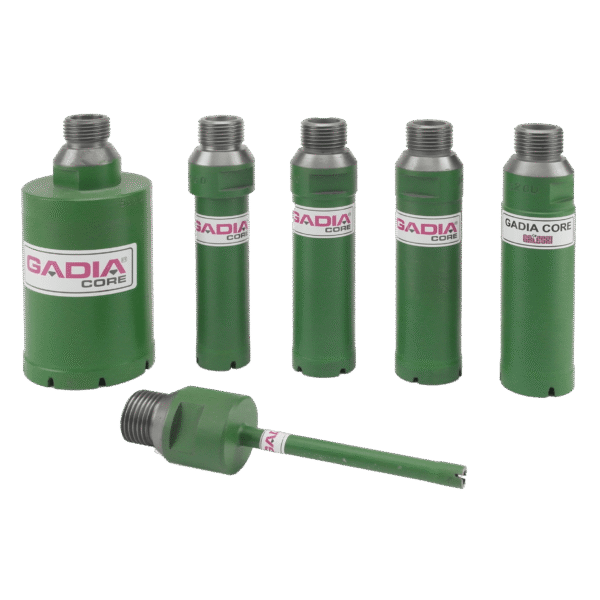

GADIA Core 80 Granite
(Varianten)
Diamond core drill bit with 80 mm drilling depth for precise wet drilling in natural stone, concrete and other mineral building materials.
From: 67,00 €
GADIA Core 120 Granite
(Varianten)
Diamond core drill bit with 120 mm drilling depth for precise wet drilling in natural stone, concrete and other mineral building materials.
From: 63,00 €
GADIA Core 200 Granite
(Varianten)
Diamond core drill bit with 200 mm drilling depth for precise wet drilling in natural stone, concrete and other mineral building materials.
From: 66,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: core drilling with diamond core drill bits in natural and engineered stone, two-handed with auxiliary handle or in a drill stand. Only operate with water flushing.
Personal protective equipment must be worn during operation: safety goggles and hearing protection. Protective gloves, sturdy non-slip footwear and an apron are recommended.
Noise emission: sound pressure level LpA 88 dB(A) – hearing protection required. Vibration: 1.9 m/s².
As the machine is intended for wet use, it may only be operated in combination with an isolating transformer or a PRCD (portable residual current device) in accordance with the applicable accident prevention regulations in Germany.
Dust produced when working stone containing crystalline silica is hazardous to health. Material containing asbestos must not be processed.
Beware of concealed electrical cables, gas and water pipes – check the working area, e.g. with a metal detector. When drilling through, secure the area below, as the drill core may fall out.
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions.
