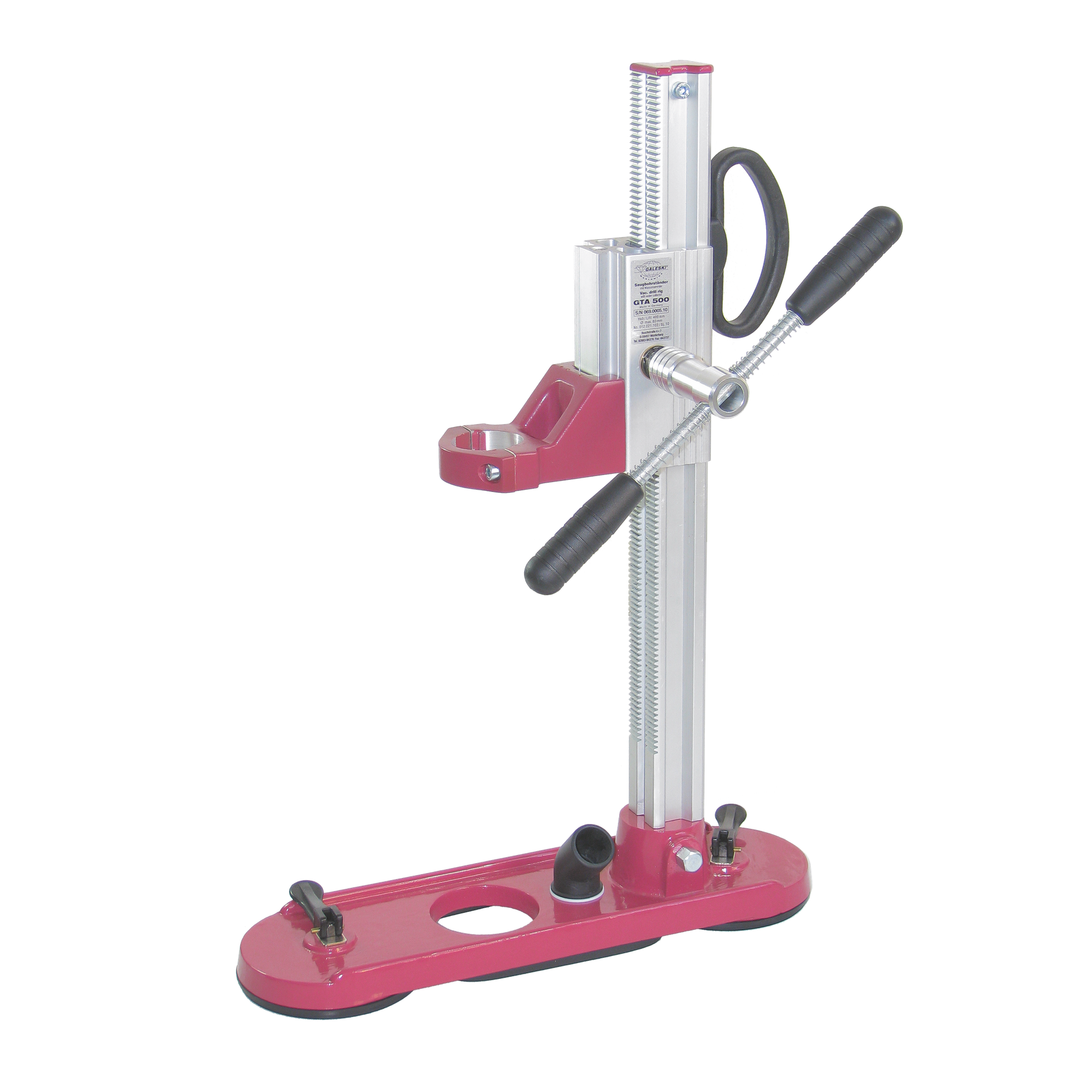

GTA 500 Suction Drill Stand

Application & Function

The GTA 500 has two rubber suction cups Ø 125 mm. The column and machine mounts are the same as on the GT 402.

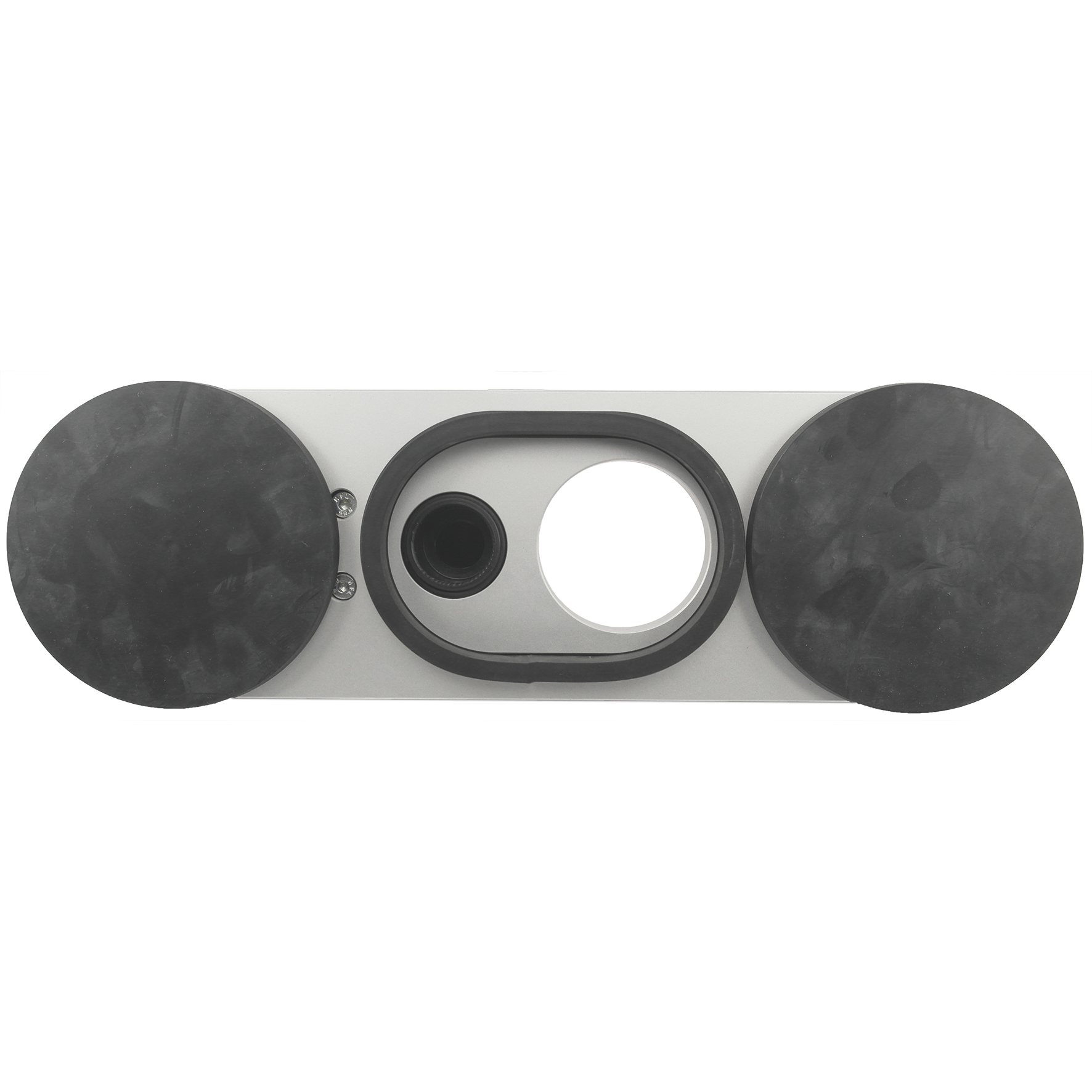

• A rubber sealing lip can be fitted under the base so that the drilling slurry can be extracted with a wet vacuum cleaner
• Rotating extraction pipe for a wet vacuum cleaner permanently fitted
• All parts non-rusting and durable

Technical Data

Drill column: rotates 360°
Suction mounts: 2 x Ø 125 mm
Drill Ø max.: 80 mm
Drilling stroke max.: 400 mm
Machine mount: Ø 60 mm
Weight: 10.0 kg

Included

Base plate with 2 rubber lever suction cups, aluminium profile column, feed unit, adjustable carrying handle, feed lever, rubber sealing lip, extraction pipe, machine mount Ø 60 mm, open-end spanners 17/19/32 mm, Allen keys 4/5/6/8 mm. Supplied without reducing ring.

Compatibility

For drill motors with a matching collar, e.g. Diamond 1503.
