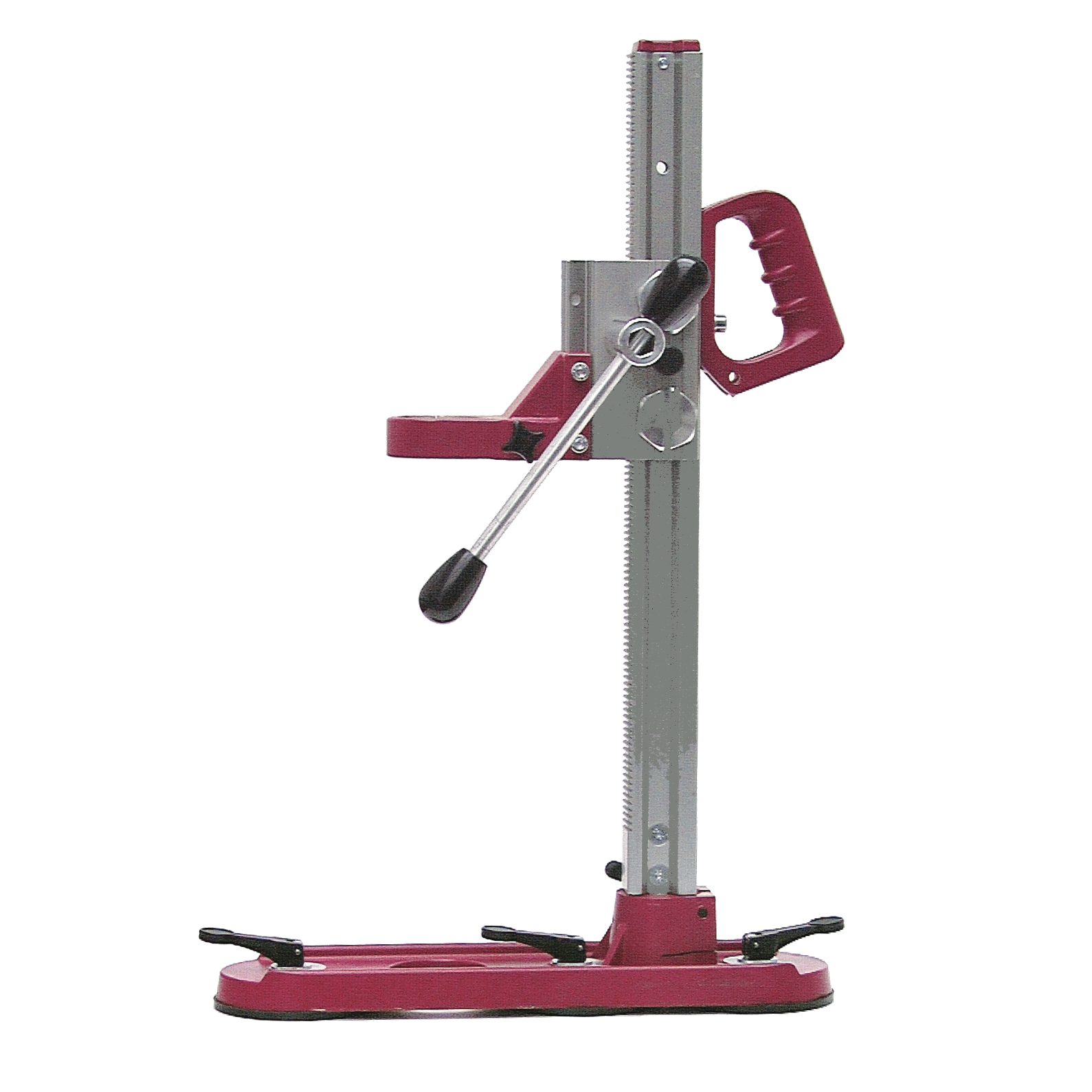

GT 402 Suction Drill Stand

Application & Function

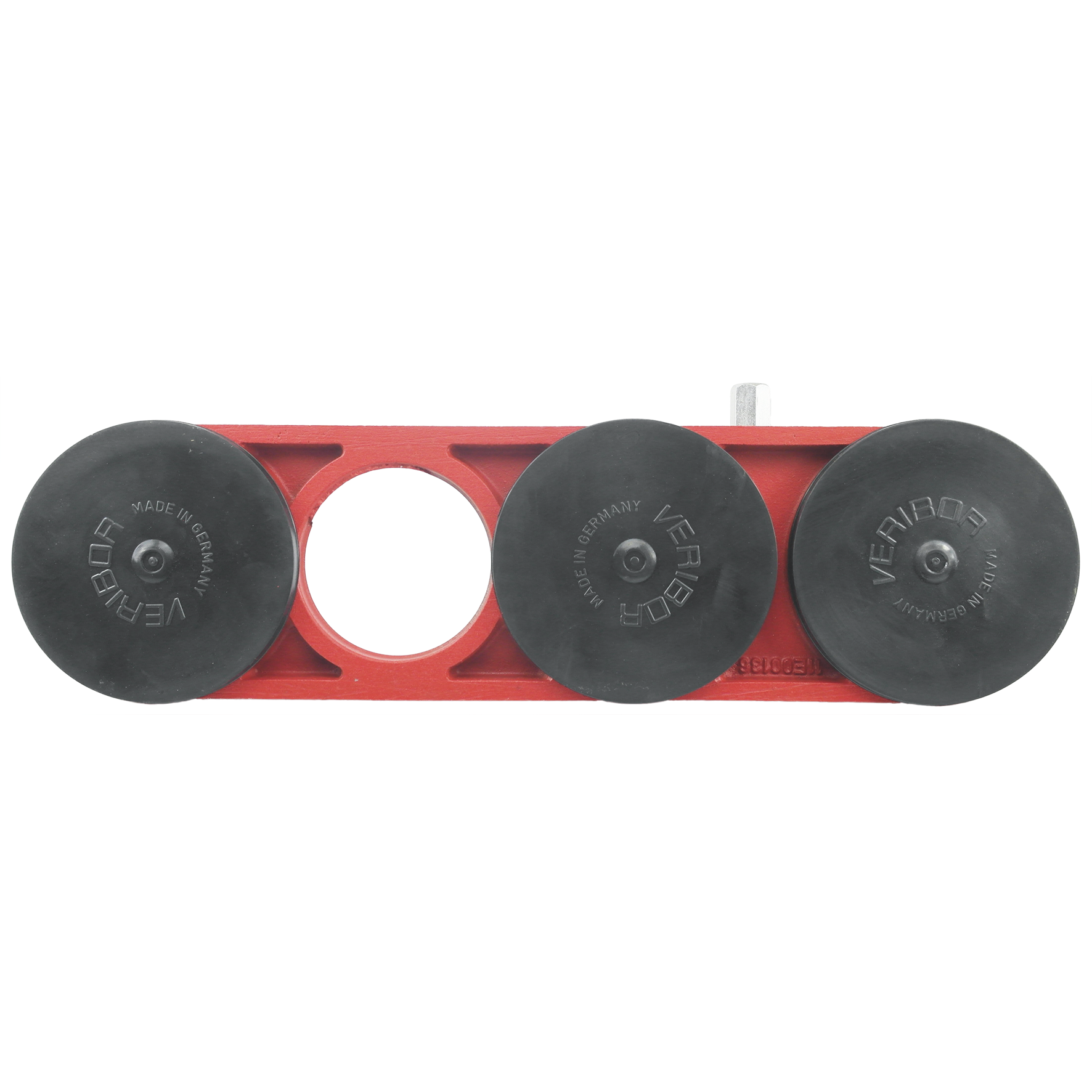

The GT 402 suction drill stand offers triple suction mounting, each Ø 100 mm, and can be attached horizontally and vertically.

• Easily exchangeable machine mount with dovetail guide
• Feed lever can be used on either side
• Entire drill column rotates 360°
• All parts non-rusting and durable

Technical Data

Drill column: rotates 360°
Suction mounts: 3 x Ø 100 mm
Drill Ø max.: 70 mm
Drilling stroke max.: 400 mm
Machine mount: Ø 60 mm
Weight: 8.0 kg

Included

Base plate with 3 rubber lever suction cups, aluminium profile column, feed unit, adjustable carrying handle, feed lever, machine mount Ø 60 mm, open-end spanners 17/19/32 mm, Allen keys 4/5/6/8 mm. Reducing ring not included.

Compatibility

For drill motors with a matching collar, e.g. Diamond 1503. Reducing rings compensate for the difference between the machine mount (60 mm) and the collar.
