COMBINATOR SOLO

SKU 002.022.004

Double-column drill stand without drilling motor for wet core drilling up to Ø 70 mm – no tilting moment, with lever suction cup, drilling stroke 150 or 230 mm.

For your existing drilling motor – expandable up to edge drilling. Matching drilling motors: JOKER SPEED, JOKER MAXI BL, POLIFOX 1700, DIAMOND 1800.

From: 1.062,00 €

Twin column instead of tilting moment – precise diamond core drilling with your own drill motor.

COMBINATOR SOLO

The COMBINATOR SOLO is the twin-column drill stand system without drill motor – for your existing wet drill motor with a collar up to Ø 53 mm. Because the drill works centrally between two columns, there is no tilting moment: the lever suction cups are loaded evenly and nothing tilts. The feed lever transmits the force via a continuous shaft to both racks – for an even, smooth drilling feed.
Compact, light (3 kg) and with a low overall height, the SOLO also fits where space is tight. Two lever suction cups Ø 120 mm hold it securely on smooth surfaces, and it drills up to Ø 70 mm with a drilling stroke of 150 or 230 mm.
And it grows with your tasks: from surface drilling and rough surfaces to edge drilling in facade panels.

Made in Germany – for professional continuous use

No tilting moment

Drilling takes place centrally between two columns – nothing tilts, the suction cups hold evenly.

Even feed

A continuous shaft drives both racks – smooth and precise.

For your drill motor

Machine mount up to Ø 53 mm – suitable for five Galeski drill motors.

Grows with your tasks

Expandable for rough surfaces and edge drilling in facade panels.

Special features

  • Twin-column principle without tilting moment – no tilting, evenly loaded suction cups.
  • Feed via a continuous shaft to two gear wheels and two racks.
  • Light and compact: 3 kg, low overall height – even where space is tight.
  • 2 lever suction cups Ø 120 mm with clamp holder on the drill column for smooth surfaces.
  • Rubberised base plate with water collection opening, drilling slurry can be extracted with a wet vacuum cleaner via hose and adapter.
  • Centre finder and splash guard caps Ø 22 / 40 / 68 mm.
  • Drilling stroke 150 or 230 mm, expandable at any time.

Application

Drill stand for wet diamond core drilling up to Ø 70 mm in mineral materials such as marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass or sandstone – together with a matching wet drill motor (collar up to Ø 53 mm).

Application examples and combinations

  • Surface drilling on smooth surfaces: directly with the items included – lever suction cups, centre finder, splash guard caps.
  • Matching drilling motor: up to Ø 30 mm at high speed: JOKER SPEED; up to Ø 70 mm with strong torque: JOKER MAXI, JOKER MAXI BL, POLIFOX 1700 or DIAMOND 1800. Motors with a smaller collar with machine mount reducer 53/43 mm (item no. 029.475). Formerly as a complete system: COMBINATOR SPEED BASIC (item no. 002.022.002 / 002.022.019) and COMBINATOR MAXI BASIC (item no. 002.022.001 / 002.022.014).
  • Rough surfaces: with vacuum suction plate (item no. 002.022.011, connection for vacuum pump) or vacuum suction plate with Venturi unit (item no. 002.022.010, for compressed air). With Venturi ex works: COMBINATOR SOLO PLUS.
  • Edge drilling, e.g. into the end face of facade panels: with the angle clamping unit (item no. 002.022.007) – clamping thickness up to 12 cm, swivelling and rotating stop rail for an exact edge distance: two adjustable corner distances (swivels 180°), rotates 360° to mirror the drill holes onto the opposite side of the panel. Formerly available as a complete system: COMBINATOR FASSADE (item no. 002.022.008) and, for surface and edge drilling, COMBINATOR UNIVERSAL (item no. 002.022.003 / 002.022.020).

Modules and complete systems are available on request.

Technical data

Machine mount: max. Ø 53 mm
Drill Ø: up to 70 mm
Drilling stroke: 150 or 230 mm
Operating mode: Wet
Mounting: 2 lever suction cups Ø 120 mm (smooth surfaces)
Drill holders: M14 and R 1/2″
Weight: 3 kg

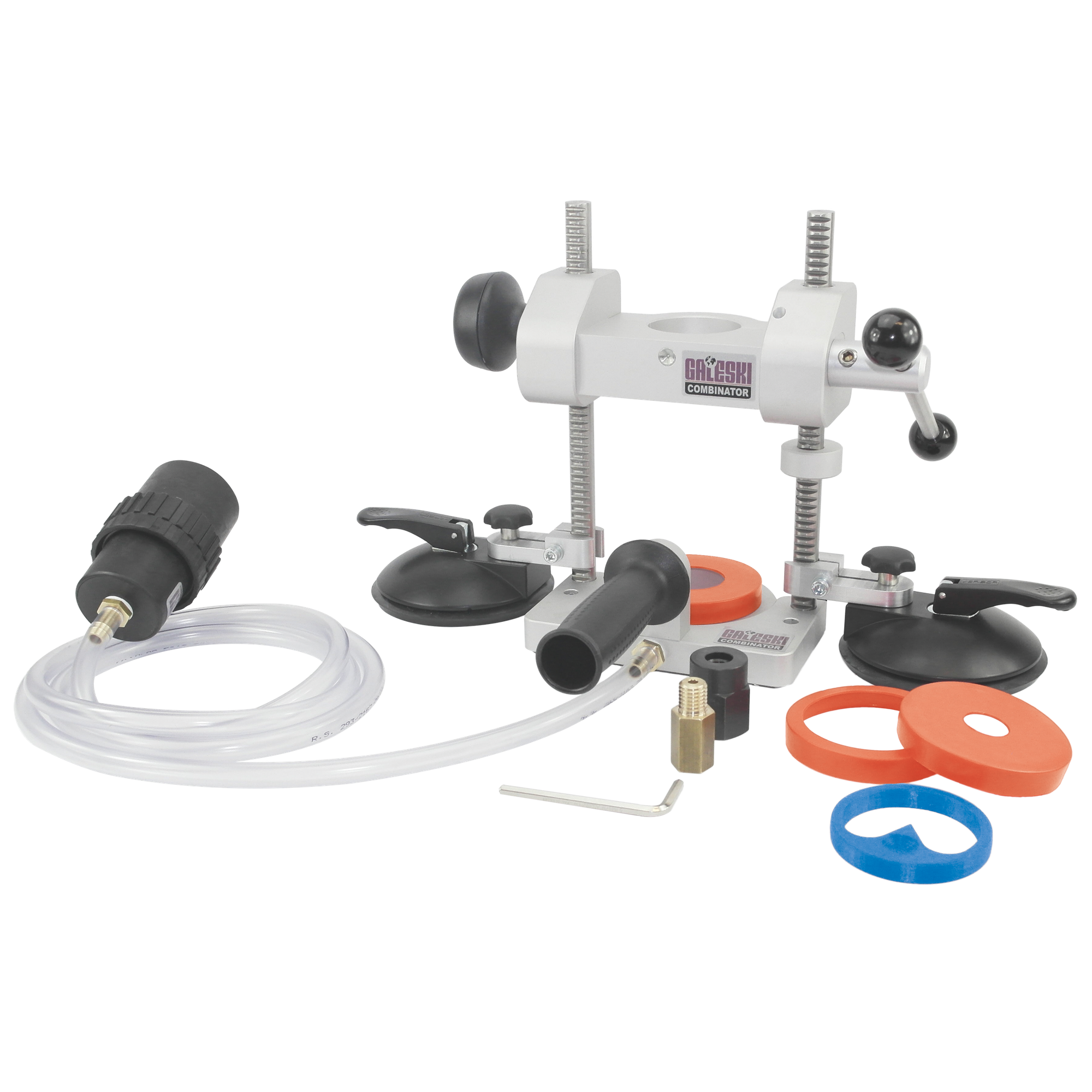

Included

1 x twin-column drill stand with rubberised base plate and water collection opening
1 x handle
1 x hose and adapter for wet vacuum cleaner
3 x plastic splash guard caps with drill opening Ø 22 / 40 / 68 mm
1 x centre finder
2 x lever suction cups Ø 120 mm with clamp holder on the drill column
2 x drill holders for M14 and R 1/2″
1 x Allen key 5 mm
In a box

Spare parts COMBINATOR SOLO

Click a number in the drawing – the part is marked in the list. 58 parts, ready to order. Applies to item no. 002.022.004 · 002.022.012.

Exploded view Combinator Basic with position numbers
Move the drawing sideways, tap a number
58 parts
Spare parts Combinator Basic
Pos.PartPriceCart
1BodyItem no. 150.007.001

273,00 €

Add to cart
2HolderItem no. 150.007.002

49,50 €

Add to cart
3BreakItem no. 150.007.003

10,00 €

Add to cart
4Cover2× installedItem no. 150.007.004

24,50 €

Add to cart
5Sleeve4× installedItem no. 150.007.005

7,30 €

Add to cart
6Holder complete incl. Pos.7Item no. 150.007.006

10,00 €

Add to cart
7NutItem no. 112.100.008

0,60 €

Add to cart
8WasherItem no. DI012508.4

0,40 €

Add to cart
9ScrewItem no. 111.010.818

1,30 €

Add to cart
10Screw4× installedItem no. 111.140.817

1,80 €

Add to cart
11Washer2× installedItem no. 113.050.800

0,60 €

Add to cart
12Shim ring4× installedItem no. 105047

1,80 €

Add to cart
13Collar bushing2× installedItem no. 132.000.001

6,60 €

Add to cart
14Gear wheel2× installedItem no. 150.007.007

15,60 €

Add to cart
15Gear wheel2× installedItem no. 150.007.008

22,00 €

Add to cart
16Dowel pin2× installedItem no. 405909002

0,90 €

Add to cart
17Grub screwItem no. DI091406006A2

0,35 €

Add to cart
18Grease nippleItem no. 405120001

3,00 €

Add to cart
19ShaftItem no. 150.007.009

23,50 €

Add to cart
20Holder for crank handleItem no. 150.007.010

22,50 €

Add to cart
21Crank handleItem no. 150.007.011

24,00 €

Add to cart
22Grub screw2× installedItem no. 111.510.814

0,50 €

Add to cart
23Ball knob2× installedItem no. 116.000.010

5,10 €

Add to cart
24Grub screwItem no. 100.627

1,60 €

Add to cart
25aToothed rack, stroke 15cm2× installedItem no. 150.007.012

125,00 €

Add to cart
25bToothed rack, stroke 23cm2× installedItem no. 150.007.013

155,00 €

Add to cart
26Base plateItem no. 150.007.014

119,00 €

Add to cart
27Holder for handleItem no. 150.007.015

21,50 €

Add to cart
28Depth stopItem no. 150.007.016

18,50 €

Add to cart
29Rubber coating, adhesiveItem no. 150.007.017

12,00 €

Add to cart
30Screw2× installedItem no. 111.270.614

0,80 €

Add to cart
31Screw2× installedItem no. 111.100.613

0,60 €

Add to cart
32ScrewItem no. 111.270.611

3,90 €

Add to cart
33HandleItem no. 100.753A

6,00 €

Add to cart
34ScrewItem no. DI093308030VZ8

1,10 €

Add to cart
35Hose connector2× installedItem no. 100.429

3,05 €

Add to cart
36Suction adapter with hoseItem no. 100.439A

28,00 €

Add to cart
36aHose 2m2× installedItem no. 100.098

4,10 €

Add to cart
36bSuction adapterItem no. 003.036.455

21,00 €

Add to cart
37Central point finderItem no. 002.022.016

18,00 €

Add to cart
38aSplash guard cap Ø22Item no. 150.007.019

9,00 €

Add to cart
38bSplash guard cap Ø40Item no. 150.007.020

9,00 €

Add to cart
38cSplash guard cap Ø68Item no. 150.007.021

9,00 €

Add to cart
38dSplash guard cap Ø customized0× installedItem no. 150.007.022

9,00 €

Add to cart
39Knob2× installedItem no. 101.566

5,80 €

Add to cart
40Washer2× installedItem no. DI902106VZ

0,30 €

Add to cart
41aClamp holder, rightItem no. 150.007.023

24,00 €

Add to cart
41bClamp holder, leftItem no. 150.007.024

24,00 €

Add to cart
42Washer2× installedItem no. DI012506.4

0,30 €

Add to cart
43Screw2× installedItem no. DI091206030VZ9

0,45 €

Add to cart
44Carriage bolt2× installedItem no. DI060306025VZ

0,22 €

Add to cart
45Suction cup2× installedItem no. 100.420

63,60 €

Add to cart
46Pin2× installedItem no. 100.407

7,00 €

Add to cart
47Lever2× installedItem no. 100.406

7,85 €

Add to cart
48Plate2× installedItem no. 100.411

1,70 €

Add to cart
49Housing2× installedItem no. 100.445

24,90 €

Add to cart
50Spring2× installedItem no. 100.409

4,15 €

Add to cart
51Suction plate2× installedItem no. 100.408

13,75 €

Add to cart

Drawing and list as PDF · Spare parts search for all machines

Click a number: the part is marked in the list.

Product safety

Manufacturer: Galeski Manufaktur Innovative Maschinen - Peter Galeski e.K.
Boschstr. 4, 56457 Westerburg, Germany
info@galeski.de
Warnings and safety information:

For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions and those of the drill motor used carefully before first use.
Intended use: drill stand for core drilling up to Ø 70 mm in mineral materials (e.g. marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass, sandstone) with a matching wet drill motor (collar up to Ø 53 mm).
When used with a drill motor with water supply, the applicable accident prevention regulations in Germany permit operation of the drill stand only in combination with an isolating transformer or a PRCD safety switch.
Check the suction lifters for damage and soiling before each use; do not use them if in doubt. Secure workpieces so that they cannot move due to the torque of the drill.
Wear personal protective equipment: safety goggles or face protection, hearing protection, protective gloves; depending on the application, a dust mask and an apron.
Beware of concealed electrical cables, gas and water pipes – check the working area, e.g. with a metal detector. Do not reach into the danger zone of the running machine.
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions.
