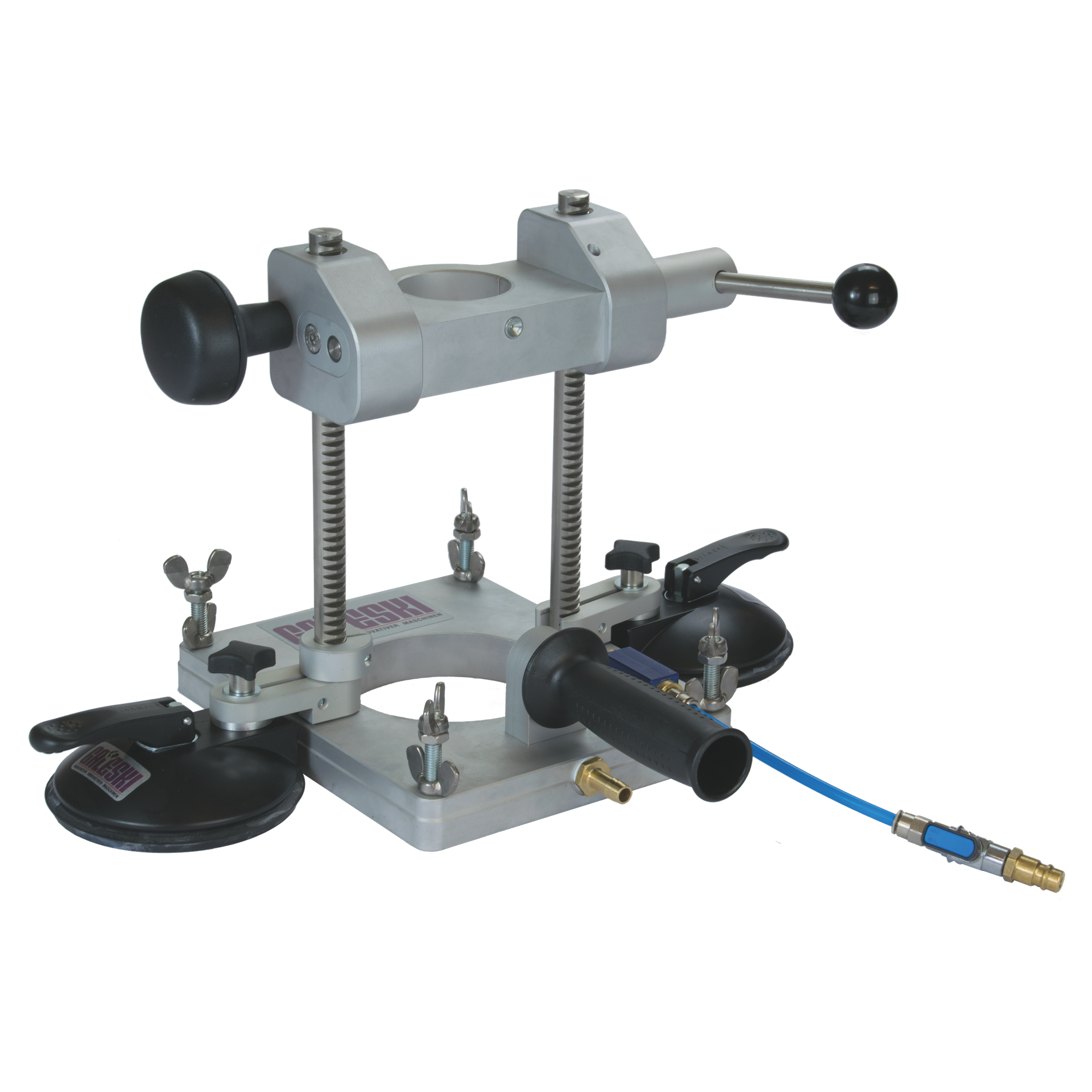

Twin-column drill stand without drill motor with permanently fitted Venturi unit for rough surfaces – wet core drilling up to Ø 107 mm, machine mount up to Ø 53 mm, drilling stroke 150 or 230 mm.
From: 1.279,00 €

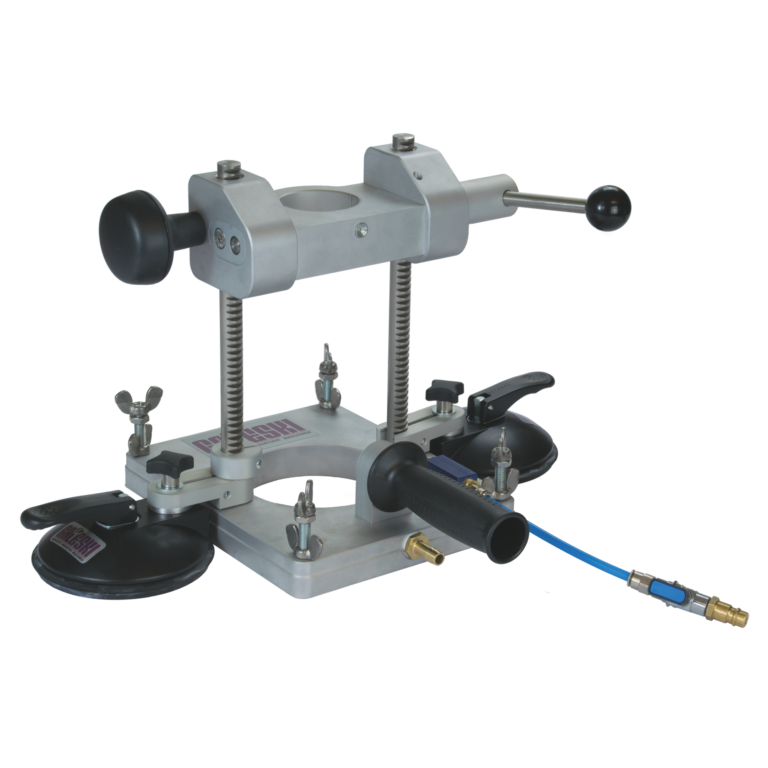

The COMBINATOR SOLO PLUS is the twin-column drill stand system without drill motor for large core drill bits and difficult substrates. The base plate with suction sealing lips on the underside and a permanently fitted Venturi unit holds fast by compressed air even on rough surfaces – on smooth surfaces, two lever suction cups Ø 120 mm provide additional hold. It drills up to Ø 107 mm with a drilling stroke of 150 or 230 mm.
As with every COMBINATOR, the drill works centrally between two columns: no tilting moment, no tilting, even feed via a continuous shaft to both racks.
For your existing wet drill motor with a collar up to Ø 53 mm – ideal with POLIFOX 1700 VARIO or DIAMOND 1800 for large core drill bits.
Drilling takes place centrally between two columns – nothing tilts, the suction cups hold evenly.
A continuous shaft drives both racks – smooth and precise.
Large drill opening in the base plate – for powerful drill motors with a collar up to Ø 53 mm.
Permanently fitted Venturi unit holds fast by compressed air even on rough surfaces.
Drill stand for wet diamond core drilling up to Ø 107 mm in mineral materials such as marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass or sandstone – together with a matching wet drill motor (collar up to Ø 53 mm).
Application examples and combinations
Modules and complete systems are available on request.
Machine mount: max. Ø 53 mm
Drill Ø: up to 107 mm
Drilling stroke: 150 or 230 mm
Operating mode: Wet
Mounting: Venturi unit (compressed air, rough surfaces) and 2 lever suction cups Ø 120 mm (smooth surfaces)
Drill holders: M14 and R 1/2″
Weight: 4.4 kg
1 x twin-column drill stand – base plate with suction sealing lips on the underside and ready-fitted Venturi unit, water collection opening
1 x handle

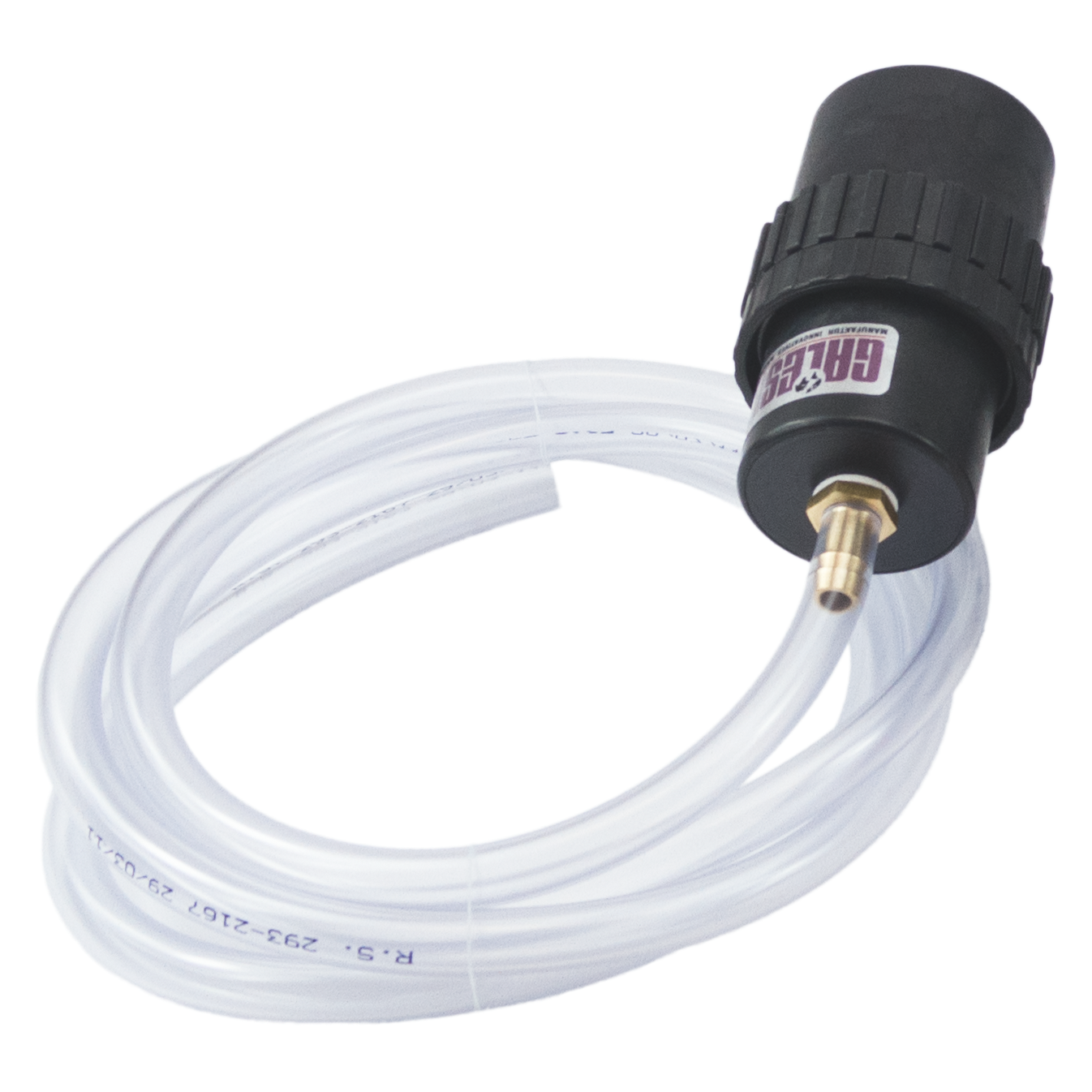

1 x hose and adapter for wet vacuum cleaner

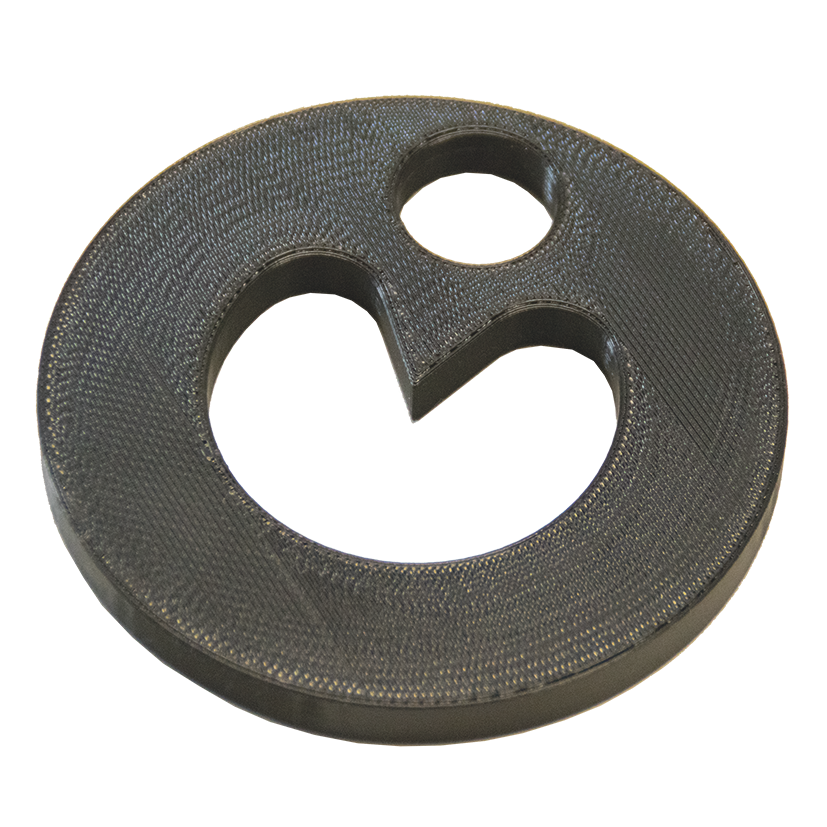

1 x centre finder
2 x lever suction cups Ø 120 mm with clamp holder on the drill column

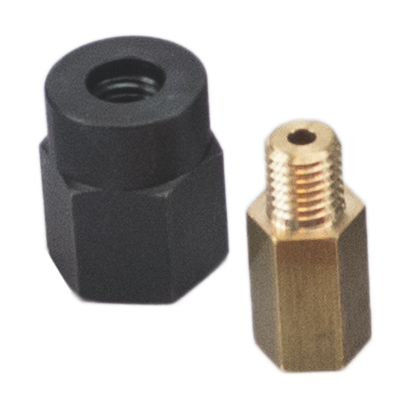

2 x drill holders for M14 and R 1/2″

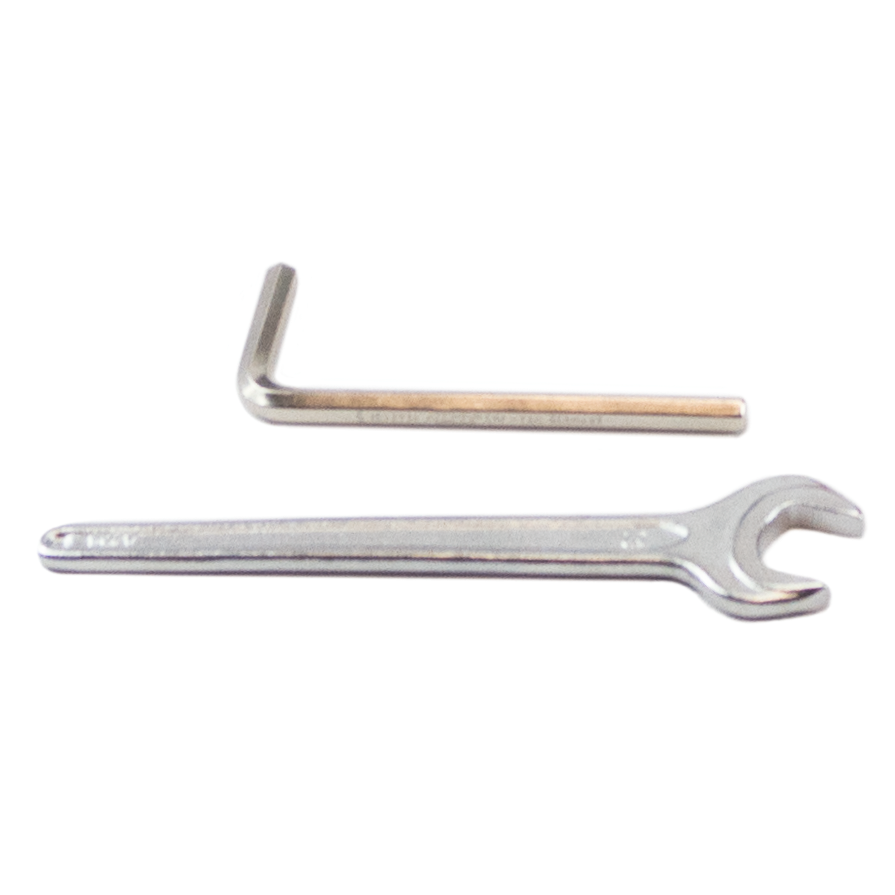

1 x Allen key 5 mm
In a box
Joker Speed Vario
(Varianten)
Wet angle grinder with high drilling speed for diamond core bits, light grinding and polishing work.
From: 593,00 €
Joker Maxi/2 Vario
(Varianten)
Wet all-rounder for drilling, grinding and polishing mineral materials, with variable speed control.
From: 609,00 €
Joker Maxi BL
(Varianten)
Powerful brushless all-rounder for drilling, milling, grinding and polishing.
From: 618,00 €
Polifox 1700 Vario
(Varianten)
Powerful professional wet polisher with high power reserves, a stable spindle design and precise speed control for demanding stone polishing.
From: 659,00 €
Diamond 1800
Art.Nr.: 036.160
Powerful 2-speed wet core drill motor with 1,800 W, water swivel, PRCD and mechanical safety clutch – diamond core drill bits wet up to Ø 107 mm, freehand up to Ø 132 mm.
1.184,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions and those of the drill motor used carefully before first use.
Intended use: drill stand for core drilling up to Ø 107 mm in mineral materials (e.g. marble, granite, engineered stone, fine porcelain stoneware, ceramics, glass, sandstone) with a matching wet drill motor (collar up to Ø 53 mm).
When used with a drill motor with water supply, the applicable accident prevention regulations in Germany permit operation of the drill stand only in combination with an isolating transformer or a PRCD safety switch.
Check the suction lifters for damage and soiling before each use; do not use them if in doubt. Secure workpieces so that they cannot move due to the torque of the drill.
Wear personal protective equipment: safety goggles or face protection, hearing protection, protective gloves; depending on the application, a dust mask and an apron.
Beware of concealed electrical cables, gas and water pipes – check the working area, e.g. with a metal detector. Do not reach into the danger zone of the running machine.
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions.
