SKU 003.036.054
Large high-performance dry polisher with reinforced spindle bearings, maximum power and constant, smooth running.
619,00 €
Belongs to: Genius Polisher Series – Compare models

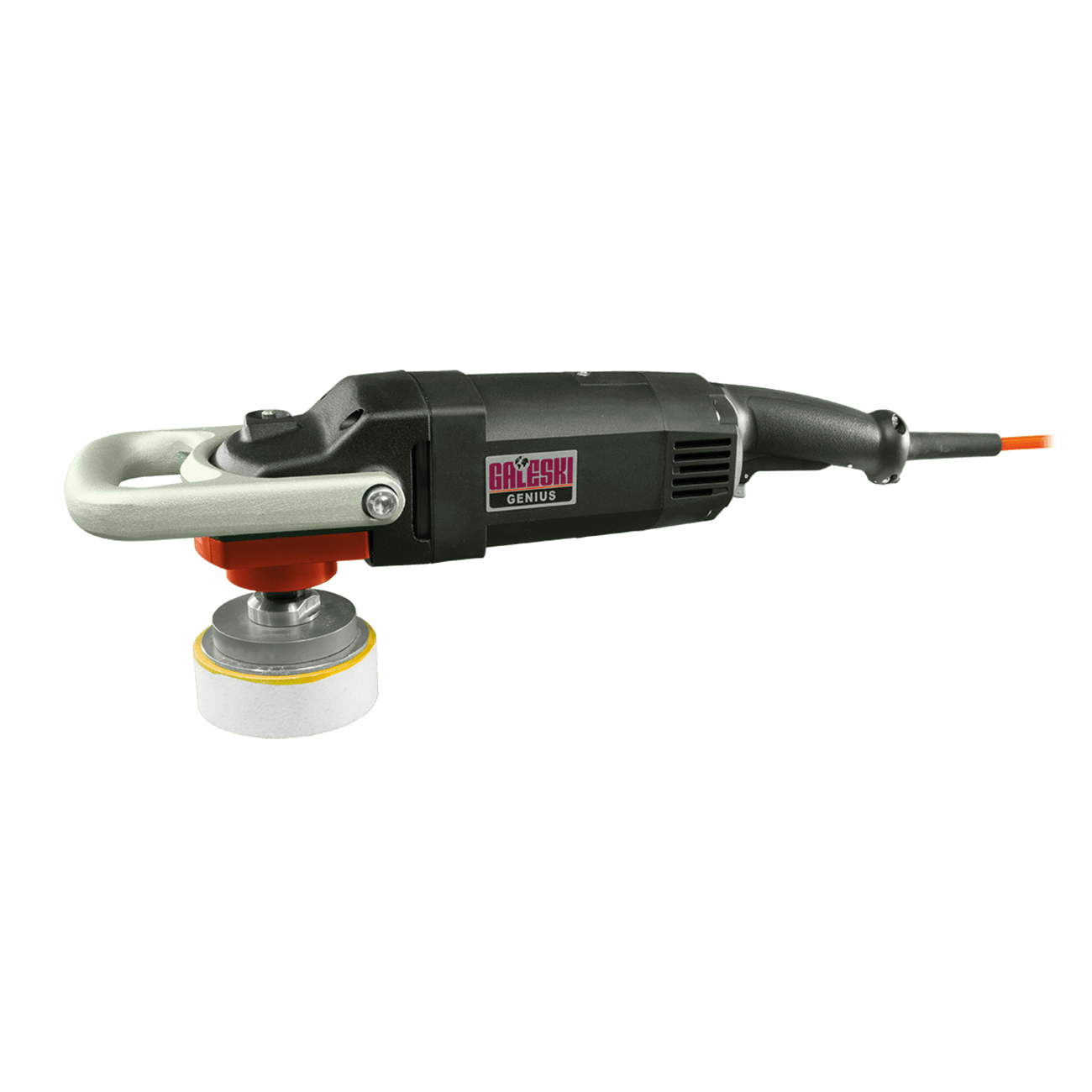

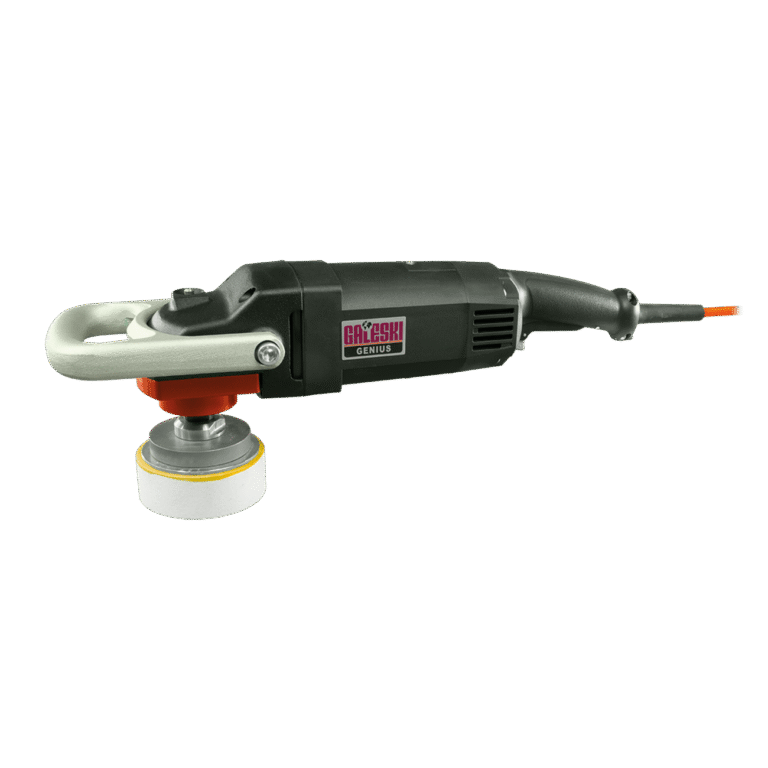

The GENIUS 1802 is a powerful large polisher for heavy dry polishing and demanding stone working. With its 1,800 W motor and reinforced spindle bearings it delivers enormous pulling power and runs smoothly and under control even under high load. The robust construction, the aluminium end shield with excellent heat dissipation and the electronic soft start make the GENIUS 1802 a reliable tool for professional continuous use.
Thanks to its ergonomic design and D-handle, the machine sits securely in the hand and allows precise work even on long grinding and polishing sections. Two service flaps make it easy to change the carbon brushes quickly – a clear advantage in tough everyday site work.
Ideal for stonemasons, restorers, tilers and renovators who need maximum power, stability and consistently high polishing quality.
| Voltage | 230 V |
|---|---|
| Spindle thread | M14 |
| Power | 1,800 W |
| Weight | 4.4 kg |
| Speed control | Constant |
| Speed | 2,000 rpm |
| Tool Ø max. | 180 mm |
| Protection | Soft start |
Click a number in the drawing – the part is marked in the list. 57 parts, ready to order. Applies to item no. 003.036.054.

| Pos. | Part | Price | Cart |
|---|---|---|---|
| 1 | Handle complete incl. Pos. 2+3Item no. 150.002.002 | 49,80 € plus shipping | Add to cart |
| 2 | Screw2× installedItem no. 111.101.011 | 0,40 € plus shipping | Add to cart |
| 3 | Washer2× installedItem no. 101.447 | 0,40 € plus shipping | Add to cart |
| 4 | Gear box complete incl. Pos.5-9Item no. 170.000.022 | 47,25 € plus shipping | Add to cart |
| 5 | Sleeve 2Item no. 170.000.015 | 8,40 € plus shipping | Add to cart |
| 6 | PinItem no. 170.000.016 | 8,40 € plus shipping | Add to cart |
| 7 | SpringItem no. 170.000.017 | 0,45 € plus shipping | Add to cart |
| 8 | Sleeve 1Item no. 170.000.018 | 8,40 € plus shipping | Add to cart |
| 9 | Needle sleeveItem no. 131.000.007 | 7,50 € plus shipping | Add to cart |
| 10 | Pin2× installedItem no. 170.000.025 | 0,45 € plus shipping | Add to cart |
| 11 | Seal 1-5Item no. 170.000.023 | 2,55 € plus shipping | Add to cart |
| 12 | Screw4× installedItem no. 170.000.024 | 0,45 € plus shipping | Add to cart |
| 13 | Locking ringItem no. 117.341.210 | 0,50 € plus shipping | Add to cart |
| 14 | Ball bearingItem no. 100.894 | 17,20 € plus shipping | Add to cart |
| 15 | Locking ringItem no. 117.373.212 | 0,65 € plus shipping | Add to cart |
| 16 | Armature complete, incl. Pos. 17+18Item no. 170.000.019 | 147,00 € plus shipping | Add to cart |
| 17 | Ball bearingItem no. 100.645 | 10,00 € plus shipping | Add to cart |
| 18 | Bearing sleeveItem no. 170.000.020 | 2,10 € plus shipping | Add to cart |
| 19 | Air deflector ringItem no. 170.000.009 | 3,80 € plus shipping | Add to cart |
| 20 | Screw2× installedItem no. 170.000.012 | 0,45 € plus shipping | Add to cart |
| 21 | Washer2× installedItem no. 100.058 | 0,50 € plus shipping | Add to cart |
| 22 | FieldItem no. 170.000.013 | 79,20 € plus shipping | Add to cart |
| 23 | Ring lug2× installedItem no. 100.815 | 0,65 € plus shipping | Add to cart |
| 24 | Circular connector, maleItem no. 100.670 | 0,85 € plus shipping | Add to cart |
| 25 | HousingItem no. 170.000.005 | 37,80 € plus shipping | Add to cart |
| 26 | Cover2× installedItem no. 170.000.033 | 1,60 € plus shipping | Add to cart |
| 27 | Screw2× installedItem no. 170.000.034 | 0,55 € plus shipping | Add to cart |
| 28 | Replacement Carbon Brushes (Pair) - for Genius 1802Item no. 170.000.032 | 21,00 € plus shipping | Add to cart |
| 29 | Screw2× installedItem no. 170.000.035 | 0,55 € plus shipping | Add to cart |
| 30 | Washer2× installedItem no. 100.146 | 0,55 € plus shipping | Add to cart |
| 31 | U-holder2× installedItem no. 170.000.037 | 0,55 € plus shipping | Add to cart |
| 32 | Brushholder2× installedItem no. 170.000.030 | 8,85 € plus shipping | Add to cart |
| 33 | Screw2× installedItem no. 170.000.031 | 0,55 € plus shipping | Add to cart |
| 34 | Start-up current limiterItem no. 170.000.028 | 60,40 € plus shipping | Add to cart |
| 35 | Circular connector, femaleItem no. 100.669 | 0,85 € plus shipping | Add to cart |
| 36 | Cable lug, redItem no. 100.186 | 0,75 € plus shipping | Add to cart |
| 37 | Cable lug, blueItem no. 100.153 | 0,75 € plus shipping | Add to cart |
| 38 | ClampItem no. 100.215 | 0,95 € plus shipping | Add to cart |
| 39 | Screw2× installedItem no. 170.000.036 | 0,55 € plus shipping | Add to cart |
| 40 | Switch handle setItem no. 170.000.007 | 9,80 € plus shipping | Add to cart |
| 41 | SwitchItem no. 100.735 | 19,00 € plus shipping | Add to cart |
| 42 | Sealing part2× installedItem no. 150.002.003 | 0,40 € plus shipping | Add to cart |
| 43 | Cord clampItem no. 101.122 | 0,50 € plus shipping | Add to cart |
| 44 | Screw4× installedItem no. 100.661 | 0,60 € plus shipping | Add to cart |
| 45 | Screw4× installedItem no. 170.000.011 | 0,85 € plus shipping | Add to cart |
| 46 | Screw2× installedItem no. 170.000.010 | 0,85 € plus shipping | Add to cart |
| 47 | Protection hoseItem no. 170.000.006 | 2,10 € plus shipping | Add to cart |
| 48 | Cord with Schuko plugItem no. 100.821 | 28,00 € plus shipping | Add to cart |
| 49 | Bevel gearItem no. 170.000.021 | 60,90 € plus shipping | Add to cart |
| 50 | SleeveItem no. 150.003.002 | 9,45 € plus shipping | Add to cart |
| 51 | Locking ringItem no. 101.245 | 6,55 € plus shipping | Add to cart |
| 52 | BearingItem no. 131.000.006 | 31,90 € plus shipping | Add to cart |
| 53 | End plateItem no. 150.003.001 | 66,15 € plus shipping | Add to cart |
| 54 | ScrewItem no. 111.100.511 | 0,85 € plus shipping | Add to cart |
| 55 | SpindleItem no. 160.000.700 | 39,90 € plus shipping | Add to cart |
| 56 | Grease 45gItem no. 024.415D | 8,00 € plus shipping | Add to cart |
| 57 | Handle, at the side (accessory, not ill.)Item no. 170.000.004not illustrated | 13,40 € plus shipping | Add to cart |
Exploded view as of 26.05.2023 · Drawing and list as PDF · Spare parts search for all machines
For professional use by trained specialist personnel only.
Before first use, read the enclosed original operating instructions carefully and follow them.
Intended use: polishing and grinding mineral materials (e.g. marble, granite, engineered stone, porcelain stoneware, ceramics, glass, sandstone). For dry use only; the machine is not suitable for cutting.
Personal protective equipment must be worn during operation: safety goggles and hearing protection; protective gloves, sturdy non-slip footwear and an apron are recommended.
Noise emission: sound pressure level 89 dB(A), sound power level 102 dB(A) – hearing protection required. Vibration: 2.5 m/s².
Dust produced when working stone (crystalline silica) is harmful to health. Material containing asbestos must not be worked.
Not suitable for use by children.
For complete safety instructions, see the original operating instructions. General safety instructions as PDF (15 languages)
