Generation 2 · Wet/Dry

Ecomax 230

SKU 003.036.649

Wet and dry stone cutter with high power reserves.

Ideal for professional continuous use thanks to high power reserves and a large tool Ø of up to 230 mm.
  • 2,400 W
  • 230 V
  • Wet + dry
  • Constant

From: 659,00 €

Suitable for

Material
  • Marble
  • granite
  • engineered stone
  • porcelain stoneware
  • ceramics
  • glass
  • sandstone
Work
  • Wet and dry cutting
  • cutting depth up to 63 mm
  • discs up to Ø 230 mm
Users
  • Stonemasons
  • tilers

Made in Germany – for professional continuous use

  • Cutting wet or drystone cutter for marble, granite, engineered stone, porcelain stoneware and ceramics with discs up to Ø 230 mm and up to 63 mm cutting depth.
  • Power reserves for continuous use2,400 W motor power for large discs and deep cuts in professional continuous operation.
  • Constant speed 6,600 rpmfixed speed for even cutting with large discs.
  • Gentle startelectronic soft start reduces the inrush current by about half and protects motor and gearbox.
  • Safe wet workingPRCD safety switch (DI) or CEE plug for the isolating transformer, plus restart cutout after a power failure.

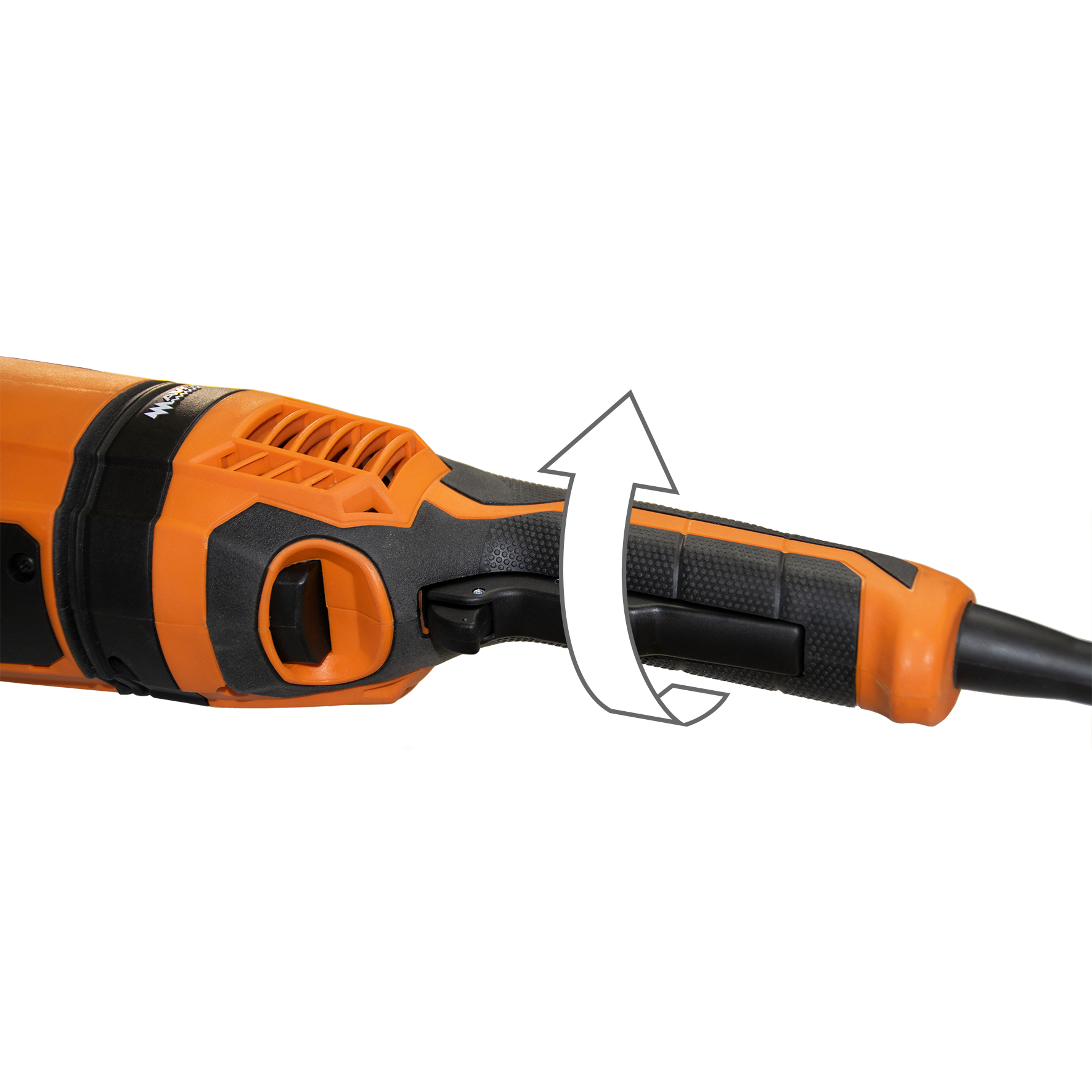

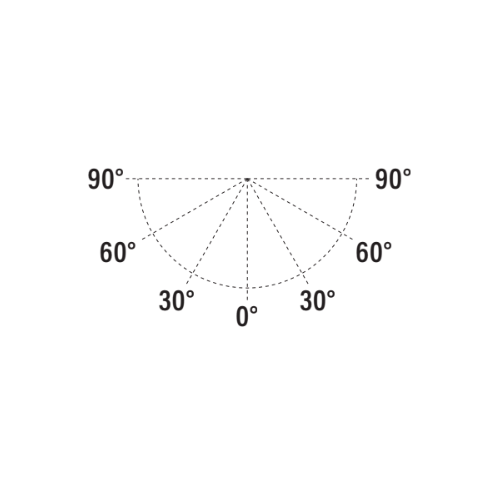

  • A grip for every working positionrotating switch handle with 7 detent positions and D-handle – flexible in every working position.
  • Water right at the discjointed hose and water regulating valve meter the cooling precisely in wet operation.
  • Guard with removable front coveradjustable guard, M14 spindle thread and splash guard included.

Wet or dry, with power reserves – the stone cutter for large discs.

Ecomax 230

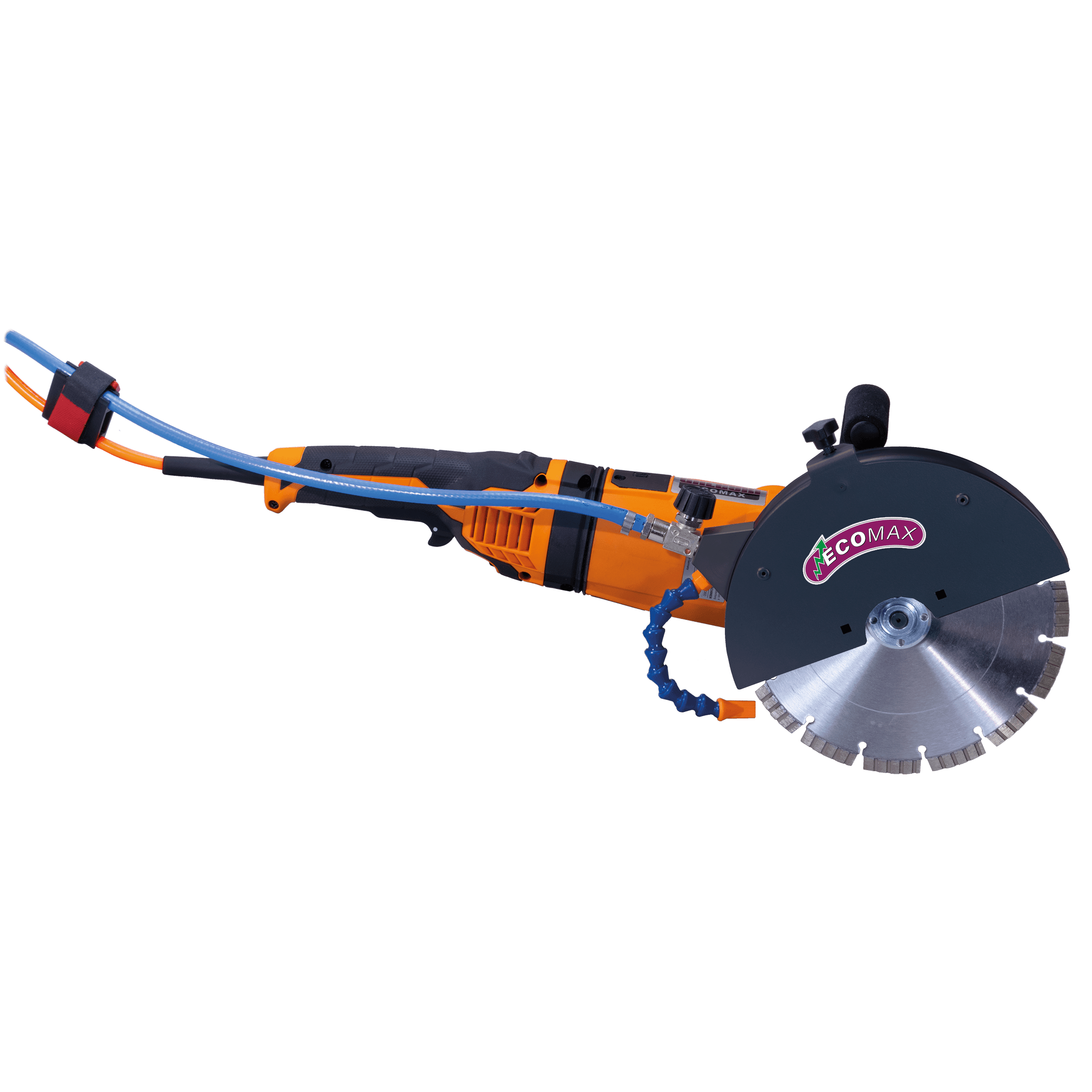

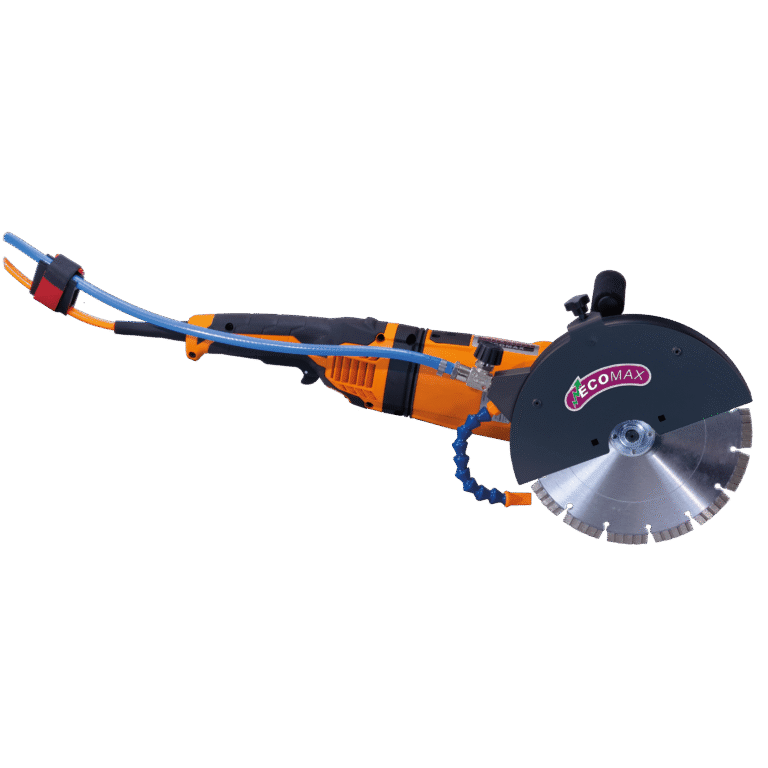

The ECOMAX 230 is a robust wet and dry stone cutter with high power reserves for professional continuous use. With 2,400 W motor power, a tool Ø of up to 230 mm and a cutting depth of up to 63 mm, it is suitable for cutting mineral materials such as marble, granite, engineered stone, porcelain stoneware, ceramics, glass or sandstone. The rotating switch handle with 7 detent positions allows flexible work in any position, while electronic soft start and restart cutout ensure safe, comfortable operation. For stonemasons and tilers looking for a powerful stone cutter for demanding continuous use, the ECOMAX 230 is the right choice.

Power2,400 W
Voltage230 V
Operating conditionWet + dry
Speed controlConstant
Speed6,600 rpm
Tool Ø max.230 mm
Cutting depth max.63 mm
Spindle threadM14 / Ø 22.2 mm
Weight7.4 kg
  • 1 x silicone mains cable 4 m
  • 1 x PRCD safety switch or CEE plug
  • 1 x water hose 2.5 m with brass quick coupling
  • 1 x water regulating valve
  • 1 x jointed hose
  • 1 x adjustable guard with removable front cover
  • 1 x flange and flange nut, pin spanner
  • 1 x socket wrench Ø 6 mm
  • 1 x D-handle
  • 1 x splash guard

Frequently asked questions about the series

Wet or dry?
Both: ECOMAX stone cutters work with water supply or dry – depending on material and site.
Which model fits?
ECOMAX 125 BL: one-handed stone cutter up to 25 mm cutting depth. ECOMAX 180: 1,750 W, adjustable, up to 57 mm. ECOMAX 230: 2,400 W, discs up to Ø 230 mm, up to 63 mm.
PRCD or isolating transformer?
With the PRCD safety switch (DI) the machine works at any socket – for changing job sites. The version with CEE plug runs on the TT 2602 isolating transformer: galvanically isolated from the mains, for the workshop.

Product safety

Manufacturer: Galeski Manufaktur Innovative Maschinen - Peter Galeski e.K.
Boschstr. 4, 56457 Westerburg, Germany
info@galeski.de
Warnings and safety information:

For professional use by trained specialist personnel only.
Before first use, read the enclosed original operating instructions carefully and follow them.
Intended use: cutting mineral materials (e.g. marble, granite, engineered stone, porcelain stoneware, ceramics, glass, sandstone or similar). This machine is suitable for wet and dry use.
As the machine is also intended for wet use, it may only be operated with an isolating transformer or a PRCD safety switch in accordance with the applicable German accident prevention regulations.
Personal protective equipment must be worn when working with the machine: safety goggles and hearing protection. Protective gloves, sturdy non-slip footwear and an apron are recommended.
Noise emission: sound pressure level 96 dB(A), sound power level 107 dB(A) — hearing protection required. Vibration (surface grinding): 8.3 m/s².
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions. General safety instructions as PDF (15 languages)
