Brushless edge processing system with higher efficiency, less heat build-up and a long service life for milling, grinding and polishing stone edges.
From: 1.752,00 €

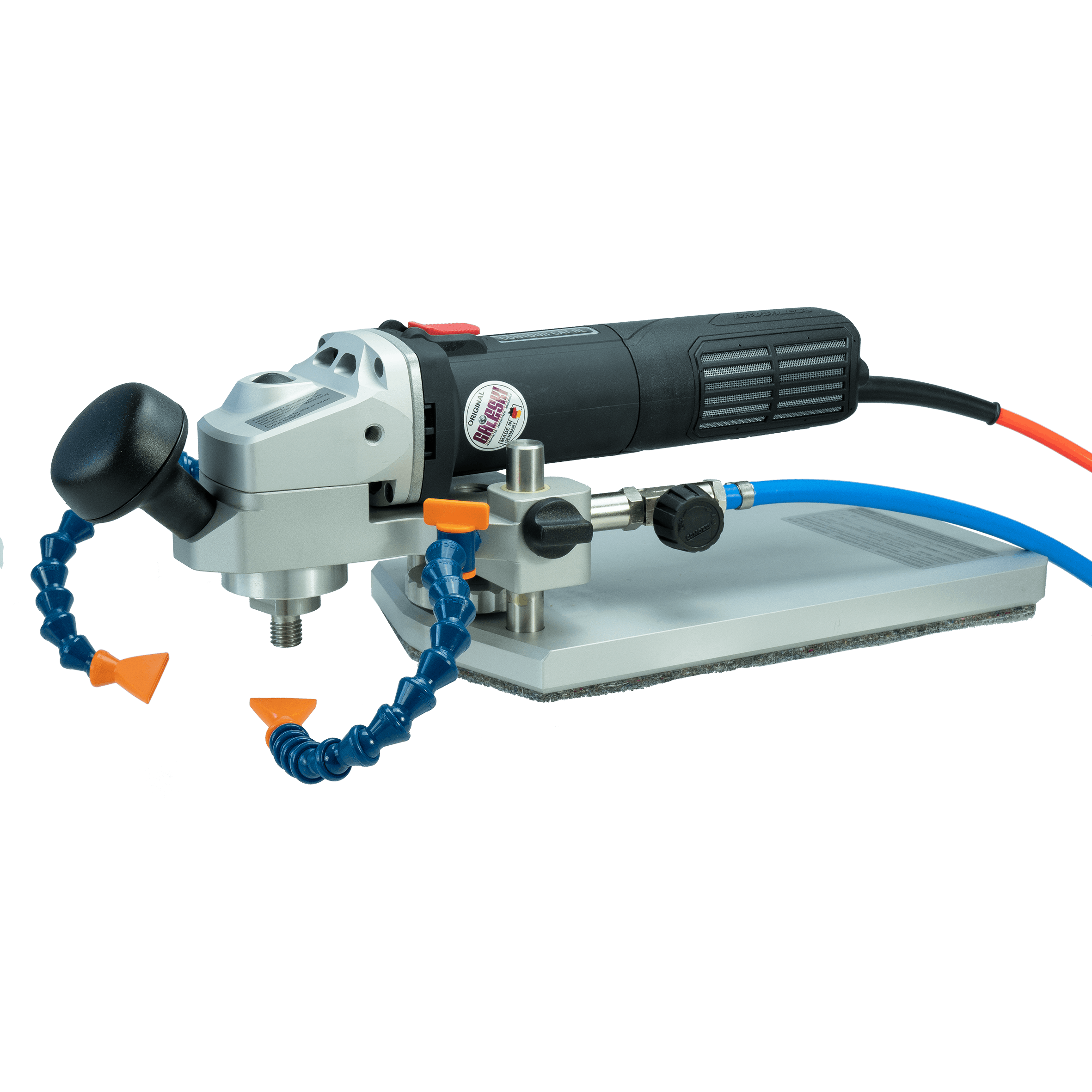

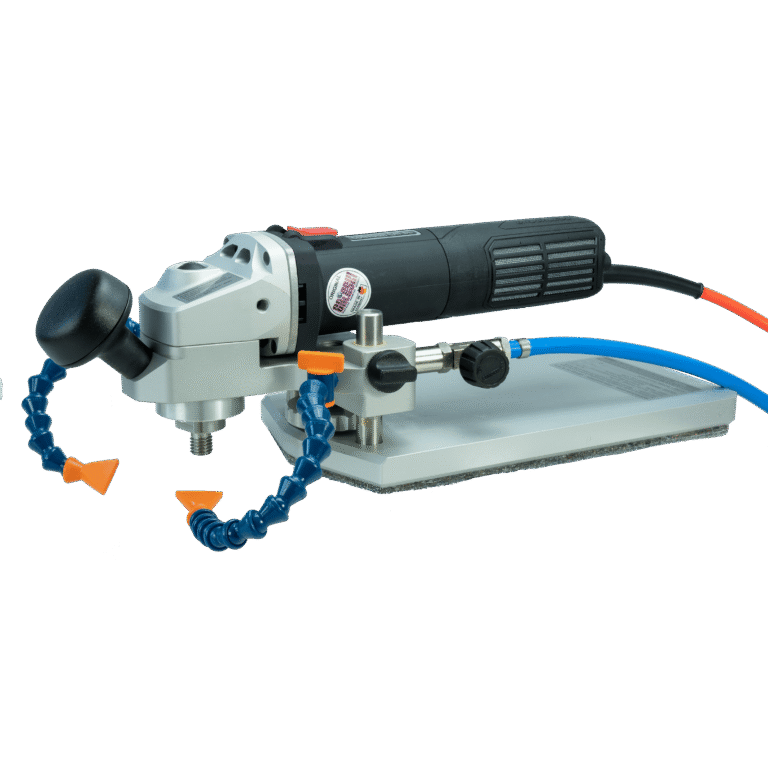

The CONTOUR CAT KS 80 BL is the brushless version of the proven CONTOUR CAT edge processing system: a handy machine for professional work on stone edges – milling, grinding, polishing, profiling and groove milling with just one machine.
The modern brushless motor delivers the same precision as the base model with higher efficiency, less heat build-up and no carbon brush wear – ideal for stonemasons, kitchen makers, tilers and restorers looking for a low-maintenance, durable machine for professional continuous use.
The additional sinusoidal oscillating motion ensures a perfect polish and square edges in marble, granite and ceramics.
Maintenance-free motor without carbon brushes – higher efficiency, cooler running, long service life.
Milling, grinding, polishing, profiling – one machine for all edge work.
Protects motor and gearbox, reduces the inrush current by about half.
Up to 25 mm height adjustment for exact adaptation to any slab thickness.
Edge processing system for stone processing. Particularly suitable for stonemasons, kitchen makers, tilers, restorers – polishing washbasins, stairs, tables, counters and similar in marble, granite and ceramics.
Power: 1,400 W
Voltage: 230 V
Operating mode: wet
Speed control: variable
Speed: 1,600–6,400 rpm
Tool Ø max.: 118 mm (profile cutter) / 180 mm (cutting disc)
Grinding height max.: 60 mm
Height adjustment max.: 25 mm
Spindle thread: M14
Weight: 4.9 kg
1 x silicone mains cable 4 m
1 x water hose 2.5 m with brass quick coupling
1 x internal water supply
1 x external water supply (2 x jointed hose + nozzle)
1 x water regulating valve
1 x base plate with felt and stepless height adjustment
1 x knob handle
1 x PRCD safety switch or CEE plug
1 x open-end spanner 24/27 mm
1 x case
GADIA Oscillator
Art.Nr.: 000.004
Grinding head with vertical oscillating movement for streak-free polishing
405,00 €
GADIA Cyli Grinding and Polishing Cylinders
(Varianten)
Diamond grinding and polishing cylinders for precise processing of natural stone, granite and mineral materials.
From: 115,00 €
GADIA Cyli 4 cm – Granite & Marble
(Varianten)
Diamond grinding and polishing cylinders up to 4 cm for granite and marble.
From: 115,00 €
GADIA Cyli 6 cm – Granite & Marble
(Varianten)
Diamond grinding and polishing cylinders up to 6 cm for granite and marble.
From: 163,00 €
GADIA Cyli 4 cm – Engineered Stone
(Varianten)
Diamond grinding and polishing cylinders up to 4 cm for engineered stone.
122,00 €
GADIA Edge 45°
(Varianten)
Chamfer milling system for 45° chamfers on the upper and lower edges of cut-outs – without turning the workpiece over.
From: 128,00 €
GADIA Router
(Varianten)
End mill system for recessing edges – for flush-mounted hobs and sinks.
From: 63,00 €
GADIA Trim
(Varianten)
Set for calibrating the slab thickness on outer and lower edges – for clean lower edges on worktops and stair treads.
128,00 €
GADIA Connect
(Varianten)
For perfect, surface-flush joints between kitchen worktops – groove cutter set and plastic chips.
From: 44,00 €
GADIA RS Grinding Head
Art.Nr.: 000.014
Grinding head for GADIA CYLI without oscillating movement.
359,00 €
GADIA Cyli Set
(Varianten)
Complete set of diamond grinding and polishing cylinders in a practical grit sequence – at a special set price.
From: 680,00 €
For professional use by trained specialist personnel only.
Read and follow the enclosed original operating instructions carefully before first use.
Intended use: the edge grinder is particularly suitable for polishing washbasins, stairs, tables, counters etc. made of marble, granite and ceramics. Operating mode: wet only — the machine is suitable for operation with water supply only (dry operation burns out the sealing rings of the work spindle).
Personal protective equipment must be worn during operation: safety goggles and hearing protection; protective gloves, sturdy non-slip footwear and an apron are recommended.
Noise emission: sound pressure level 83.6 dB(A), sound power level 94.6 dB(A) – hearing protection required. Vibration: weighted acceleration 9.5 m/s².
Dust produced when working stone (crystalline silica) is hazardous to health. Material containing asbestos must not be processed (observe accident prevention regulation VBG 119 of the German employers’ liability insurance association).
Isolating transformer/PRCD: as the machine is intended for wet use only, applicable accident prevention regulations in Germany permit operation only in combination with an isolating transformer (CEE) or a PRCD safety switch (DI).
Never allow children to use the machine.
For complete safety instructions, see the original operating instructions.
