Generation 4 · Wet

Contour Cat KS 80

SKU 001.000.107

Handy stone edge processing system with smooth running, strong motor power and precise tool guidance.

For professional polishing in continuous use.
  • 230 / 115 V
  • M14
  • 1,750 W
  • 6.5 kg

From: 1.655,00 €

Suitable for

Material
  • Natural stone
  • engineered stone
Work
  • Edge milling
  • grinding
  • polishing
  • profiling
  • groove milling
  • cutting
Users
  • Stonemasons
  • kitchen fitters
  • tilers
  • restorers
Not suitable
  • Dry work – only with water supply

Made in Germany – for professional continuous use

  • Milling, grinding and polishing stone edgesedge processing system for natural and engineered stone – milling, grinding and polishing with water cooling at the edge.
  • Power for wide profilespowerful 1,750 W motor for profile cutters up to Ø 118 mm and cutting discs up to Ø 180 mm.
  • Speed in 7 settings A–G1,700–6,800 rpm at constant speed – controlled surfaces from milling to polishing.
  • Water-cooled in continuous usewater-cooled aluminium end shield for controlled temperatures, service flaps for easy carbon brush changes.
  • Safe wet workingPRCD safety switch (DI) or CEE for the isolating transformer, plus soft start and temperature-dependent overload protection.
  • Steady guidance, exact heightheavy base plate with felt, stepless height adjustment up to 25 mm, grinding height up to 60 mm, straight handle and knob handle.
  • Streak-free polishing with the oscillatorthe patented GADIA OSCILLATOR grinding head adds a vertical stroke to the rotation – for streak-free, high-quality visible edges.
  • Water from inside and outsideflush head and two jointed hoses cool the tool and reduce wear, the splash guard gives a clear view of the edge.

In detail

  • Height adjustmentHeight adjustmentStepless up to 25 mm, grinding height up to 60 mm
  • Water inside and outsideWater inside and outsideFlush head and two jointed hoses
  • Speed in 7 settings A–GSpeed in 7 settings A–G1,700–6,800 rpm, kept constant
  • Base plate with feltBase plate with feltProtects polished surfaces

Precise stone edge processing – smooth running, powerful and exactly guided.

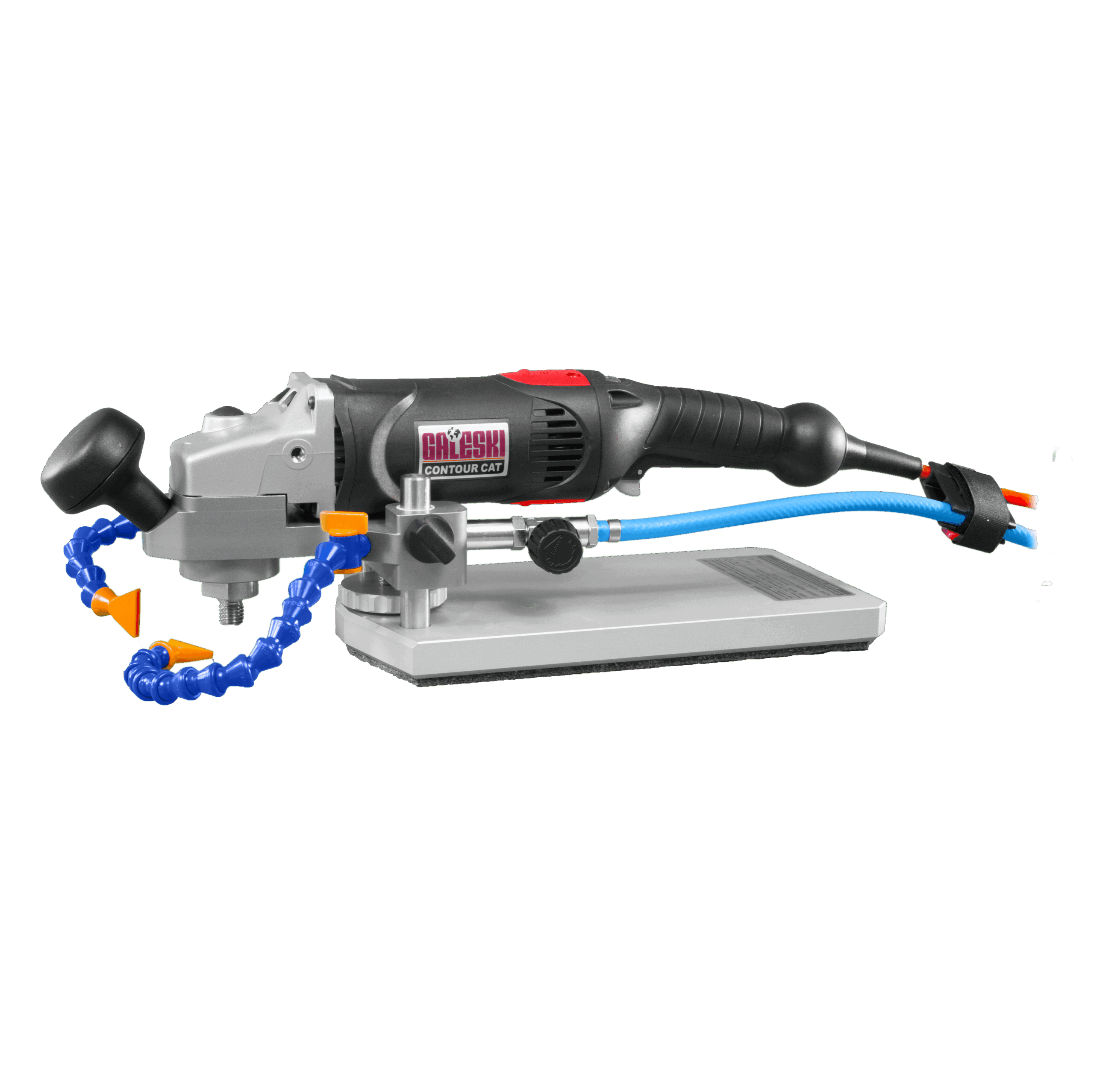

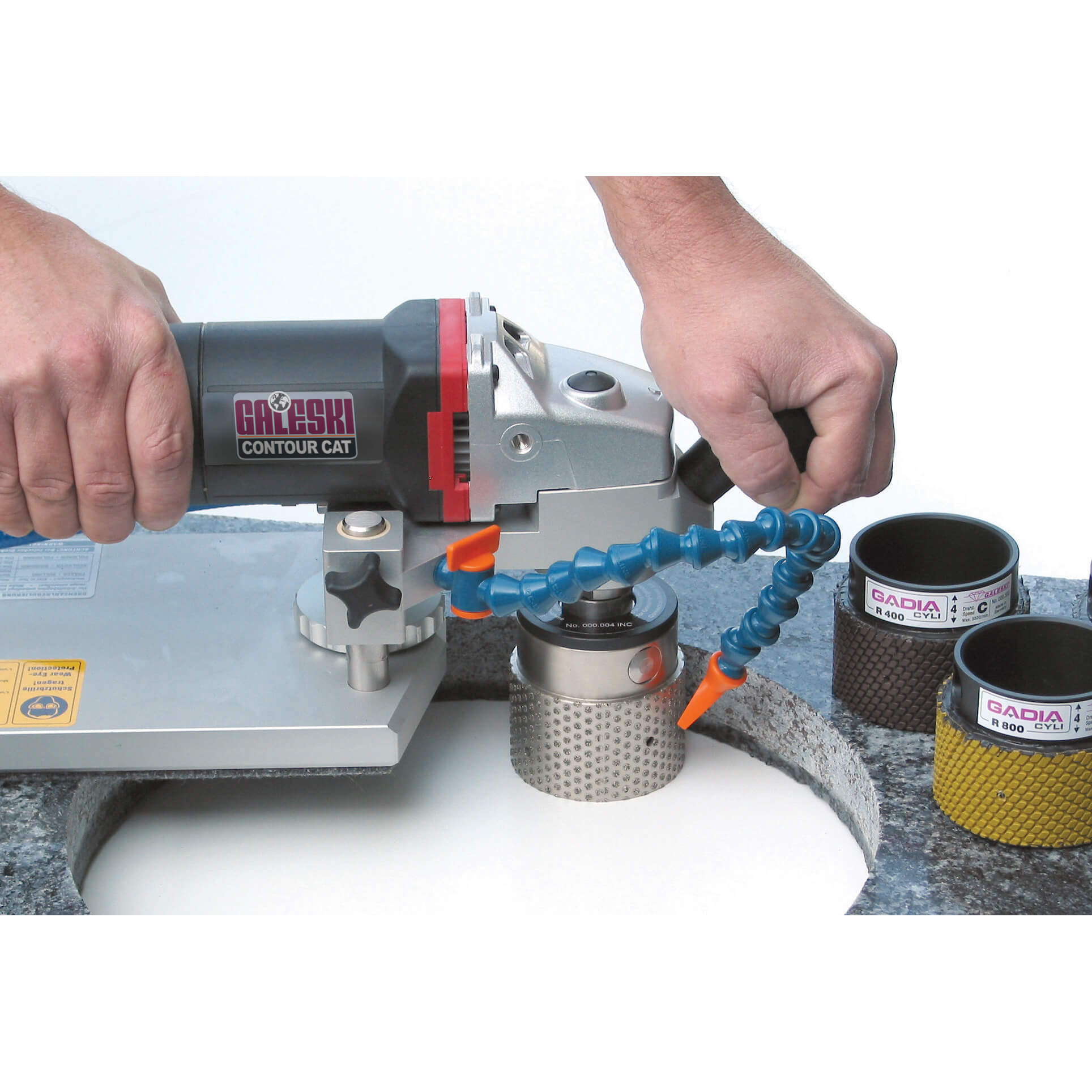

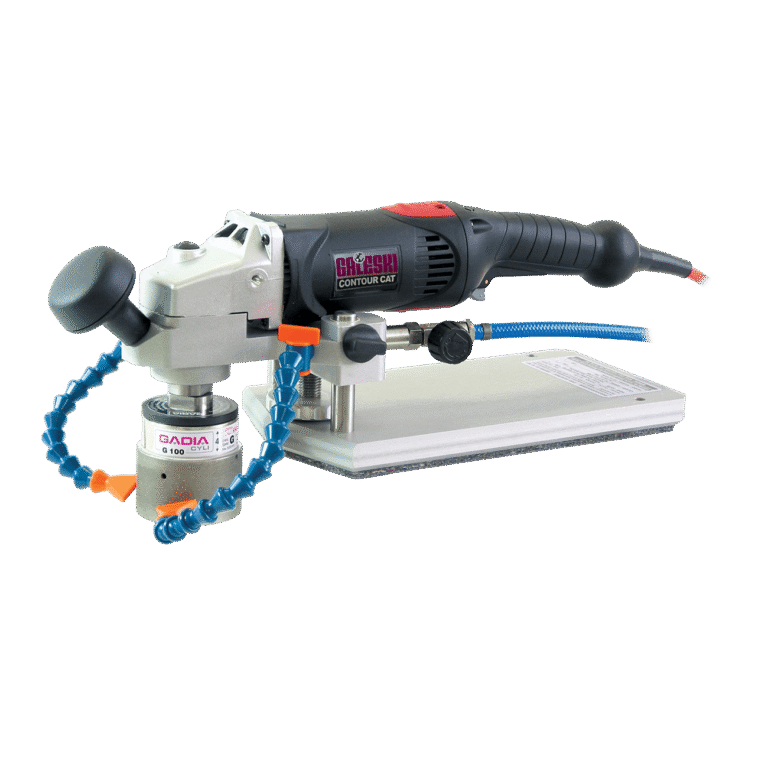

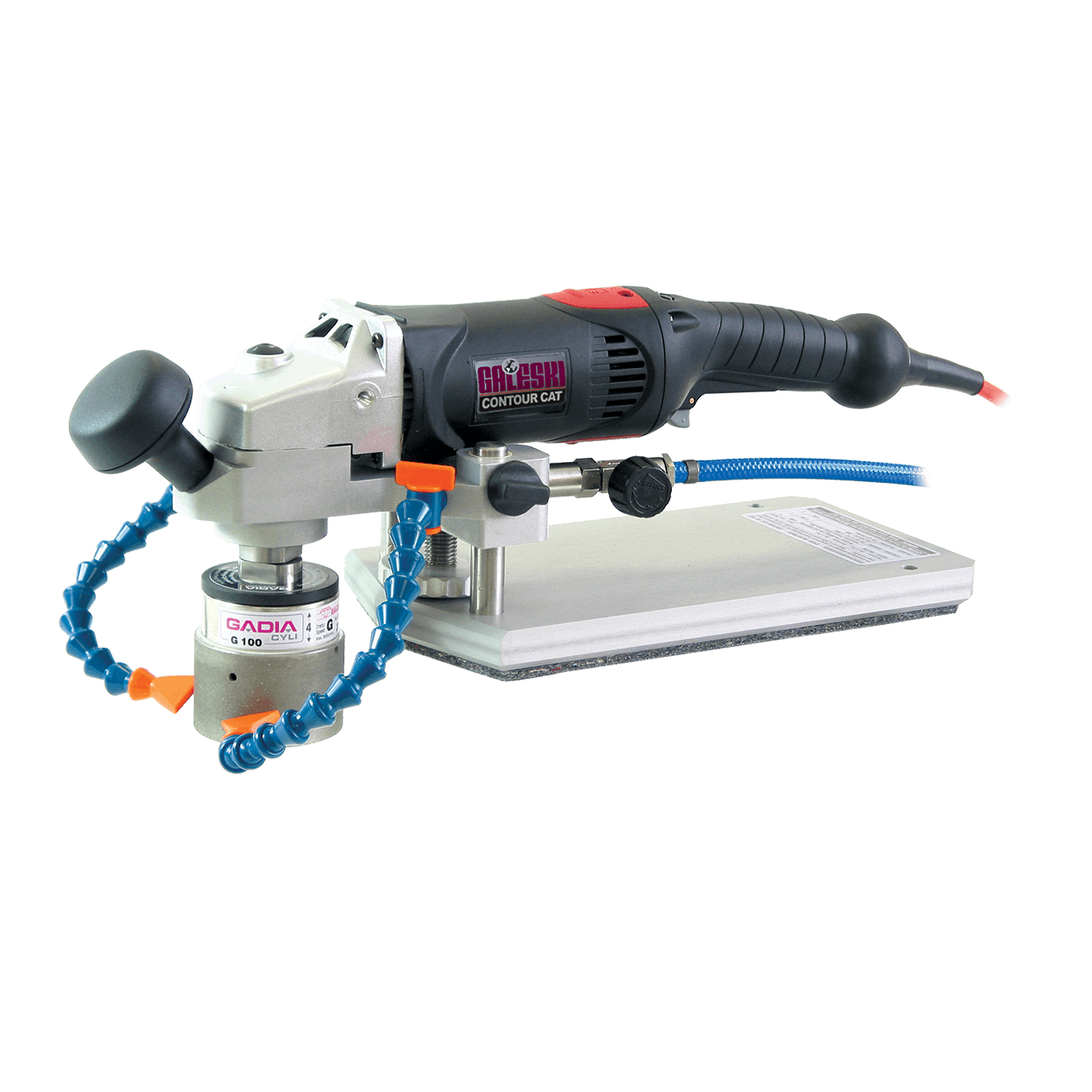

Contour Cat KS 80

The CONTOUR CAT KS 80 is a versatile stone edge processing system developed for maximum precision and perfect surfaces. The heavy, well-balanced base plate ensures steady guidance along the edge, while the powerful motor and the exact height adjustment allow a controlled milling, grinding and polishing result.

In combination with the patented GADIA OSCILLATOR, grinding and polishing additionally produces a vertical stroke that gives streak-free, high-quality visible edges. The internal and external water supply ensures optimal cooling and a clear view of the work area.

For stonemasons, kitchen fitters, tilers and restorers, the CONTOUR CAT KS 80 is a precise, robust and dependable system for demanding edge processing.

Voltage230 / 115 V
Spindle threadM14
Power1,750 W
Weight6.5 kg
Speed controlVariable (VARIO), 7 speed settings A–G
Speed1,700–6,800 rpm
Grinding height max.60 mm
Height adjustment max.25 mm
Tool Ø max.Profile cutter 118 mm / cutting disc 180 mm
  • 1 x base plate with felt on the underside and stepless height adjustment
  • 1 x internal water supply
  • 1 x external water supply with 2 jointed hoses and nozzle
  • 1 x water regulating valve
  • 1 x water hose 2.5 m with brass quick coupling
  • 1 x silicone mains cable 4 m, 1 x knob handle, 1 x PRCD safety switch or CEE plug
  • 1 x open-end spanner 24/27 mm
  • 1 x case

Spare parts Contour Cat KS 80

Click a number in the drawing – the part is marked in the list. 81 parts, ready to order. Applies to item no. 001.000.105 · 001.000.106 · 001.000.107 · 001.000.111.

Exploded view Contour Cat KS 80 with position numbers
Move the drawing sideways, tap a number
81 parts
Spare parts Contour Cat KS 80
Pos.PartPriceCart
1HandleItem no. 000.513

10,00 €

Add to cart
2Flat Spout2× installedItem no. 100.635B

10,00 €

Add to cart
3Water supply2× installedItem no. 100.635A

23,00 €

Add to cart
4Grub screw7× installedItem no. 100.107

1,70 €

Add to cart
5Machine HolderItem no. 100.702

441,00 €

Add to cart
6Cutoff Cock2× installedItem no. 100.633

18,00 €

Add to cart
7Locker for Height Adjustment2× installedItem no. 100.612

4,50 €

Add to cart
8Bushing4× installedItem no. 100.614

3,00 €

Add to cart
9Base plateItem no. 100.602

165,00 €

Add to cart
10Felt coveringItem no. 000.512

22,00 €

Add to cart
10aContour Cat Plastic Velcro PadItem no. 000.526not illustrated

28,00 €

Add to cart
11Speed informationItem no. 100.626not illustrated

3,10 €

Add to cart
12Bevel gear set (incl. Pos.42)Item no. 100.722

43,50 €

Add to cart
13distance washerItem no. 100.798

3,35 €

Add to cart
14SpindleItem no. 100.617

32,20 €

Add to cart
15BearingItem no. 101.145

41,00 €

Add to cart
16Washer 28x40x1Item no. 101.148

8,00 €

Add to cart
17Locking ringItem no. 101.149

10,30 €

Add to cart
18Oil seal 22x35x6Item no. 101.147

12,00 €

Add to cart
19Oil seal 22x32x6Item no. 101.146

11,00 €

Add to cart
20aTool holder M14Item no. 100.728

32,50 €

Add to cart
20bTool holder 5/8"Item no. 101.156

31,40 €

Add to cart
21SpacerItem no. 100.783

3,75 €

Add to cart
22Control valve complete (incl. Pos.23)Item no. 101.185

22,00 €

Add to cart
23Cover for Control valve 1/4"Item no. 101.185A

4,50 €

Add to cart
24Pipe connection R1/4" - Ø6Item no. 122.014.002

5,90 €

Add to cart
25Clamp2× installedItem no. 100.619

3,10 €

Add to cart
26Hose 2,5mItem no. 100.086

11,00 €

Add to cart
27Coupling complete (inkl. Pos.28)Item no. 100.620

10,30 €

Add to cart
28Sealing ring xItem no. 100.092

2,10 €

Add to cart
29Aqua-Stop (accessory)Item no. 100.621not illustrated

9,70 €

Add to cart
30Guide Rod2× installedItem no. 100.613

17,00 €

Add to cart
31Height AdjustmentItem no. 100.608

49,00 €

Add to cart
32Collar bushingItem no. 100.640

3,50 €

Add to cart
33WasherItem no. 100.610

5,00 €

Add to cart
34Screw3× installedItem no. 100.611

1,20 €

Add to cart
35Gear box complete (incl.Pos.36-39)Item no. 101.158

47,00 €

Add to cart
36Pressure buttonItem no. 100.681

1,10 €

Add to cart
37Pressure springItem no. 100.680

0,80 €

Add to cart
38Locking boltItem no. 100.679

5,40 €

Add to cart
39SleeveItem no. 100.718

4,00 €

Add to cart
40Screw4× installedItem no. 111.470.415

0,65 €

Add to cart
41nutItem no. 100.721

2,80 €

Add to cart
42Bevel gear set (incl. Pos.12)Item no. 100.722

43,50 €

Add to cart
43WasherItem no. DI013708VZ

0,30 €

Add to cart
44BearingItem no. 100.645

10,00 €

Add to cart
45Disc 0,5mmItem no. 100.682

1,30 €

Add to cart
46DiscItem no. 100.677

2,00 €

Add to cart
47Washer 0,3mmItem no. 100.724A

2,00 €

Add to cart
48Spring washerItem no. 100.678

2,00 €

Add to cart
49aArmature 230V complete (incl.Pos.50-52)Item no. 160.000.601

87,00 €

Add to cart
49bAmature 115V complete (incl.Pos.50-52)Item no. 160.000.606

111,30 €

Add to cart
50Isolating DiscItem no. 101.110

5,20 €

Add to cart
51BearingItem no. 101.108

9,00 €

Add to cart
52Magnetic discItem no. 100.703

7,00 €

Add to cart
53Bearing sleeveItem no. 100.655

2,95 €

Add to cart
54Air deflector ringItem no. 160.000.603

8,00 €

Add to cart
55aElectrical field 230VItem no. 160.000.602

70,00 €

Add to cart
55bElectrical field 115VItem no. 160.000.607

67,00 €

Add to cart
56HousingItem no. 100.738

23,50 €

Add to cart
57Brush holder2× installedItem no. 100.737

3,35 €

Add to cart
58aReplacement Carbon Brushes (Pair) - 230 VoltItem no. 100.637

8,90 €

Add to cart
58bReplacement Carbon Brushes (Pair) - 115 VoltItem no. 100.637B

13,00 €

Add to cart
59Cover2× installedItem no. 100.732

2,20 €

Add to cart
60Screw for cover 4x122× installedItem no. 100.766

0,60 €

Add to cart
61aElectronic VARIO (variable) 230VItem no. 160.000.604

47,10 €

Add to cart
61bElectronic VARIO (variable) 115VItem no. 100.745

51,00 €

Add to cart
62Switch handle VARIOItem no. 100.739

11,50 €

Add to cart
63Screw7× installedItem no. 101.460

1,50 €

Add to cart
64Cord clampItem no. 101.122

0,50 €

Add to cart
65Screw for cord clamp 4x92× installedItem no. 100.661

0,60 €

Add to cart
66Protection hoseItem no. 101.165

3,60 €

Add to cart
67SwitchItem no. 100.735

19,00 €

Add to cart
68PRCD-Switch 230 V 10mAItem no. 100.093

81,00 €

Add to cart
69Cord 2 pieces for PRCDItem no. 100.834

28,10 €

Add to cart
70CEE-Plug (o.Abb. / not illustrated)Item no. 000.519

28,00 €

Add to cart
71Connection cable (o.Abb. / not illustrated) 4,5mtrItem no. 100.455

35,60 €

Add to cart
72WasherItem no. 100.643

1,60 €

Add to cart
73Screw4× installedItem no. 100.716

1,30 €

Add to cart
74Grease 16gItem no. 024.415D

8,00 €

Add to cart
Case for Galeski Machines – Contour Cat KS 80Item no. 000.114not illustrated

89,00 €

Add to cart

Exploded view as of 01.04.2022 · Drawing and list as PDF · Spare parts search for all machines

Click a number: the part is marked in the list.

Frequently asked questions

What can the machine do?
Milling, grinding, polishing, profiling, groove milling and cutting at the stone edge – with just one machine.
Brushless or with carbon brushes?
The KS 80 works with a 1,750 W motor and speed control in 7 settings A–G. With a brushless motor without carbon brush wear, there is the CONTOUR CAT KS 80 BL.
How do the edges come out streak-free?
With the patented GADIA OSCILLATOR: it adds a vertical stroke movement when grinding and polishing.
PRCD or isolating transformer?
With the PRCD safety switch (DI) the machine works at any socket – for changing job sites. The version with CEE plug runs on the TT 2602 isolating transformer: galvanically isolated from the mains, for the workshop.

Product safety

Manufacturer: Galeski Manufaktur Innovative Maschinen - Peter Galeski e.K.
Boschstr. 4, 56457 Westerburg, Germany
info@galeski.de
Warnings and safety information:

For professional use by trained specialist personnel only.

Before first use, read the enclosed original operating instructions carefully and follow them.

Intended use: edge processing system (grinding, milling, polishing) for edges of washbasins, stairs, tables, counters and the like made of marble, granite and ceramics. Suitable only for operation with water supply – always open the water supply before switching on.

Personal protective equipment must be worn during operation: safety goggles and hearing protection; protective gloves, non-slip footwear and an apron are recommended.

Noise emission: sound pressure level 87 dB(A), sound power level 100 dB(A) – hearing protection required. Vibration: 7 m/s².

Dust produced when working stone (crystalline silica) is harmful to health. Material containing asbestos must not be worked.

As the machine is intended for wet use, it may only be operated with an isolating transformer or PRCD safety switch in accordance with the applicable regulations.

Not suitable for use by children.

For complete safety instructions, see the original operating instructions. General safety instructions as PDF (15 languages)
