Nass/Trocken
Art.-Nr. 003.036.645
Robuster Allround-Trennschneider für Nass- und Trockenschnitt – handlich, vibrationsarm und wirtschaftlich im professionellen Dauereinsatz.
Ab: 619,00 €
Gehört zu: Ecomax-Serie – Modelle vergleichen

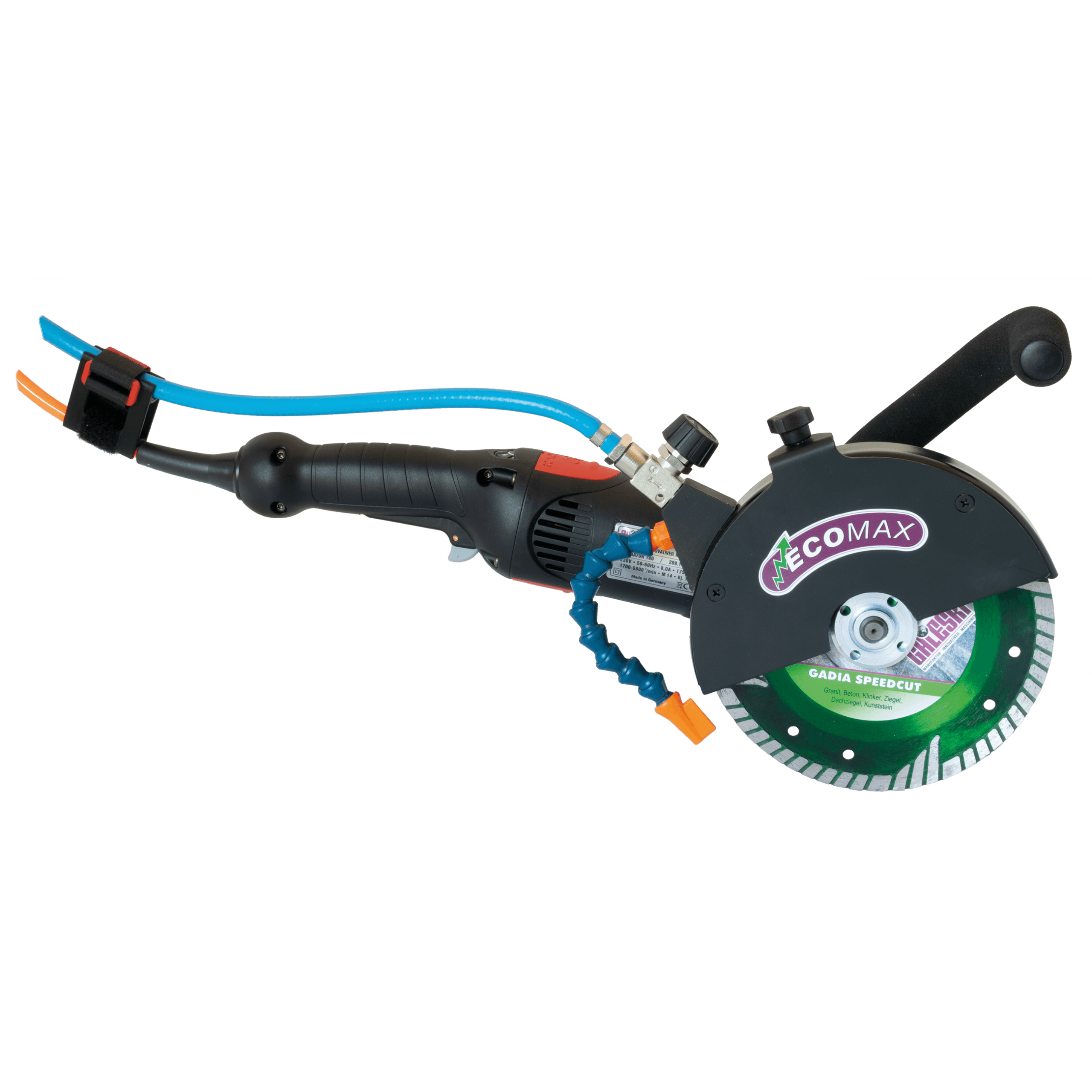

Der Ecomax 180 ist ein robuster Allround-Trennschneider für Nass- und Trockenschnitt auf Basis eines bewusst einfachen, kostengünstigen Aufbaus – ohne teure Sonderbauteile, aber mit erheblicher Ausstattung für effektives Arbeiten. Der große Spezial-Spannflansch schleudert Kühlwasser im Nassbetrieb zuverlässig weg und gibt der Trennscheibe zusätzliche Stabilität. Der Ergotec-Bügelhandgriff liegt angenehm und vibrationsarm in der Hand, sodass auch längere Arbeitseinsätze ermüdungsfrei möglich sind. Für Steinmetze, Bauunternehmer und alle, die einen zuverlässigen, wirtschaftlichen Trennschneider für den Dauereinsatz suchen, ist der Ecomax 180 eine bewährte Wahl.
| Leistung | 1.750 Watt |
|---|---|
| Spannung | 230 Volt (auch als 115 Volt erhältlich) |
| Betriebsart | Nass + Trocken |
| Drehzahlregelung | Variabel (VARIO), 7 Stufen A–G |
| Drehzahl | 1.700–6.800 1/min |
| Werkzeug-Ø max. | 180 mm |
| Schnitttiefe max. | 57 mm |
| Werkzeugaufnahme | M14 |
| Spindel-Bohrung | 22,2 mm |
| Griffart | Bügelhandgriff (Ergotec) |
| Gewicht | 4,6 kg |
Nummer in der Zeichnung anklicken – das Teil wird in der Liste markiert. 88 Teile, direkt bestellbar. Gilt für Art.-Nr. 003.036.644 · 003.036.645 · 003.036.646 · 003.036.647.


| Pos. | Teil | Preis | Warenkorb |
|---|---|---|---|
| 1 | Bügelgriff, komplett inkl. Pos. 2-6Art.-Nr. 060.036.147 | 59,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 2 | Moosgummi ÜberzugArt.-Nr. 101.197B | 8,25 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 3 | Bügelhandgriff, GrundkörperArt.-Nr. 150.001.022 | 34,75 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 4 | SchraubeArt.-Nr. 111.140.835 | 2,75 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 5 | EndkappeArt.-Nr. 101.197A | 2,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 6 | GriffhalterArt.-Nr. 150.001.014 | 17,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 7 | ArretierhebelsetArt.-Nr. 160.000.305 | 16,88 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 8 | Getriebekasten komplett inkl. Pos.9-12Art.-Nr. 101.158 | 47,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 9 | DrückerArt.-Nr. 100.681 | 1,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 10 | DruckfederArt.-Nr. 100.680 | 0,80 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 11 | ArretierbolzenArt.-Nr. 100.679 | 5,40 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 12 | NadelhülseArt.-Nr. 100.718 | 4,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 13 | MutterArt.-Nr. 100.721 | 2,80 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 14 | Kegelrad SetArt.-Nr. 100.722 | 43,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 15 | ScheibeArt.-Nr. DI013708VZ | 0,30 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 16 | Schraube4× verbautArt.-Nr. 111.470.415 | 0,65 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 17 | KugellagerArt.-Nr. 100.645 | 10,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 18 | ScheibeArt.-Nr. 100.682 | 1,30 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 19 | WellenscheibeArt.-Nr. 100.677 | 2,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 20 | ScheibeArt.-Nr. 100.724A | 2,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 21 | InnensicherungsringArt.-Nr. 100.678 | 2,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 22a | Anker 230V komplett inkl. Pos. 23-25Art.-Nr. 160.000.601 | 87,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 22b | Anker 115V komplett inkl. Pos. 23-25Art.-Nr. 160.000.606 | 111,30 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 23 | IsolierscheibeArt.-Nr. 101.110 | 5,20 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 24 | KugellagerArt.-Nr. 101.108 | 9,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 25 | MagnetscheibeArt.-Nr. 100.703 | 7,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 26 | LagerbuchseArt.-Nr. 100.655 | 2,95 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 27 | LuftführungsringArt.-Nr. 160.000.603 | 8,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 28a | Feld 230VArt.-Nr. 160.000.602 | 70,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 28b | Feld 115VArt.-Nr. 160.000.607 | 67,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 29 | MotorgehäuseArt.-Nr. 100.738 | 23,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 30 | Bürstenhalter2× verbautArt.-Nr. 100.737 | 3,35 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 31a | Kohlebürsten Ersatz (Paar) - 230 VoltArt.-Nr. 100.637 | 8,90 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 31b | Kohlebürsten Ersatz (Paar) - 115 VoltArt.-Nr. 100.637B | 13,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 32 | Deckel2× verbautArt.-Nr. 100.732 | 2,20 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 33 | Schrauben2× verbautArt.-Nr. 100.766 | 0,60 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 34a | Elektronik VARIO (regelbar) 230VArt.-Nr. 160.000.604 | 47,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 34b | Elektronik VARIO (regelbar) 115VArt.-Nr. 100.745 | 51,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 35 | SchalterArt.-Nr. 100.735 | 19,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 36 | Schaltergriff VARIOArt.-Nr. 100.739 | 11,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 37 | Schraube7× verbautArt.-Nr. 101.460 | 1,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 38 | Schraube Kabelschell2× verbautArt.-Nr. 100.661 | 0,60 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 39 | KabelschelleArt.-Nr. 101.122 | 0,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 40 | KabelschutzschlauchArt.-Nr. 101.165 | 3,60 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 41a | PRCD Schalter 230V komplett inkl. Pos.42a+43aArt.-Nr. 002.002 | 93,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 41b | PRCD Schalter 115V komplett inkl. Pos.42b+43bArt.-Nr. 002.002A | 134,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 42a | PRCD Schalter 230VArt.-Nr. 100.093 | 81,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 42b | PRCD Schalter 115VArt.-Nr. 100.094 | 78,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 43a | Anschlußl.+Schukostecker (2teilig) für PRCD 230VArt.-Nr. 100.834 | 28,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 43b | Anschlußl.+USA Stecker (2teilig) für PRCD 120VArt.-Nr. 100.944 | 28,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 44 | Kabel für CEE Stecker 4mArt.-Nr. 100.455 | 35,60 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 45a | 12 Uhr CEE Stecker für 230VArt.-Nr. 000.519 | 28,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 45b | 4 Uhr CEE Stecker für 115VArt.-Nr. 000.518 | 28,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 46 | ScheibeArt.-Nr. 100.742 | 1,20 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 47 | DistanzscheibeArt.-Nr. 100.798 | 3,35 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 48 | O-RingArt.-Nr. 100.749 | 2,90 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 49 | Lagerschild komplett inkl. Pos. 50Art.-Nr. 160.000.309 | 30,90 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 50 | KugellagerArt.-Nr. 100.887 | 14,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 51 | SpindelArt.-Nr. 100.740 | 22,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 52 | FederblechArt.-Nr. 160.000.310 | 3,75 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 53 | Schraube4× verbautArt.-Nr. 100.765 | 0,55 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 54 | Fettfüllung 16gArt.-Nr. 024.415D | 8,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 55 | Deckel komplett inkl. Pos. 56Art.-Nr. 150.009.006 | 35,70 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 56 | GriffschraubeArt.-Nr. 150.009.012 | 8,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 57 | FlanschmutterArt.-Nr. 100.754 | 7,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 58 | FlanschArt.-Nr. 150.009.002 | 36,75 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 59 | Schutzhaube komplettArt.-Nr. 150.009.014 | 114,45 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 60 | SchutzblechArt.-Nr. 150.009.017 | 26,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 61 | Schraube2× verbautArt.-Nr. 111.270.505 | 0,80 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 62 | WasserverteilerArt.-Nr. 150.009.010 | 43,80 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 63 | GewindenippelArt.-Nr. 100.635C | 5,20 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 64 | GliederschlauchArt.-Nr. 100.635G | 14,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 65 | DüseArt.-Nr. 100.635F | 8,90 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 66 | Regulierventil komplett inkl. Pos.67Art.-Nr. 101.185 | 22,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 67 | Kappe für RegulierventilArt.-Nr. 101.185A | 4,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 68 | SchlauchnippelArt.-Nr. 122.014.002 | 5,90 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 69 | Schelle2× verbautArt.-Nr. 100.619 | 3,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 70 | Schlauch 2,5mArt.-Nr. 100.086 | 11,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 71 | Kupplung komplett inkl. Pos. 72Art.-Nr. 100.620 | 10,30 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 72 | O-RingArt.-Nr. 100.092 | 2,10 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 73 | Schlauchverbinder komplett inkl. Pos.74+75Art.-Nr. 160.000.035 | 13,15 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 74 | Schlauchverbinder, GrundkörperArt.-Nr. 160.000.034 | 16,50 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 75 | KlettbandArt.-Nr. 160.000.031 | 5,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 76 | GADIA Splashguard – MittelArt.-Nr. 003.079 | 25,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 77 | SchlauchklemmeArt.-Nr. 119.000.003 | 5,85 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 78 | PVC SchürzeArt.-Nr. 003.101 | 14,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 79 | ZapfenschlüsselArt.-Nr. 000.082 | 6,00 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
| 80 | GegenhalterArt.-Nr. 150.002.117 | 9,15 € Zzgl. 19% MwSt., zzgl. Versand | In den Warenkorb |
Explosionszeichnung Stand 23.10.2023 · Zeichnung und Liste als PDF · Ersatzteilsuche für alle Maschinen
Nur für den professionellen Einsatz durch geschultes Fachpersonal bestimmt.
Vor Inbetriebnahme die beiliegende Originalbetriebsanleitung sorgfältig lesen und beachten.
Bestimmungsgemäße Verwendung: Trennen mineralischer Werkstoffe (z. B. Beton, Naturstein, Kunststein).
Beim Betrieb ist persönliche Schutzausrüstung zwingend zu tragen: Schutzbrille und Gehörschutz.
Geräuschemission: Schalldruckpegel 87 dB(A), Schallleistungspegel 100 dB(A) – Gehörschutz erforderlich. Vibration: 7 m/s².
Asbesthaltige Materialien dürfen mit dieser Maschine nicht bearbeitet werden.
Vollständige Sicherheitshinweise siehe Originalbetriebsanleitung. Allgemeine Sicherheitshinweise als PDF (15 Sprachen)
